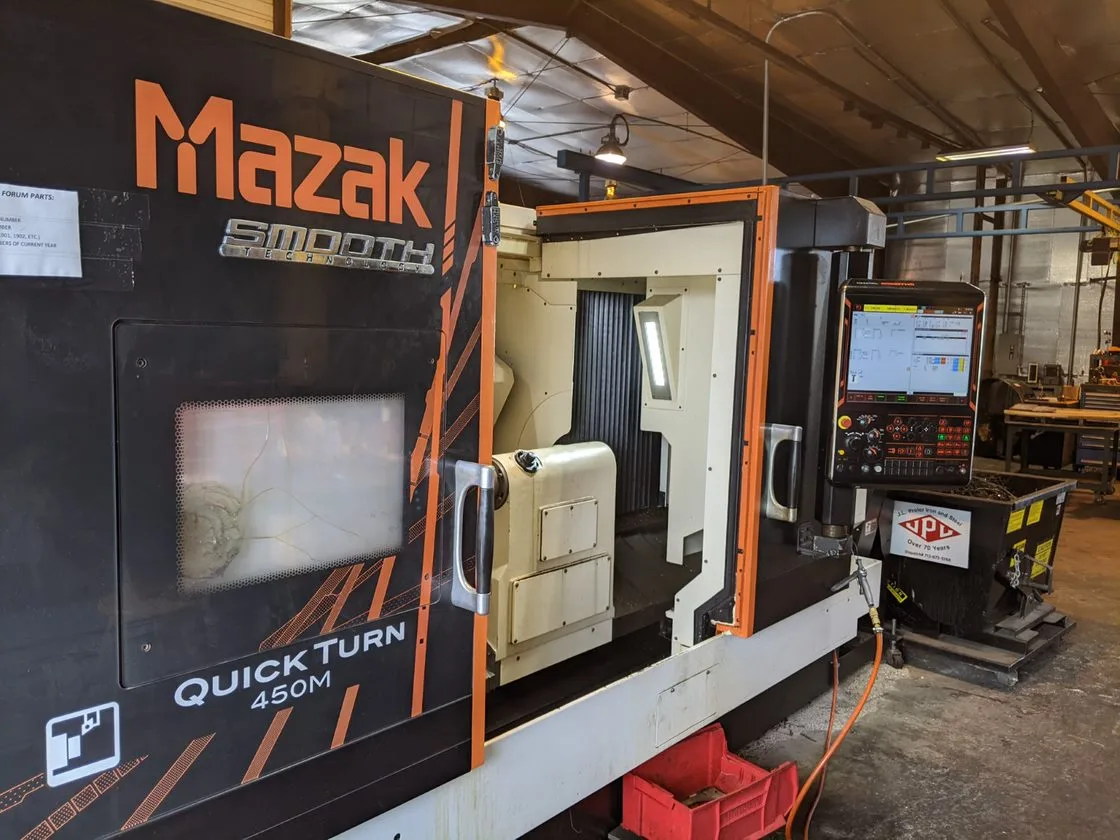

MAZAK QT 450M SMOOTH G/ 40"

SPECIFICATIONS:
MAXIMUM SWING                 33.268”
STANDARD MACHINING DIAMETER   13.228”
MAXIMUM MACHINING DIAMETER    22.83”
STANDARD BAR CAPACITY         7.2”
MAXIMUM SUPPORT WEIGHT
               (CHUCK/SHAFT)  3,968 LBS / 2,923 LBS
SPINDLE MOTOR (30MIN/CONT.)   50/40 HP
SPINDLE BORE                  7.28”
BAR CAPACITY                  6.5"
SPINDLE SPEED                 2,000 RPM
SPINDLE NOSE                  A2-15
NUMBER OF TOOLS               12
TOOL SIZE (OUTSIDE / INSIDE)  1.26” / 2.0”
TURRET INDEX TIME (ONE/FULL)  0.25 SEC/0.8 SEC
MILL SPINDLE MOTOR            10 HP
MILL SPINDLE SPEED            6,000 RPM
FEED AXIS TRAVEL (X/Z)        13.37” / 42.12”
FEED AXIS RAPID TRAVERSE (X/Z)1,181 / 1,181 IPM
TAILSTOCK TRAVEL              40.354”
TAILSTOCK CENTER              MT BUILT IN CENTER NO. 5
COOLANT TANK CAPACITY         11.3  GAL (US)
FLOOR SPACE                   182.76” X 94.92” X 80.41”
MACHINE WEIGHT                22,266 LBS.
