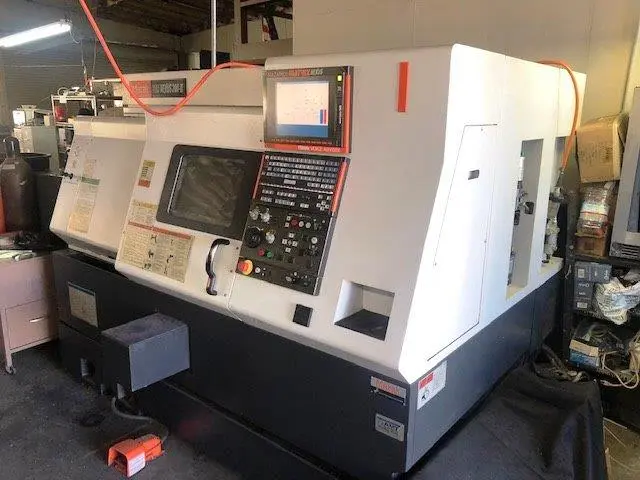

MAZAK QTN 200-II
Have one to sell?
ConditionUsed
1 available
THIS QTN 200 HAS AN 8" HYDRAULIC CHUCK, 20" CENTERS, TAILSTOCK AND MAZATROL MATRIX NEXUS CONTROL.
MAZAK QTN 200-II
NEW 2007
SPECIFICATIONS:
CHUCK SIZE 8" HYDRAULIC
MAXIMUM SWING 24"
SWING OVER CROSS SLIDE 14"
MAX CUTTING DIAMETER 14"
MAX MACHINING LENGTH 20.1"
MAX BAR CAPACITY 2.00"
X AXIS TRAVEL 7.5"
Z AXIS TRAVEL 21.125"
SPINDLE SPEED 5000 RPM
SPINDLE NOSE/ BORE A2-6 / 3.00"
TURRET TYPE DRUM 12 POSITION
RAPID TRAVERSE X/Z 1181/1299 IPM
SPINDLE MOTOR 30 MIN./
CONT. 35 HP / 30 HP
TAILSTOCK CENTER /
BODY TRAVEL MT #5 / 21.75"
MACHINE DIMENSIONS 99.6" X 70.1" X 72.4"
MACHINE WEIGHT 10,803 LBS.
EQUIPPED WITH:
MAZATROL MATRIX NEXUS CONTROL
HYDRAULIC CHUCK
AUTOMATIC TOOL EYE
FULLY PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
RS-232 INTERFACE
THIS QTN 200 HAS AN 8" HYDRAULIC CHUCK, 20" CENTERS, TAILSTOCK AND MAZATROL MATRIX NEXUS CONTROL.
Imperial
| Max. Swing | 24" |
| Max Turning Diameter | 14" |
| Spindle Bore/Max Bar Capacity | 3.0"/ 2.0" |
| Z Travel | 21.125" |
| X Travel | 7.5" |
| Machining Length | 20.1" |
| Chuck Size | 8" |
| Chuck Type | Hydraullic |
| Spindle Motor | 30 hp |
| Spindle Speeds (RPM) | 5000 |
| Spindle Bore/Bar Capacity | 3 in |
| Max. Bar Capacity | 2" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 99.6" X 70.1" X 72.4" |
| Weight | 10,803 LBS |
MAZAK QTN 200-II
NEW 2007
SPECIFICATIONS:
CHUCK SIZE 8" HYDRAULIC
MAXIMUM SWING 24"
SWING OVER CROSS SLIDE 14"
MAX CUTTING DIAMETER 14"
MAX MACHINING LENGTH 20.1"
MAX BAR CAPACITY 2.00"
X AXIS TRAVEL 7.5"
Z AXIS TRAVEL 21.125"
SPINDLE SPEED 5000 RPM
SPINDLE NOSE/ BORE A2-6 / 3.00"
TURRET TYPE DRUM 12 POSITION
RAPID TRAVERSE X/Z 1181/1299 IPM
SPINDLE MOTOR 30 MIN./
CONT. 35 HP / 30 HP
TAILSTOCK CENTER /
BODY TRAVEL MT #5 / 21.75"
MACHINE DIMENSIONS 99.6" X 70.1" X 72.4"
MACHINE WEIGHT 10,803 LBS.
EQUIPPED WITH:
MAZATROL MATRIX NEXUS CONTROL
HYDRAULIC CHUCK
AUTOMATIC TOOL EYE
FULLY PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
RS-232 INTERFACE
