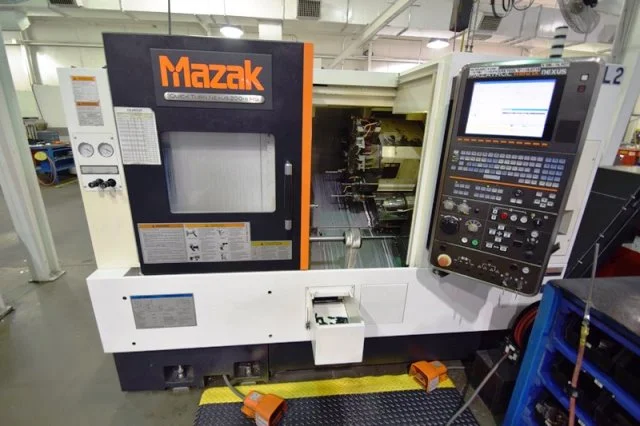

MAZAK QTN 200-II MS
Have one to sell?
ConditionUsed
1 available
THIS QTN 200MS HAS A MATRIX CONTROL, SYNCH TAP, FULL C-AXIS, AUTOMATIC PARTS CATCHER AND HIGH POWER COOLANT THRU SPINDLE.
SPECIFICATIONS:
MAXIMUM SWING 26.58"
MAXIMUM MACHINING DIAMETER 14.75" (ADJACENT TOOLS EMPTY)
MAXIMUM TURNING DISTANCE 22.875"
SPINDLE MOTOR 35 HP
STANDARD BAR CAPACITY 2"
SPINDLE SPEED 5,000 RPM
SPINDLE NOSE A2-6
SPINDLE BORE 3"
SECOND SPINDLE NOSE A2-5
SECOND SPINDLE BORE 2.07"
SECOND SPINDLE MAXIMUM RPM 6,000
SECOND SPINDLE POWER 15 HP
SECOND SPINDLE TORQUE 58 FT / LBS (20 MIN)
TURRET TYPE MODIFIED VDI DRUM
NUMBER OF TOOLS 12
MILL SPINDLE POWER HP 7.5 (10 MIN)
TURRET INDEX TIME (1 POSITION/FULL) 0.2/0.6 SEC
X-AXIS TRAVEL 9"
Z-AXIS TRAVEL 22.63"
RAPID TRAVERSE RATES X-AXIS 1181 1PM
RAPID TRAVERSE RATES Z-AXIS 1300 1PM
RAPID TRAVERSE RATE
SECOND SPINDLE 1181 IPM
TAILSTOCK CENTER MT#4
MACHINE HEIGHT 115.4" X 72.44"
FLOOR SPACE REQUIREMENT 104.9" X 70.07"
WEIGHT 11,243 LBS
MAZATROL MATRIX NEXUS CONTROL
USB I/F (2-PORT)
LAN PORT
USER MACRO (COMMON VARIABLES: 600 PAIRS)
SEQUENCE NUMBER COMPARISON STOP FUNCTION
CYLINDRICAL (G07) & POLAR COORDINATE (G12)
AUTOMATIC TOOL EYE
12 POSITION VDI TURRET
MILLING-SPINDLE SYNCHRONOUS TAPPING
C-AXIS 0.0001 DEGREE INCR. (1ST SPINDLE)
SEC. SPINDLE 15 HP / 6000 RPM
HIGH POWER COOLANT 118-PSI
ROYAL A2-5 ACCULENTH 16C COLLET CHUCK
AUTOMATIC PARTS CATCHER
CHIP CONVEYOR SIDE
10 KITAGAWA B210 CHUCK
BARFEED INTERFACE ONLY (LNS QUICK LOAD)
PART EJECTOR 2ND SPINDLE
THIS QTN 200MS HAS A MATRIX CONTROL, SYNCH TAP, FULL C-AXIS, AUTOMATIC PARTS CATCHER AND HIGH POWER COOLANT THRU SPINDLE.
Imperial
| Maximum Swing | 26.58" |
| Max Turning Diameter | 22.875" |
| Main Spindle Bore/Max Bar Capacity | 3.0/ 2.0 |
| Tail Stock/Sub Spindle | Sub Spindle |
| X-Axis Travel (X1, X2, X3) | 9 |
| Z-Axis Travel (Z1, Z2, Z3) | 22.63 |
| C-Axis Indexing (1, 2) | 0.0001 DEGREE |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3" |
| Main Spindle Maximum Bar Work | 2.07" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 15 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 2.07 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 7.5 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 104.9" X 70.07" |
| Weight | 11,243 LBS |
SPECIFICATIONS:
MAXIMUM SWING 26.58"
MAXIMUM MACHINING DIAMETER 14.75" (ADJACENT TOOLS EMPTY)
MAXIMUM TURNING DISTANCE 22.875"
SPINDLE MOTOR 35 HP
STANDARD BAR CAPACITY 2"
SPINDLE SPEED 5,000 RPM
SPINDLE NOSE A2-6
SPINDLE BORE 3"
SECOND SPINDLE NOSE A2-5
SECOND SPINDLE BORE 2.07"
SECOND SPINDLE MAXIMUM RPM 6,000
SECOND SPINDLE POWER 15 HP
SECOND SPINDLE TORQUE 58 FT / LBS (20 MIN)
TURRET TYPE MODIFIED VDI DRUM
NUMBER OF TOOLS 12
MILL SPINDLE POWER HP 7.5 (10 MIN)
TURRET INDEX TIME (1 POSITION/FULL) 0.2/0.6 SEC
X-AXIS TRAVEL 9"
Z-AXIS TRAVEL 22.63"
RAPID TRAVERSE RATES X-AXIS 1181 1PM
RAPID TRAVERSE RATES Z-AXIS 1300 1PM
RAPID TRAVERSE RATE
SECOND SPINDLE 1181 IPM
TAILSTOCK CENTER MT#4
MACHINE HEIGHT 115.4" X 72.44"
FLOOR SPACE REQUIREMENT 104.9" X 70.07"
WEIGHT 11,243 LBS
MAZATROL MATRIX NEXUS CONTROL
USB I/F (2-PORT)
LAN PORT
USER MACRO (COMMON VARIABLES: 600 PAIRS)
SEQUENCE NUMBER COMPARISON STOP FUNCTION
CYLINDRICAL (G07) & POLAR COORDINATE (G12)
AUTOMATIC TOOL EYE
12 POSITION VDI TURRET
MILLING-SPINDLE SYNCHRONOUS TAPPING
C-AXIS 0.0001 DEGREE INCR. (1ST SPINDLE)
SEC. SPINDLE 15 HP / 6000 RPM
HIGH POWER COOLANT 118-PSI
ROYAL A2-5 ACCULENTH 16C COLLET CHUCK
AUTOMATIC PARTS CATCHER
CHIP CONVEYOR SIDE
10 KITAGAWA B210 CHUCK
BARFEED INTERFACE ONLY (LNS QUICK LOAD)
PART EJECTOR 2ND SPINDLE
