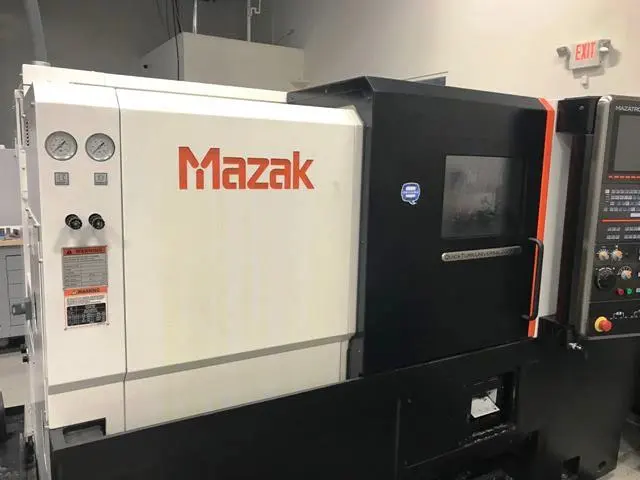

MAZAK QTN 200-II MSY
Have one to sell?
ConditionUsed
1 available
THIS 2016 QTN 200MSY HAS A MATRIX NEXUS CONTROL, 8" CHUCK WITH 2" BAR CAP FOR MAIN SPINDLE, 6" ON SUB, BARFEEDER, PARTS CATCHER AND 213 PSI COOLANT THRU.
SPECIFICATIONS:
DISTANCE BETWEEN SPINDLES 20"
CHUCK SIZE - MAIN SPINDLE 8
BAR CAPACITY 2
MAX TURNING DIAMETER 13.4
HORSEPOWER ON MAIN 20 HP
SPINDLE SPEED 4500 RPM
MILL SPINDLE HP/ RPM 5 HP/ 4500 RPM
NUMBER OF TOOLS 12
MACHINE WEIGHT 10,803 LBS.
MAZATROL MATRIX II CONTROL
8 THRU HOLE CHUCK PACKAGE FOR MAIN SPINDLE
6" CHUCK ON SUB
213 PSI COOLANT PRESSURE (HIGH PRESSURE)
AUTOMATIC TOOL EYE
TOOLING SIZE 1 FOR TURNING, 1.5 BORING BAR SIZE
AUTOMATIC PARTS CATCHER
LNS QUICK LOAD SERVO 80 BAR FEED SYSTEM
CHIP CONVEYOR
TWO LIVE HOLDERS (1) 90° THE OTHER (1)STRAIGHT
THIS 2016 QTN 200MSY HAS A MATRIX NEXUS CONTROL, 8" CHUCK WITH 2" BAR CAP FOR MAIN SPINDLE, 6" ON SUB, BARFEEDER, PARTS CATCHER AND 213 PSI COOLANT THRU.
Imperial
| Maximum Swing | 20" |
| Max Turning Diameter | 13.4" |
| Main Spindle Bore/Max Bar Capacity | 2.44/ 2.0 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 13.4" |
| Distance Between Spindles | 20" |
| X-Axis Travel (X1, X2, X3) | 9 |
| Z-Axis Travel (Z1, Z2, Z3) | 20 |
| Y-Axis Travel (Y1, Y2, Y3) | 4 |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.44" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 4,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 20 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 2.07 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 4,500 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 10 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 5 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Number of Available Live Tool Holders | 2 |
| Control | CNC (MAZATROL MATRIX NEXUS II) |
| Weight | 10,803 LBS |
SPECIFICATIONS:
DISTANCE BETWEEN SPINDLES 20"
CHUCK SIZE - MAIN SPINDLE 8
BAR CAPACITY 2
MAX TURNING DIAMETER 13.4
HORSEPOWER ON MAIN 20 HP
SPINDLE SPEED 4500 RPM
MILL SPINDLE HP/ RPM 5 HP/ 4500 RPM
NUMBER OF TOOLS 12
MACHINE WEIGHT 10,803 LBS.
MAZATROL MATRIX II CONTROL
8 THRU HOLE CHUCK PACKAGE FOR MAIN SPINDLE
6" CHUCK ON SUB
213 PSI COOLANT PRESSURE (HIGH PRESSURE)
AUTOMATIC TOOL EYE
TOOLING SIZE 1 FOR TURNING, 1.5 BORING BAR SIZE
AUTOMATIC PARTS CATCHER
LNS QUICK LOAD SERVO 80 BAR FEED SYSTEM
CHIP CONVEYOR
TWO LIVE HOLDERS (1) 90° THE OTHER (1)STRAIGHT
