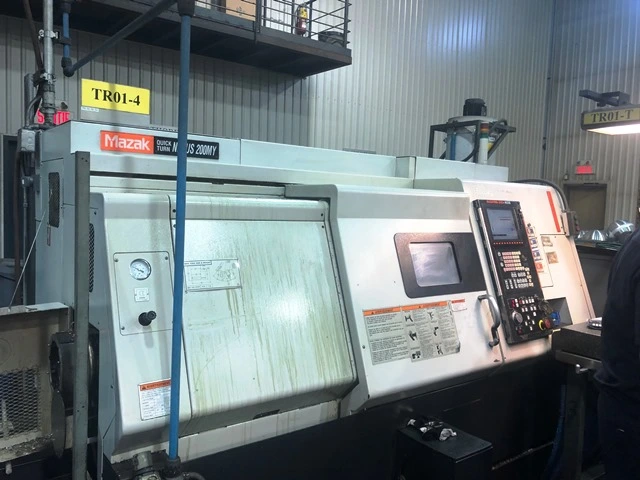

MAZAK QTN 200-II MY

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 200-II MY
Year:
2005
Stock #:
5296
Status:
For Sale
Serial #:
174320

Description

THIS QTN 200MY HAS A NEXUS 640T CONTROL, 8" CHUCK WITH 2.56" BAR CAP, PARTS CATCHER, AND TAILSTOCK.

Maximum Swing26.58"675.13 mm
Max Turning Diameter14.75"374.65 mm
Main Spindle Bore/Max Bar Capacity3.0/ 2.03.0/ 2.0
Tail Stock/Sub SpindleTail StockTail Stock
Maximum Swing Over Cross Slide14.75"374.65 mm
Maximum Cutting Length21.28"540.51 mm
X-Axis Travel (X1, X2, X3)9.059.05
Z-Axis Travel (Z1, Z2, Z3)22.6322.63
Y-Axis Travel (Y1, Y2, Y3)+/- 2"+/- 2"
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3"76.2 mm
Main Spindle Maximum Bar Work2.56"65.024 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3535
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 27.57.5
Parts CatcherYesYes
Chip ConveyorYesYes
ControlCNC (MAZATROL 640T NEXUS)CNC (MAZATROL 640T NEXUS)
Dimensions106.81" X 73.23" X 72.44106.81" X 73.23" X 72.44
Weight10,802 LBS10,802 LBS

MAZAK QTN 200MY
NEW 2005

SPECIFICATIONS:
CHUCK SIZE                   8"
MAXIMUM SWING                26.58"
STANDARD MACHINING DIAMETER  10.87"
MAXIMUM MACHINING DIAMETER   14.75"
MAXIMUM MACHINING LENGTH     21.28"
SPINDLE MOTOR                35 HP
STANDARD BAR CAPACITY        2.0"
SPINDLE SPEED                5,000
SPINDLE NOSE                 A2-6
SPINDLE BORE                 3"
TURRET TYPE                  MODIFIED VDI DRUM
NUMBER OF TOOLS              12
TOOL SIZE                    1" X 1" SQUARE
MILL SPINDLE POWER HP        7.5 (10 MIN)
TURRET INDEX TIME.           (1 POSITION / FULL) (0.2 / 0.6)
X-AXIS TRAVE                 9.05"
Z-AXIS TRAVEL                22.63"
Y-AXIS TRAVEL                +/- 2"
RAPID TRAVERSE RATES X-AXIS  1181 IPM
RAPID TRAVERSE RATES Z-AXIS  1300 IPM
RAPID TRAVERSE RATES Y-AXIS  826.8 IPM
TAILSTOCK CENTER             MT#5
MACHINE HEIGHT               72.44"
FLOOR SPACE REQUIREMENT      106.81" X 73.23"
WEIGHT                       10,802 LBS

EQUIPPED WITH:
MAZATROL 640T NEXUS CONTROL
AUTOMATIC PARTS CATCHER
(DIA. 2.52" X 4.7" X 5.5 LBS)
OPERATION END BUZZER
SIGNAL TOWER (3 COLORS LIGHTS)
AUTOMATIC CHUCK JAWS
OPEN/CLOSE
CHIP CONVEYOR SIDE
DISPOSAL(HINGE) 500U
V-TYPE MILLING HOLDER DIA.3/4"
ID (EY32)
H-TYPE MILLING HOLDER DIA.3/4"
ID (EY32)
TURNING HOLDER (SPINDLE
FORWARD)
BORING BAR HOLDER
8" THRU-HOLE CHUCK PACKAGE
LMC ZA6-8-66-B 2.598" BAR CAP
DELETE STANDARD CHUCK AND
CYLINDER
CD ROM OPTIMIZER
HIGH-POWER COOLANT  (1.1 KW)
EIA/ISO OPTION PACKAGE
8" THRU-HOLE CHUCK B-208A615
2.047" BAR CAPACITY
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS
