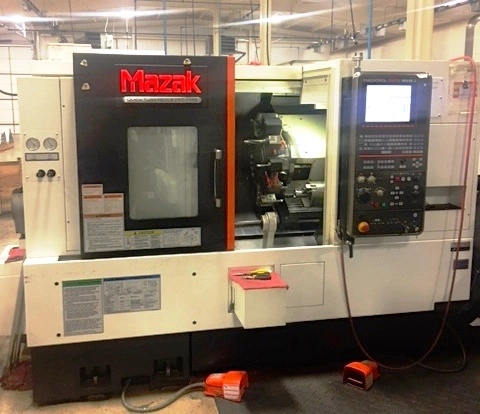

MAZAK QTN 250-II MS W/ LIVE TOOLING & SUB SPINDLE
Have one to sell?
ConditionUsed
1 available
THIS QTN 250MS HAS A MATRIX CONTROL, 10" & 6" KITAGAWA CHUCKS, LIVE TOOLING AND PARTS CATCHER.
SPECIFICATIONS:
MAX SWING OVER BED 26.5"
MAX MACHINING DIAMETER 14.7"
MAX MACHINING LENGTH 18.7"
X-AXIS TRAVELS 9"
Z-AXIS TRAVELS 22.6"
SPINDLE SPEED MAIN/ SUB 4,000 / 6,000 RPM
SPINDLE MOTOR 35/ 30 HP
SPINDLE BAR CAPACITY 3"
TURRET STATIONS 12 (ALL LIVE)
CHUCK SIZE MAIN / SUB 10" / 6"
MACHINE DIMENSIONS 115" L X 70" W X 72" H
MACHINE WEIGHT 11,5000 LBS
MAZAK MATRIX CNC CONTROL WITH 15 COLOR SCREEN
LIVE TOOLING
PC / MCIA INTERFACE
SUB SPINDLE W/ FULL C-AXIS
PARTS CATCHER
TOOL SETTER
10" KITAGAWA 3-JAW CHUCK / 6" KITAGAWA CHUCK ON SUB
CHIP CONVEYOR
RS-232 PORT
MULTIPLE PART PROGRAM
SOME I.D. & O.D. HOLDERS INCLUDED
THIS QTN 250MS HAS A MATRIX CONTROL, 10" & 6" KITAGAWA CHUCKS, LIVE TOOLING AND PARTS CATCHER.
Imperial
| Maximum Swing | 26.5" |
| Max Turning Diameter | 14.7" |
| Main Spindle Bore/Max Bar Capacity | 3.46/ 3.0 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 18.7" |
| X-Axis Travel (X1, X2, X3) | 9 |
| Z-Axis Travel (Z1, Z2, Z3) | 22.6 |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.46" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35/ 30 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 2.07 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 30 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 7.5 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| Control | CNC (MAZATROL MATRIX) |
| Dimensions | 115" X 70" X 72" |
| Weight | 11,5000 LBS |
SPECIFICATIONS:
MAX SWING OVER BED 26.5"
MAX MACHINING DIAMETER 14.7"
MAX MACHINING LENGTH 18.7"
X-AXIS TRAVELS 9"
Z-AXIS TRAVELS 22.6"
SPINDLE SPEED MAIN/ SUB 4,000 / 6,000 RPM
SPINDLE MOTOR 35/ 30 HP
SPINDLE BAR CAPACITY 3"
TURRET STATIONS 12 (ALL LIVE)
CHUCK SIZE MAIN / SUB 10" / 6"
MACHINE DIMENSIONS 115" L X 70" W X 72" H
MACHINE WEIGHT 11,5000 LBS
MAZAK MATRIX CNC CONTROL WITH 15 COLOR SCREEN
LIVE TOOLING
PC / MCIA INTERFACE
SUB SPINDLE W/ FULL C-AXIS
PARTS CATCHER
TOOL SETTER
10" KITAGAWA 3-JAW CHUCK / 6" KITAGAWA CHUCK ON SUB
CHIP CONVEYOR
RS-232 PORT
MULTIPLE PART PROGRAM
SOME I.D. & O.D. HOLDERS INCLUDED
