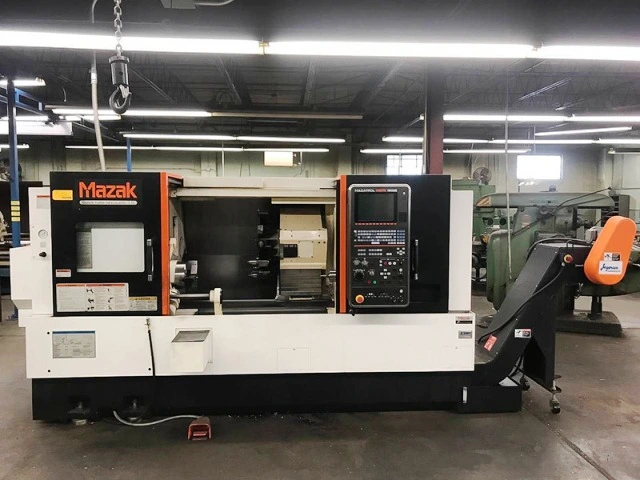

MAZAK QTN 250-II M
Have one to sell?
ConditionUsed
1 available
THIS 2013 QTN 250M HAS A MATRIX CONTROL, 10" HYDRAULIC CHUCK WITH 3" THRU HOLE, FULL C AXIS, AND PARTS CATCHER.
SPECIFICATIONS:
MAX. SWING 26.5"
SWING OVER CARRIAGE 13.78"
MAX. MACHINING DIA. 14.75"
MAX. MACHINING LENGTH 39.858""
BAR WORK CAPACITY 3.0"
X-AXIS TRAVEL 9"
Z-AXIS TRAVEL 42.5"
CHUCK SIZE 10"
SPINDLE SPEED 4000 RPM
NUMBER OF SPEED RANGES 1-STEPLESS
SPINDLE NOSE A2-8
SPINDLE BORE 3.46"
MAIN SPINDLE MOTOR 35/30HP
C-AXIS MAIN SPINDLE 0.0001 CONTOURING
TURRET TYPE 12 POSITION DRUM TURRET (VDI)
NUMBER OF TOOLS 12
TURNING TOOL SHANK 1"
BORING BAR SHANK DIAMETER 1-1/2"
ROTARY TOOL SPEED 4500 RPM
ROTARY TOOL SPINDLE MOTOR 7.5HP
RAPID TRAVERSE X/Z 1181/1299 IPM
TAILSTOCK STROKE 41.375"
TAILSTOCK TAPER MT#5
POWER REQUIREMENTS 41 kVA
APPROX. WEIGHT . 14,000 Lbs.
MAZATROL MATRIX NEXUS CONTROL
FULL C-AXIS
TOOL EYE
10" 3-JAW HYDRAULIC CHUCK
PARTS CATCHER
12 POSITION TURRET
TAILSTOCK
CHIP CONVEYOR
ALL AVAILABLE ROTARY TOOL HOLDERS
ALL AVAILABLE STATIC TOOL HOLDERS
ALL AVAILABLE MANUALS
THIS 2013 QTN 250M HAS A MATRIX CONTROL, 10" HYDRAULIC CHUCK WITH 3" THRU HOLE, FULL C AXIS, AND PARTS CATCHER.
Imperial
| Maximum Swing | 26.5" |
| Max Turning Diameter | 14.75" |
| Main Spindle Bore/Max Bar Capacity | 3.46/ 3.0 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 13.78" |
| Maximum Cutting Length | 39.86" |
| X-Axis Travel (X1, X2, X3) | 9 |
| Z-Axis Travel (Z1, Z2, Z3) | 42.5 |
| C-Axis Indexing (1, 2) | 0.0001 CONTOURING |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.46" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35/ 30 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 7.0 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Control | CNC (MAZATROL MATRIX NEXUS) |
SPECIFICATIONS:
MAX. SWING 26.5"
SWING OVER CARRIAGE 13.78"
MAX. MACHINING DIA. 14.75"
MAX. MACHINING LENGTH 39.858""
BAR WORK CAPACITY 3.0"
X-AXIS TRAVEL 9"
Z-AXIS TRAVEL 42.5"
CHUCK SIZE 10"
SPINDLE SPEED 4000 RPM
NUMBER OF SPEED RANGES 1-STEPLESS
SPINDLE NOSE A2-8
SPINDLE BORE 3.46"
MAIN SPINDLE MOTOR 35/30HP
C-AXIS MAIN SPINDLE 0.0001 CONTOURING
TURRET TYPE 12 POSITION DRUM TURRET (VDI)
NUMBER OF TOOLS 12
TURNING TOOL SHANK 1"
BORING BAR SHANK DIAMETER 1-1/2"
ROTARY TOOL SPEED 4500 RPM
ROTARY TOOL SPINDLE MOTOR 7.5HP
RAPID TRAVERSE X/Z 1181/1299 IPM
TAILSTOCK STROKE 41.375"
TAILSTOCK TAPER MT#5
POWER REQUIREMENTS 41 kVA
APPROX. WEIGHT . 14,000 Lbs.
MAZATROL MATRIX NEXUS CONTROL
FULL C-AXIS
TOOL EYE
10" 3-JAW HYDRAULIC CHUCK
PARTS CATCHER
12 POSITION TURRET
TAILSTOCK
CHIP CONVEYOR
ALL AVAILABLE ROTARY TOOL HOLDERS
ALL AVAILABLE STATIC TOOL HOLDERS
ALL AVAILABLE MANUALS
