MAZAK QTN 250-II W/ BAR FEEDER
Have one to sell?
ConditionUsed
1 available
THIS QTN 250 HAS A 10" HYDRAULIC CHUCK WITH 3" BAR CAP, MATRIX CONTROL, 213 PSI COOLANT THRU TAILSTOCK, BARFEEDER AND A 35HP/ 4000 RPM SPINDLE.
SPECIFICATIONS:
MAXIMUM SWING 24.02"
SWING OVER CARIAGE 13.78"
MAXIMUM MACHINING LENGTH 18.73"
X-AXIS TRAVEL 7.5"
Z-AXIS TRAVEL 20.25
CHUCK SIZE 10"
SPINDLE SPEED 4,000 RPM
SPINDLE NOSE A2-8
SPINDLE BORE / BAR CAPACITY 3.46" / 3.03"
TURRET 12 POSITIONS
FEED RATE (X/Z AXIS) 1,181 / 1,299 IPM
TAILSTOCK STROKE 20.63"
MAIN MOTOR 35 HP
MACHINE SIZE 104" X 70" X 73" TALL
APPRIXIMATE MACHINE WEIGHT 10,800 LBS
MAZATROL MATRIX NEXUS CNC CONTROL

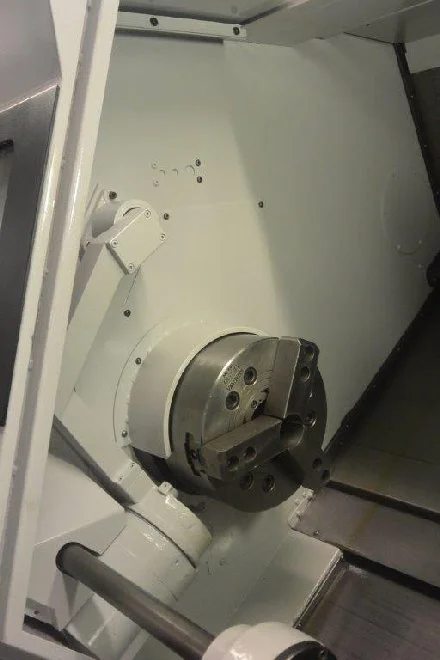

10" KITAGAWA 3-JAW CHUCK
PROGRAMABLE TAILSTOCK WITH LIVE CENTER
AUTOMATIC TOOL EYE
213 PSI COOLANT
PARTS CATCHER
LNS ECO-LOAD BAR FEEDER
CHIP CONVEYOR
ALL AVAILABLE MANUALS
THIS QTN 250 HAS A 10" HYDRAULIC CHUCK WITH 3" BAR CAP, MATRIX CONTROL, 213 PSI COOLANT THRU TAILSTOCK, BARFEEDER AND A 35HP/ 4000 RPM SPINDLE.
Imperial
| Max. Swing | 24.02" |
| Max Turning Diameter | 13.78" |
| Spindle Bore/Max Bar Capacity | 3.46" / 3.03" |
| Z Travel | 20.25" |
| X Travel | 7.5" |
| Machining Length | 18.73" |
| Chuck Size | 10" |
| Chuck Type | Hydraullic |
| Spindle Motor | 35 hp |
| Spindle Speeds (RPM) | 4000 |
| Spindle Bore/Bar Capacity | 3.46 in |
| Max. Bar Capacity | 3" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Parts Catcher | Yes |
| Bar Feed | Yes |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 104" X 70" X 73" |
| Weight | 10,800 LBS |
SPECIFICATIONS:
MAXIMUM SWING 24.02"
SWING OVER CARIAGE 13.78"
MAXIMUM MACHINING LENGTH 18.73"
X-AXIS TRAVEL 7.5"
Z-AXIS TRAVEL 20.25
CHUCK SIZE 10"
SPINDLE SPEED 4,000 RPM
SPINDLE NOSE A2-8
SPINDLE BORE / BAR CAPACITY 3.46" / 3.03"
TURRET 12 POSITIONS
FEED RATE (X/Z AXIS) 1,181 / 1,299 IPM
TAILSTOCK STROKE 20.63"
MAIN MOTOR 35 HP
MACHINE SIZE 104" X 70" X 73" TALL
APPRIXIMATE MACHINE WEIGHT 10,800 LBS
MAZATROL MATRIX NEXUS CNC CONTROL
10" KITAGAWA 3-JAW CHUCK
PROGRAMABLE TAILSTOCK WITH LIVE CENTER
AUTOMATIC TOOL EYE
213 PSI COOLANT
PARTS CATCHER
LNS ECO-LOAD BAR FEEDER
CHIP CONVEYOR
ALL AVAILABLE MANUALS
