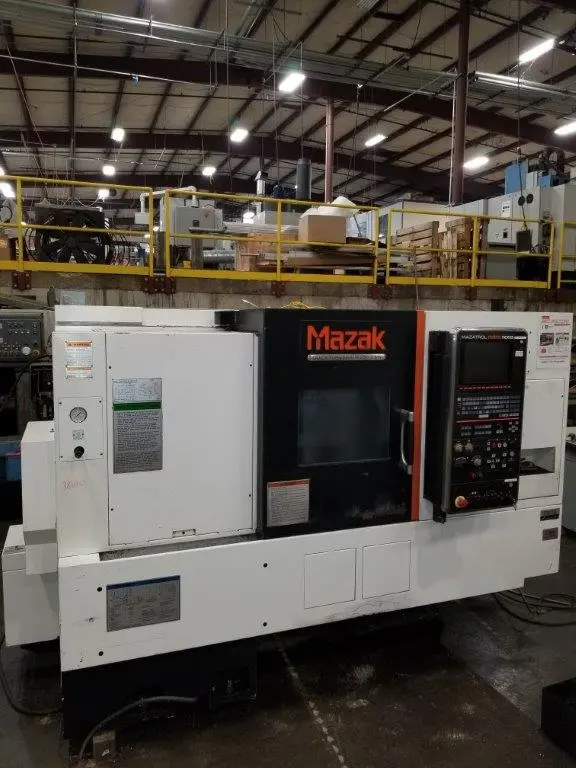

MAZAK QTN 250-II MY

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 250-II MY
Year:
2012
Stock #:
5676
Status:
For Sale
Serial #:
236703

Description

THIS QTN 250MY HAS A MATRIX CONTROL, 10" CHUCK, 3" THROUGH HOLE, 213 PSI COOLANT THRU, MILLING, Y-AXIS AND TAILSTOCK.

Maximum Swing27"685.8 mm
Max Turning Diameter20"508 mm
Main Spindle Bore/Max Bar Capacity3.46/ 3.033.46/ 3.03
Tail Stock/Sub SpindleTail StockTail Stock
Distance Between Spindles20"508 mm
X-Axis Travel (X1, X2, X3)99
Z-Axis Travel (Z1, Z2, Z3)2222
Y-Axis Travel (Y1, Y2, Y3)+/- 2+/- 2
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.46"87.884 mm
Main Spindle Maximum Bar Work3"76.2 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3535
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 27.57.5
Chip ConveyorYesYes
High Pressure Coolant System (PSI)213213
ControlCNC (MAZATROL MATRIX NEXUS)CNC (MAZATROL MATRIX NEXUS)

SPECIFICATIONS:DISTANCE BETWEEN CENTERS             20
MAX SWING OVER BED                   27
MAX TURNING / CUTTING LENGTH         20
MAX CUTTING / TURNING DIAMETER       15
X-TRAVEL                             9
Z-TRAVEL                             22
SPINDLE BORE                         4
BAR CAPACITY                         3.00
SPINDLE SPEED                        4,000 RPM
SPINDLE MOTOR                        35 HP
TURRET                               12 POSITION
LIVE MILLING MAX RPM                 4500 RPM

MATRIX NEXUS CNC CONTROL
TAILSTOCK
10 HYDRAULIC CHUCK
213 PSI HIGH-POWER COOLANT
