MAZAK QTN 350-II
Have one to sell?
ConditionUsed
1 available
THIS QTN 350 COMES WITH A KITAGAWA 15" HYDRAULIC CHUCK WITH A 4" THRU HOLE, 213 PSI COOLANT THRU, TAILSTOCK AND MAZATROL MATRIX 2 CONTROL.
SPECIFICATIONS:
MAXIMUM SWING 26.77"
STANDARD MACHINING DIA 10.39"
MAXIMUM MACHINING DIA 16.50"
MACHINING LENGTH 26"
SPINDLE MOTOR 40/30 MIN/CONT.
SPINDLE BORE 4.4"
BAR CAPACITY 4"
SPINDLE SPEED 2,500 RPM
SPINDLE NOSE A2-11
TURRET TYPE DRUM TURRET
NUMBER OF TOOLS 12
X-AXIS TRAVEL 8.85"
Z-AXIS TRAVEL 26
RAPID TRAVERSE RATES X-AXIS 1181 IPM
RAPID TRAVERSE RATES Z-AXIS 984 IPM
TAILSTOCK CENTER MT. NO.5
FLOOR SPACE 168" X 84" x 90"high
WEIGHT (EST) 16,500 LBS
MAZATROL MATRIX NEXUS 2 CONTROL
15 HYDRAULIC CHUCK B-215A11 WITH 4" HOLE
213 PSI COOLANT THRU
AUTO TOOL EYE
PROGRAMMABLE TAILSTOCK

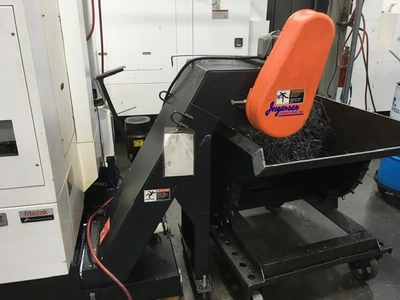

CHIP CONVEYOR SIDE
THIS QTN 350 COMES WITH A KITAGAWA 15" HYDRAULIC CHUCK WITH A 4" THRU HOLE, 213 PSI COOLANT THRU, TAILSTOCK AND MAZATROL MATRIX 2 CONTROL.
Imperial
| Max. Swing | 26.77" |
| Max Turning Diameter | 16.5" |
| Spindle Bore/Max Bar Capacity | 4.4"/ 4.0" |
| Z Travel | 26" |
| X Travel | 8.85" |
| Machining Length | 26" |
| Chuck Size | 15" |
| Chuck Type | Hydraullic |
| Spindle Motor | 40 hp |
| Spindle Speeds (RPM) | 2500 |
| Spindle Bore/Bar Capacity | 4.4 in |
| Max. Bar Capacity | 4" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| High Pressure Coolant System | 213 PSI |
| Chip Conveyor | Side |
| Control | CNC (MAZATROL MATRIX NEXUS 2) |
| Dimensions | 168" X 84" x 90" |
| Weight | 16,500 LBS |
SPECIFICATIONS:
MAXIMUM SWING 26.77"
STANDARD MACHINING DIA 10.39"
MAXIMUM MACHINING DIA 16.50"
MACHINING LENGTH 26"
SPINDLE MOTOR 40/30 MIN/CONT.
SPINDLE BORE 4.4"
BAR CAPACITY 4"
SPINDLE SPEED 2,500 RPM
SPINDLE NOSE A2-11
TURRET TYPE DRUM TURRET
NUMBER OF TOOLS 12
X-AXIS TRAVEL 8.85"
Z-AXIS TRAVEL 26
RAPID TRAVERSE RATES X-AXIS 1181 IPM
RAPID TRAVERSE RATES Z-AXIS 984 IPM
TAILSTOCK CENTER MT. NO.5
FLOOR SPACE 168" X 84" x 90"high
WEIGHT (EST) 16,500 LBS
MAZATROL MATRIX NEXUS 2 CONTROL
15 HYDRAULIC CHUCK B-215A11 WITH 4" HOLE
213 PSI COOLANT THRU
AUTO TOOL EYE
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR SIDE
