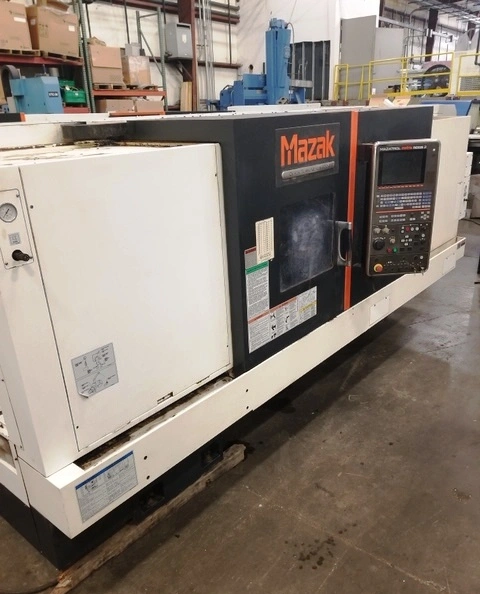

MAZAK QTN 400-II / 80"
Have one to sell?
ConditionUsed
1 available
THIS 2014 QTN 400 HAS 80" CENTERS, 15.75" AIR CHUCK WITH 5.19" SPINDLE BORE, HYDRAULIC STEADY REST AND MATRIX CONTROL.
SPECIFICATIONS:
CHUCK SIZE 15" SMW AUTOBLOK AIR CHUCK
MAXIMUM SWING 33.27"
MAX. MACHINING DIAMETER 22.80"
MAX. MACHINING LENGTH 81.69"
SPINDLE SPEED 2500 RPM
SPINDLE BORE 5.19"
SPINDLE NOSE A2-11
MAIN MOTOR 50 HP
TURRET POSITION 12 POSITIONS
X-AXIS TRAVEL 12.13"
Z-AXIS TRAVEL 83.50"
EQUIPPED WITH:
MAZATROL MATRIX NEXUS 2 CONTROL
15" SMW AUTOBLOK AIR CHUCK
12.1" COLOR LCD
USB I/F (2-PORT) LAN PORT
MT CONNECT PREPARATION (SOFTWARE UPGRADE TO SUPPORT)
USER MACRO (COMMON VARIABLES: 600 PAIRS)
EIA/ISO INPUT FUNCTION
SEQUENCE NUMBER COMfARISON STOP FUNCTION
ABSOLUTE POSITIONING SYS (N/A WITH S/F)
TOOL EYE (AUTOMATIC)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
12D/24 POSITION DRUM TURRET
50HP MAIN SPINDLE MOTOR AC (37KW, 50HP, 1760 FT*LBS)
SPINDLE SPEED 2500 RPM
SPINDLE BORE DIA.132MM (5.19"/ A2-11 NOSE)
PROGRAMMABLE TAILSTOCK (SEE NOTE)
ROLLER GUIDE
MAZAK STANDARD COLOR (FROST WHITE/ SATIN BLACK
OKUYAMA DESIGN
MULTITAP TRANSFORMER RELOCATION DEVICE
WINDOWS 7 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
HIGH-POWER COOLANT
CHIP CONVEYOR SIDE 2000U (80") (HINGE)
ADDITIONAL COOLANT NOZZLE (HEAD SIDE)
SMW SLU-X-3.2 STEADY REST COMPLETE PKG SINGLE/AUTO BASE RE-THREADING
THREAD START POINT COMPENSATION
SPLIT BORING BAR HOLDER 2"
QTN 400 DRUM TURRET
SMW AUTOBLOK BB-N-400-140 AIR CHUCK PKG INCLUDING SPINDLE ADAPTER, DISTRIBUTOR RING
MOUNTING BRACKET, AIR CONTROL UNIT, INSTALLATION BY AUTOBLOK AND MAZAK I/F
ONE SET OF MANUALS (CD)
STANDARD TOOLING PACKAGE
THIS 2014 QTN 400 HAS 80" CENTERS, 15.75" AIR CHUCK WITH 5.19" SPINDLE BORE, HYDRAULIC STEADY REST AND MATRIX CONTROL.
Imperial
| Max. Swing | 33.27" |
| Max Turning Diameter | 22.8" |
| Spindle Bore/Max Bar Capacity | 5.19"/ 5.19" |
| Z Travel | 83.5" |
| X Travel | 12.13" |
| Machining Length | 81.69" |
| Chuck Size | 15" |
| Chuck Type | Air |
| Spindle Motor | 50 hp |
| Spindle Speeds (RPM) | 2500 |
| Spindle Bore/Bar Capacity | 5.19 in |
| Max. Bar Capacity | 5.19" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| High Pressure Coolant System | YES |
| Steady Rest | Yes |
| Control | CNC (MAZATROL MATRIX NEXUS 2) |
SPECIFICATIONS:
CHUCK SIZE 15" SMW AUTOBLOK AIR CHUCK
MAXIMUM SWING 33.27"
MAX. MACHINING DIAMETER 22.80"
MAX. MACHINING LENGTH 81.69"
SPINDLE SPEED 2500 RPM
SPINDLE BORE 5.19"
SPINDLE NOSE A2-11
MAIN MOTOR 50 HP
TURRET POSITION 12 POSITIONS
X-AXIS TRAVEL 12.13"
Z-AXIS TRAVEL 83.50"
EQUIPPED WITH:
MAZATROL MATRIX NEXUS 2 CONTROL
15" SMW AUTOBLOK AIR CHUCK
12.1" COLOR LCD
USB I/F (2-PORT) LAN PORT
MT CONNECT PREPARATION (SOFTWARE UPGRADE TO SUPPORT)
USER MACRO (COMMON VARIABLES: 600 PAIRS)
EIA/ISO INPUT FUNCTION
SEQUENCE NUMBER COMfARISON STOP FUNCTION
ABSOLUTE POSITIONING SYS (N/A WITH S/F)
TOOL EYE (AUTOMATIC)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
12D/24 POSITION DRUM TURRET
50HP MAIN SPINDLE MOTOR AC (37KW, 50HP, 1760 FT*LBS)
SPINDLE SPEED 2500 RPM
SPINDLE BORE DIA.132MM (5.19"/ A2-11 NOSE)
PROGRAMMABLE TAILSTOCK (SEE NOTE)
ROLLER GUIDE
MAZAK STANDARD COLOR (FROST WHITE/ SATIN BLACK
OKUYAMA DESIGN
MULTITAP TRANSFORMER RELOCATION DEVICE
WINDOWS 7 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
HIGH-POWER COOLANT
CHIP CONVEYOR SIDE 2000U (80") (HINGE)
ADDITIONAL COOLANT NOZZLE (HEAD SIDE)
SMW SLU-X-3.2 STEADY REST COMPLETE PKG SINGLE/AUTO BASE RE-THREADING
THREAD START POINT COMPENSATION
SPLIT BORING BAR HOLDER 2"
QTN 400 DRUM TURRET
SMW AUTOBLOK BB-N-400-140 AIR CHUCK PKG INCLUDING SPINDLE ADAPTER, DISTRIBUTOR RING
MOUNTING BRACKET, AIR CONTROL UNIT, INSTALLATION BY AUTOBLOK AND MAZAK I/F
ONE SET OF MANUALS (CD)
STANDARD TOOLING PACKAGE
