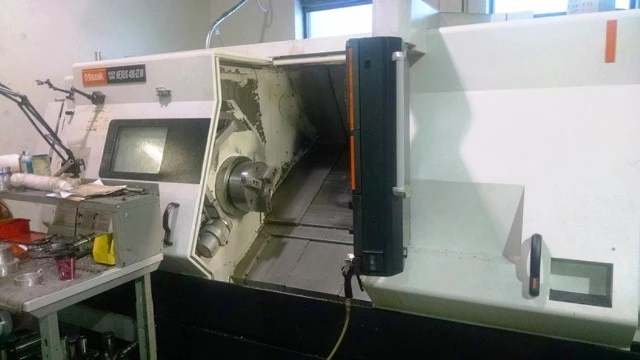

MAZAK QTN 400-II M CNC LATHE W/MILLING

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 400-II M
Year:
2010
Stock #:
4240
Status:
For Sale

Description

THIS QTN 400M HAS A MATRIX 2 CONTROL, 12" HYDRAULIC CHUCK WITH 4" BAR CAP, 213 PSI COOLANT THRU,
40" CENTERS AND TAILSTOCK.

Maximum Swing33.268"845.01 mm
Max Turning Diameter22.835"580.01 mm
Main Spindle Bore/Max Bar Capacity4.4/ 4.014.4/ 4.01
Tail Stock/Sub SpindleTail StockTail Stock
X-Axis Travel (X1, X2, X3)10.210.2
Z-Axis Travel (Z1, Z2, Z3)42.1242.12
C-Axis Indexing (1, 2).0001 DEGREE.0001 DEGREE
Main Spindle Chuck Size12"304.8 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter4.4"111.76 mm
Main Spindle Maximum Bar Work4.01"101.85 mm
Main Spindle Speed2,500 RPM2,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)50/ 4050/ 40
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 240004000
Turret Rotary Tool Horse Power 1, 21010
Chip ConveyorYesYes
High Pressure Coolant System (PSI)213213
ControlCNC (MAZATROL MATRIX NEXUS 2)CNC (MAZATROL MATRIX NEXUS 2)

SPECIFICATIONS:
MAXIMUM SWING                         33.268"
X-AXIS TRAVEL                         13.228"
Z-AXIS TRAVEL                         42.12"
STANDARD BAR CAPACITY                 4.016"
MAXIMUM SUPPORT WEIGHT (CHUCK/SHAFT)  2,205 LBS / 2,923 LBS
STANDARD CHUCK SIZE                   12"
SPINDLE MOTOR (30MIN / CONT)          50 / 40 HP
SPINDLE BORE                          5.197"
SPINDLE SPEED                         2,500 RPM
SPINDLE NOSE                          A2-11
NUMBER OF TOOLS                       12 POSITION VDI TURRET
TOOL SIZE (OUTSIDE/INSIDE)            1.26" / 2.0"
TURRET INDEX TIME (ONE/FULL)          0.25 SEC/ 0.8 SEC
MILL SPINDLE MOTOR                    10 HP
MILL SPINDLE SPEED                    4,000 RPM
C-AXIS                                0.0001 DEGREE INCREMENTS
TAILSTOCK TRAVEL                      40.354"
COOLANT TANK CAPACITY                 11.3 GAL. (US)

MATRIX NEXUS 2 CONTROL
KITAGAWA BB-212A11 W/ SS-2110 CYL. (4" CAP.)
C-AXIS 0.0001 DEGREE INCR
ABSOLUTE POSITIONING SYS (N/A WITH S/F
CHIP CONVEYOR SIDE EXIT 1000U (HINGE) 40"
213 PSI HIGH-POWER COOLANT 10GPM
SPLIT BORING BAR HOLDER 2" I.D FOR VDI TURRET -T99MCR90010
ALL AVAILABLE MANUALS
