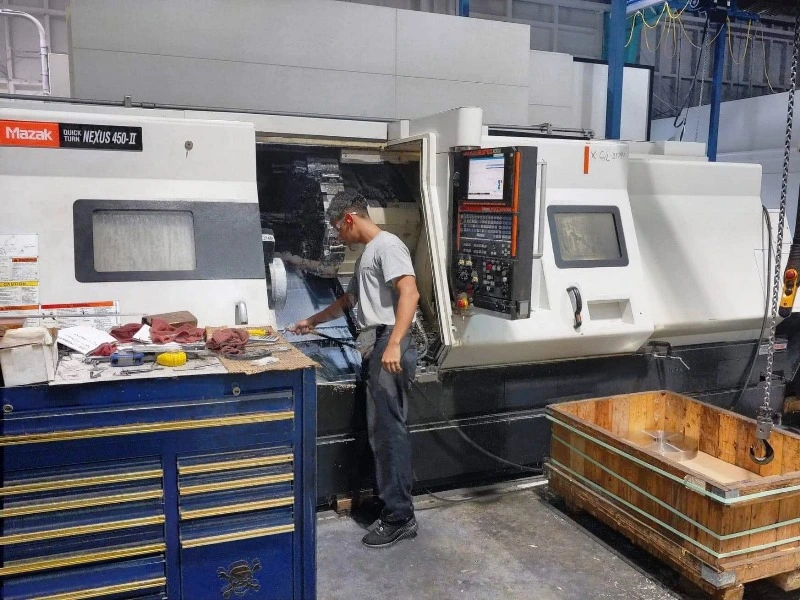

MAZAK QTN 450-II /2000 CNC UNIVERSAL TURNING CENTER
Have one to sell?
ConditionUsed
1 available
THIS MAZAK QTN 450 HAS 80" CENTERS, HYDRAULIC STEADY REST, 20" HYDRAULIC CHUCK WITH A 6.5" BAR CAP AND MAZATROL MATRIX CONTROL.
SPECIFICATIONS:
MAX. SWING DIAMETER 33.268"
MAX. CUTTING DIA. 22.835"
MAXIMUM DIAMETER OF SHAFT WORK 18.25"
MAXIMUM DISTANCE BETWEEN CENTERS 83.55"
SPINDLE HOLE 6.53"
SPINDLE NOSE A2-15"
SPINDLE SPEEDS 4-2000 RPM
TYPE OF TURRET 12 POSITION TURRET
RAPID TRAVERSE RATE X & Z 1181 IPM
X-AXIS STROKE/ Z-AXIS STROKE 13.375"/83.5"
TAILSTOCK CENTER MT NO. 5
TAILSTOCK QUILL DIAMETER 5"
TAILSTOCK TRAVEL 72.5"
TAILSTOCK TYPE HYD. N/C PROGRAMMABLE
MAIN MOTOR 40 HP AC
MACHINE WEIGHT 25,910 LBS.
MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
FULLY PROGRAMMABLE STEADY REST
INVERSE TIME
AUTO TOOL MEASUREMENT
PROGRAMMABLE TAISTOCK
20" 3 JAW HYDRAULIC CHUCK 6.5" THRU HOLE
TRANSFORMER
CHIP CONVEYOR
ALL MANUALS
THIS MAZAK QTN 450 HAS 80" CENTERS, HYDRAULIC STEADY REST, 20" HYDRAULIC CHUCK WITH A 6.5" BAR CAP AND MAZATROL MATRIX CONTROL.
Imperial
| Max. Swing | 33.27" |
| Max Turning Diameter | 22.835" |
| Spindle Bore/Max Bar Capacity | 7.23"/ 6.53" |
| Z Travel | 83.5" |
| X Travel | 13.38" |
| Machining Length | 83.55" |
| Chuck Size | 20" |
| Chuck Type | Hydraullic |
| Spindle Motor | 40 hp |
| Spindle Speeds (RPM) | 2000 |
| Spindle Bore/Bar Capacity | 7.2 in |
| Max. Bar Capacity | 6.53" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Steady Rest | Yes |
| Control | CNC (MAZATROL MATRIX) |
SPECIFICATIONS:
MAX. SWING DIAMETER 33.268"
MAX. CUTTING DIA. 22.835"
MAXIMUM DIAMETER OF SHAFT WORK 18.25"
MAXIMUM DISTANCE BETWEEN CENTERS 83.55"
SPINDLE HOLE 6.53"
SPINDLE NOSE A2-15"
SPINDLE SPEEDS 4-2000 RPM
TYPE OF TURRET 12 POSITION TURRET
RAPID TRAVERSE RATE X & Z 1181 IPM
X-AXIS STROKE/ Z-AXIS STROKE 13.375"/83.5"
TAILSTOCK CENTER MT NO. 5
TAILSTOCK QUILL DIAMETER 5"
TAILSTOCK TRAVEL 72.5"
TAILSTOCK TYPE HYD. N/C PROGRAMMABLE
MAIN MOTOR 40 HP AC
MACHINE WEIGHT 25,910 LBS.
MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
FULLY PROGRAMMABLE STEADY REST
INVERSE TIME
AUTO TOOL MEASUREMENT
PROGRAMMABLE TAISTOCK
20" 3 JAW HYDRAULIC CHUCK 6.5" THRU HOLE
TRANSFORMER
CHIP CONVEYOR
ALL MANUALS
