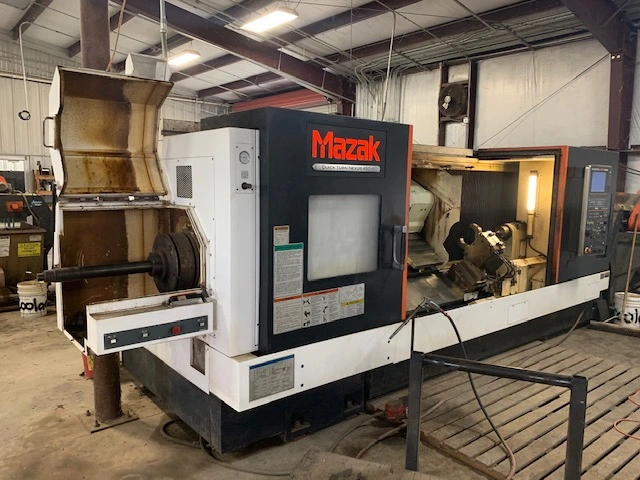

MAZAK QTN 450-II KY 80"/2000U
Have one to sell?
ConditionUsed
1 available
THIS QTN 450 WAS BORN FOR THE OIL FIELDS - 18.5" AIR CHUCK, 7.28" BORE, HYDRAULIC STEADY REST, TAILSTOCK AND MAZATROL MATRIX CONTROL.
SPECIFICATIONS:
SWING OVER BED 33.26"
TURNING DIAMETER, SHAFT DIAMETER 33.2", 22.8"
MACHINING LENGTH 83.5"
DISTANCE BETWEEN CENTERS 83.55"
SPINDLE NOSE A2 - 15
SPINDLE BORE DIAMETER 7.2"
SPINDLE BAR CAPACITY 7.2"
SPINDLE SPEEDS 2000 RPM
SPINDLE HORSEPOWER 40 HP
X - AXIS TRAVEL 13.37"
Z - AXIS TRAVEL 83.5"
RAPID TRAVERSE RATES 1181 IPM
RAPID TRAVERSE RATES 1299 IPM
TURRET CONFIGURATION 12
TAILSTOCK QUILL TAPER MT 5
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL 72.5"
MACHINE WEIGHT 25,910 LBS
MAZATROL MATRIX NEXUS CONTROL
12.1" COLOR LCD USB I/F (2-PORT) LAN PORT
MT CONNECT PREPARATION
USER MACRO (COMMON VARIABLES: 600 PAIRS)
EIA/ISO INPUT FUNCTION
SEQUENCE NUMBER COMPARISON STOP FUNCTION
ABSOLUTE POSITIONING SYS (N/A WITH S/F)
TOOL EYE (AUTOMATIC)
HIGH-POWER COOLANT (1.1 KW)(118 PSI, 16 GPM)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
12D/24 POSITION DRUM TURRET
S0 HP MAIN SPINDLE MOTOR AC (37KW, S0HP, 1760 FT*LBS)
SPINDLE BORE DIA.185MM (7.28")/2000RPM
MANUAL REAR CHUCK PREP A2-15 NOSE (SEE NOTE)
PROGRAMMABLE TAILSTOCK BUILT IN LIVE CENTER
MAZAK STANDARD COLOR (F WHITE/ S BLACK)
KEN OKUYAMA DESIGN
ROLLER GUIDE
MULTITAP TRANSFORMER RELOCATION DEVICE
WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
LNS-AUTOBLOK BB-N 470/191
AIR CHUCK PKG (FRONT MOUNT)
CHIP CONVEYOR SIDE 2000U (80")(HINGE)
RE-THREADING
THREAD START POINT COMPENSATION
SPLIT BORING BAR HOLDER 2"
QTN 450 DRUM TURRET
SMW STEADY REST PREPARATION SINGLE/AUTO
LNS/AUTOBLOK SUPPLIED SLU-X-3.1 STEADY
REST PKG (.787 11 -6.50" MAX CAP) INCLUDES MOUNTING BRACKET
AUTO OIL LUBRICATION SYSTEM HYDRULIC HOSE PKG &
INSTALLED AT MAZAK KY
STANDARD TOOLING PACKAGE
FOUNDATION KIT(PLATES)
ALL AVAILABLE MANUALS
