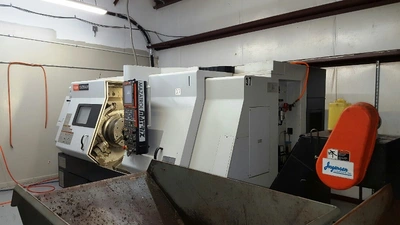

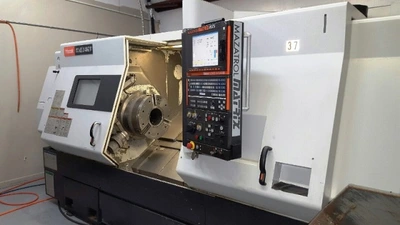

MAZAK QTN 450-II M /1000 CNC TURNING AND MILLING CENTER
Have one to sell?
ConditionUsed
1 available

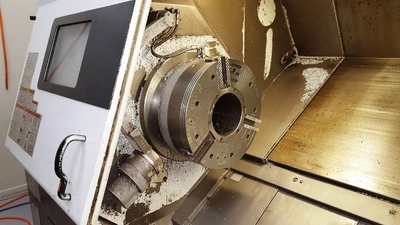

THIS QTN 450M HAS A MATRIX CONTROL, 21" AIR CHUCK WITH A 7.2" BORE, 118 PSI COOLANT THRU, 40" CENTERS AND TAILSTOCK.
SPECIFICATIONS:
MAX. SWING 33.27"
MAX. CUTTING DIAMETER 22.8"
MAX. CUTTING LENGTH 40.2"
SPINDLE NOSE A2-15"
SPINDLE BORE 7.2"
SPINDLE SPEEDS 2000 RPM
SPINDLE TORQUE 1761 FT-LBS.
ROTARY TOOL SPINDLE SPEED 4000 RPM
ROTARY TOOL HORSE POWER 10 HP
TURRET TYPE 12 POSITION
TURRET CLAMPING FORCE 11,700 LBS.
X AXIS TRAVELS 13.375"
Z AXIS TRAVELS 42.25"
.0001 N/C CONTOURING
RAPID TRAVERSE RATE X , Z 1181 IPM , 1299 IPM
C 555 RPM
TAILSTOCK CONTROL FULLY PROGRAMABLE
TAILSTOCK QUILL DIA. 3.94"
TAILSTOCK CENTER MT # 5
STROKE OF TAIL BODY 33.4"
MAIN MOTOR 50/40 HP AC
MACHINE WEIGHT 20,417 LBS

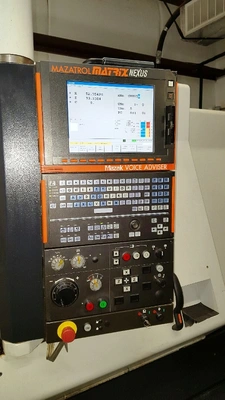

MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
EIA/ISO
USB PORT/ LAN & MODEM
THREADING
RE-THREAD
USER MACRO
SEQUENCE COMPARISON STOP
ABSOLUTE POSITIONING
HIGH POWER COOLANT 118 PSI
MILL SPINDLE SYNC. TAP.
TRANSFORMER
AUTOMATIC TOOL EYE
BACKGROUND PATH CHECK
REAR CHUCK PREP A2-15"
PROGRAMMABLE SERVO TAILSTOCK
3.5 FLOPPY DISC
ROTARY HEADS

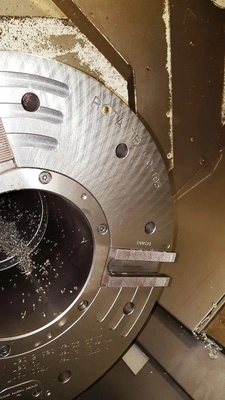

21" 3-JAW AIR CHUCK W/7.2" THRU HOLE

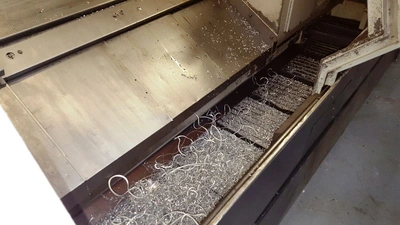

CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
