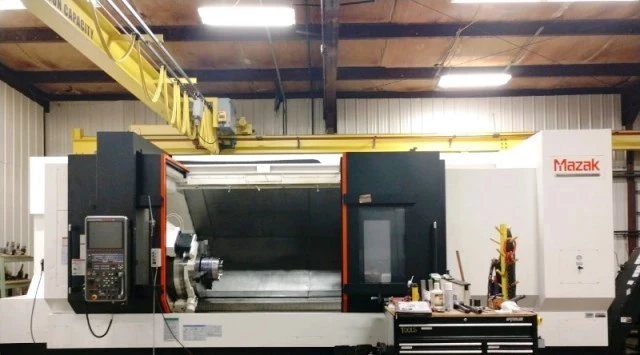

MAZAK QTN 550-II MY / 3000 (120") CNC TURNING CENTER
Have one to sell?
ConditionUsed
1 available
THIS QTN 550MY HAS A MATRIX 2 CONTROL, 120" CENTERS, 32" AIR CHUCK WITH A 13" SPINDLE BORE, LARGE BORING BAR STOCKER, STEADY REST AND 118 PSI COOLANT THRU.
MAZAK QTN 550MY/ 3000 (120") CNC TURNING CENTER
NEW 2015
SPECIFICATIONS
MAX SWING 46"
X-TRAVEL 23"
Z-TRAVEL 120"
DISTANCE BETWEEN CENTERS 120"
MAIN SPINDLE
BAR CAPACITY 12.50"
SPINDLE BORE 13"
CHUCK SIZE 32"
SPINDLE SPEED 750 RPM
SPINDLE MOTOR 80 HP
SUB SPINDLE
BORE 13"
SPINDLE NOSE A2-20
TURRET
TURRET TOOL POSITIONS 12
ROTARY TOOL MAX RPM 4000 RPM
ROTARY TOOL POWER 10 HP/70.1 FT-LBS
EQUIPPED WITH:
MAZATROL MATRIX 2 CONTROL
NEW SPINDLE FROM MAZAK
LARGE BORING BAR STOCKER OPTION ($70,000)
AUTOMATIC TOOL EYE (MAX CHUCK SIZE 32")
ROTARY TOOL SPEED 4000 RPM/95NM(70.1 FT-LBS)/10 HP
HINGE BELT CHIP CONVEYOR
AUTOMATIC STEADY REST PREP & INSTALLATION SMW K5.1-Z (3.94"-16.14" CAP) ($87,100)
3 JAW AIR CHUCK (MODEL TBD)
STEADY REST PREP
OVERLOAD DETECTION
RE-THREADING
THREAD START POINT
100MM ID BORING BAR HOLDER
MAZAK AIR CHUCK INTERFACE
ATS BP 800-375 SELF CONTAINED AIR CHUCK
JAW JOGGING AND OD/ID RECHARGE PACKAGE
ALL TOOLS FROM THE STANDARD TOOLING PACKAGE
EIA/ISO INPUT FUNCTION
AIR CHUCK INTERFACE
COOLANT PSI 118 PSI
CHIP CONVEYOR
