MAZAK QTS 100S

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MAZAK
Model:
QTS 100S
Year:
2014
Stock #:
4248
Status:
For Sale

Description

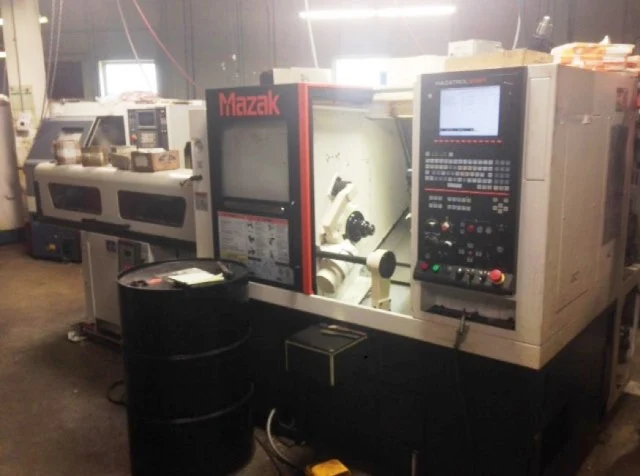

THIS WELL MAINTAINED 2014 QTS 100S IS EQUIPPED WITH MAZATROL SMART CONTROL, 6" 3-JAW HYDRAULIC CHUCK WITH 1.65" BAR CAP, PARTS CATCHER AND CHIP CONVEYOR (STILL IN CRATE!).

Max. Swing23"584.2 mm
Max Turning Diameter11"279.4 mm
Spindle Bore/Max Bar Capacity2.4"/ 1.65"2.4"/ 1.65"
Z Travel12"304.8 mm
X Travel7.87"199.9 mm
Machining Length12"304.8 mm
Chuck Size6"152.4 mm
Chuck TypeHydraullicHydraullic
Spindle Motor15 hp
Spindle Speeds (RPM)60006000
Spindle Bore2.4 in
Max. Bar Capacity1.65"41.91 mm
Turret Tool Positions1212
TailstockYesYes
Chip ConveyorYesYes
Parts CatcherYesYes
ControlCNC (MAZATROL SMART)CNC (MAZATROL SMART)

SPECIFICATIONS:
MAXIMUM SWING             23"
TURN DIAMETER             11"
MACHINING LENGTH          12"
SPINDLE BORE              2.4"
BAR CAPACITY              1.65"
CHUCK SIZE                6"
SPINDLE SPEED             6000 RPM
MAIN MOTOR                15 HP
TURRET POSITION           12D

MAZATROL SMART CONTROL
TAILSTOCK
TOOL EYE
6" 3 JAW
PARTS CATCHER
CHIP CONVEYOR, STILL IN CRATE
