MAZAK QTS 200
Have one to sell?
ConditionUsed
1 available

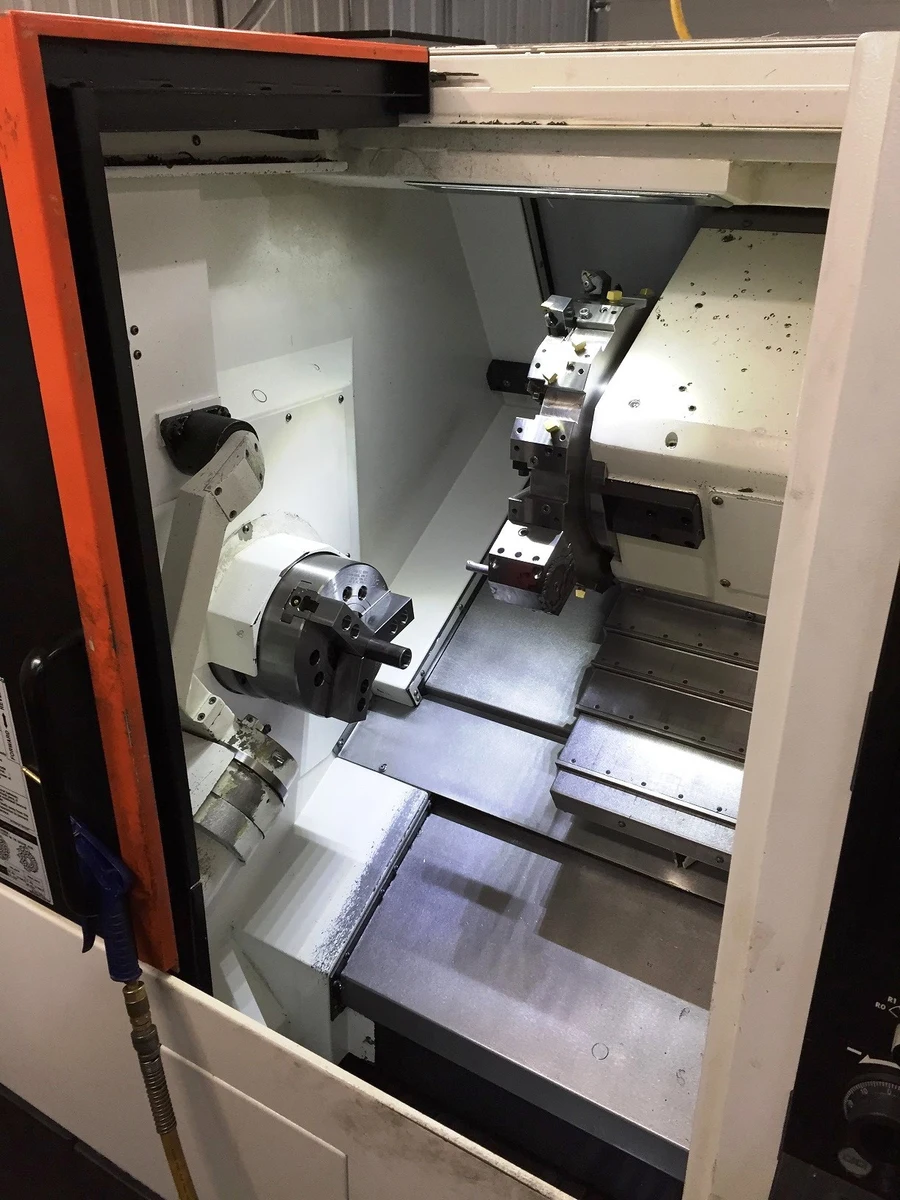

THIS 2013 QTS 200 HAS 21" BETWEEN CENTERS, 8" HYDRAULIC CHUCK WITH 2.5" BAR CAP, TAILSTOCK AND MAZATROL SMART CONTROL.
SPECIFICATIONS:
CHUCK SIZE 8"
MAX DIAMETER BAR CAPACITY 2.0"
MAX SWING OVER CROSS SLIDE 13.5"
MAX TURNING DIAMETER 14.0"
MAX MACHINING LENGTH 21.85"
TURRET 12 STATION
SPINDLE MOTOR 20 /15 HP
SPINDLE SPEED 5000 RPM
SPINDLE BORE 2.99"
SPINDLE NOSE A2-6
RAPID TRAVERSE RATES (X / Z) 1181/1299 IPM
X-AXIS TRAVEL 7.75"
Z-AXIS TRAVEL 22.0"
TURRET INDEX (SINGLE STEP) .17SEC/1 STEP
TAILSTOCK FULL AUTOMATIC
MACHINE DIMENSIONS (L X W X H) 103.5 X 66.1" X 66.9"
MACHINE WEIGHT 10, 362 LBS.
MAZATROL SMART CONTROL
8" 3-JAW HYDRAULIC CHUCK
PROGRAMMABLE TOOL EYE
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR (SIDE EXIT)
213 PSI
ALL AVAILABLE MANUALS
THIS 2013 QTS 200 HAS 21" BETWEEN CENTERS, 8" HYDRAULIC CHUCK WITH 2.5" BAR CAP, TAILSTOCK AND MAZATROL SMART CONTROL.
Imperial
| Max. Swing | 26" |
| Max Turning Diameter | 14" |
| Spindle Bore/Max Bar Capacity | 2.99"/ 2.0" |
| Z Travel | 21.85" |
| X Travel | 7.75" |
| Machining Length | 21.85" |
| Chuck Size | 8" |
| Chuck Type | Hydraullic |
| Spindle Motor | 20 hp |
| Spindle Speeds (RPM) | 5000 |
| Spindle Bore/Bar Capacity | 2.99 in |
| Max. Bar Capacity | 2" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| High Pressure Coolant System | 213 PSI |
| Chip Conveyor | Side |
| Control | CNC (MAZATROL SMART) |
| Dimensions | 103.5” X 66.1" X 66.9" |
| Weight | 10,362 LBS |
SPECIFICATIONS:
CHUCK SIZE 8"
MAX DIAMETER BAR CAPACITY 2.0"
MAX SWING OVER CROSS SLIDE 13.5"
MAX TURNING DIAMETER 14.0"
MAX MACHINING LENGTH 21.85"
TURRET 12 STATION
SPINDLE MOTOR 20 /15 HP
SPINDLE SPEED 5000 RPM
SPINDLE BORE 2.99"
SPINDLE NOSE A2-6
RAPID TRAVERSE RATES (X / Z) 1181/1299 IPM
X-AXIS TRAVEL 7.75"
Z-AXIS TRAVEL 22.0"
TURRET INDEX (SINGLE STEP) .17SEC/1 STEP
TAILSTOCK FULL AUTOMATIC
MACHINE DIMENSIONS (L X W X H) 103.5 X 66.1" X 66.9"
MACHINE WEIGHT 10, 362 LBS.
MAZATROL SMART CONTROL
8" 3-JAW HYDRAULIC CHUCK
PROGRAMMABLE TOOL EYE
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR (SIDE EXIT)
213 PSI
ALL AVAILABLE MANUALS
