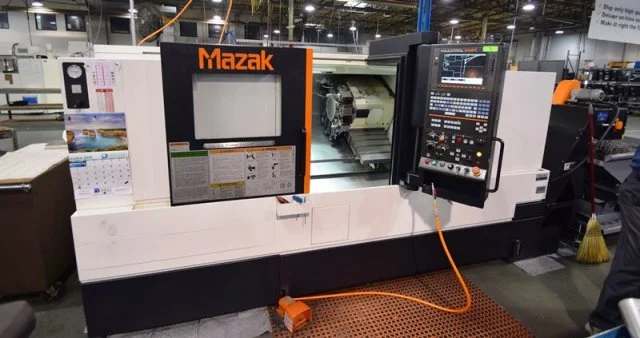

MAZAK QTS 250M
Have one to sell?
ConditionUsed
1 available
THIS QTS 250M COMES WITH A SMART CONTROL, FULL C AXIS SPINDLE ROTATION, 213 PSI COOLANT THRU, 10" CHUCK WITH 3" BAR CAP AND 40" CENTERS.
SPECIFICATIONS:
MAXIMUM SWING 26"
MAXIMUM TURNING DIAMETER 14.25"
MAXIMUM TURNING LENGTH 40.11"
MAXIMUM BAR CAPACITY 3.15"
X AXIS TRAVEL 8.86"
Z AXIS TRAVEL 44.25"
C AXIS INDEX INCREMENT .001 DEGREE
SPINDLE NOSE / SPINDLE BORE A2-8" / 3.58"
SPINDLE SPEED (1 RANGE) 4,000 RPM
SPINDLE MOTOR 35 HP
LIVE TOOL MOTOR / LIVE TOOL SPEEDS 7.5 HP / 4,500 RPM
NUMBER OF TURRET POSITIONS 12 POSITION TURRET
RAPID TRAVERSE RATES X / Z 1181 IPM / 1299 IPM
TAILSTOCK BODY TRAVEL 42.25"
TAILSTOCK QUILL DIAMETER / CENTER 3.94" / MT #5
MACHINE DIMENSIONS LXWXH 106.7" X 133.3" X 72"
MACHINE WEIGHT 13,228 LBS.
MAZATROL SMART CONTROL
FULL C AXIS SPINDLE ROTATION
MILLING/DRILLING/TAPPING CAPABILITY
SMW 10" KNCS-N 260/78 QUICK CHANGE 3 JAW HYDRAULIC CHUCK
PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
213 PSI HIGH POWER COOLANT
USB PORT INTERFACE
CHIP CONVEYOR
MULTI TAP TRANSFORMER
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS
THIS QTS 250M COMES WITH A SMART CONTROL, FULL C AXIS SPINDLE ROTATION, 213 PSI COOLANT THRU, 10" CHUCK WITH 3" BAR CAP AND 40" CENTERS.
Imperial
| Maximum Swing | 26" |
| Max Turning Diameter | 14.25" |
| Main Spindle Bore/Max Bar Capacity | 3.58/ 3.0 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Cutting Length | 40.11" |
| Distance Between Spindles | 44.25" |
| X-Axis Travel (X1, X2, X3) | 8.86 |
| Z-Axis Travel (Z1, Z2, Z3) | 44.25 |
| C-Axis Indexing (1, 2) | .001 DEGREE |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.58" |
| Main Spindle Maximum Bar Work | 3.1" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Control | CNC (MAZATROL SMART) |
| Dimensions | 106.7" X 133.3" X 72" |
| Weight | 13,228 LBS |
SPECIFICATIONS:
MAXIMUM SWING 26"
MAXIMUM TURNING DIAMETER 14.25"
MAXIMUM TURNING LENGTH 40.11"
MAXIMUM BAR CAPACITY 3.15"
X AXIS TRAVEL 8.86"
Z AXIS TRAVEL 44.25"
C AXIS INDEX INCREMENT .001 DEGREE
SPINDLE NOSE / SPINDLE BORE A2-8" / 3.58"
SPINDLE SPEED (1 RANGE) 4,000 RPM
SPINDLE MOTOR 35 HP
LIVE TOOL MOTOR / LIVE TOOL SPEEDS 7.5 HP / 4,500 RPM
NUMBER OF TURRET POSITIONS 12 POSITION TURRET
RAPID TRAVERSE RATES X / Z 1181 IPM / 1299 IPM
TAILSTOCK BODY TRAVEL 42.25"
TAILSTOCK QUILL DIAMETER / CENTER 3.94" / MT #5
MACHINE DIMENSIONS LXWXH 106.7" X 133.3" X 72"
MACHINE WEIGHT 13,228 LBS.
MAZATROL SMART CONTROL
FULL C AXIS SPINDLE ROTATION
MILLING/DRILLING/TAPPING CAPABILITY
SMW 10" KNCS-N 260/78 QUICK CHANGE 3 JAW HYDRAULIC CHUCK
PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
213 PSI HIGH POWER COOLANT
USB PORT INTERFACE
CHIP CONVEYOR
MULTI TAP TRANSFORMER
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS
