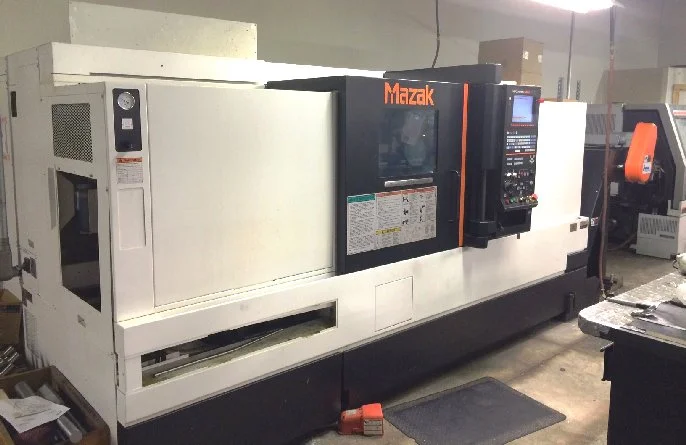

MAZAK QTS 300

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MAZAK
Model:
QTS 300
Year:
2012
Stock #:
4115
Status:
For Sale

Description

THIS QTS 300 COMES WITH A 10" HYDRAULIC CHUCK FOR UP TO 3" BAR WORK, 1000 PSI SUPER FLOW COOLANT THRU, TAILSTOCK AND A MAZATROL SMART CONTROL.

Max. Swing28.35"720.09 mm
Max Turning Diameter16.7"424.18 mm
Spindle Bore/Max Bar Capacity3.58"/ 3.15"3.58"/ 3.15"
Z Travel51.375"1,304.9 mm
X Travel9.375"238.12 mm
Machining Length50.23"1,275.8 mm
Chuck Size10"254 mm
Chuck TypeHydraullicHydraullic
Spindle Motor35 hp
Spindle Speeds (RPM)40004000
Spindle Bore3.58 in
Max. Bar Capacity3.15"80.01 mm
Turret Tool Positions1212
TailstockYesYes
High Pressure Coolant System1000 PSI1000 PSI
Chip ConveyorYesYes
ControlCNC (MAZATROL SMART)CNC (MAZATROL SMART)
Dimensions148.4" X 75.2" X 75"148.4" X 75.2" X 75"
Weight14,600 LBS14,600 LBS

SPECIFICATIONS:
MAXIMUM SWING                   28.35"
SWING OVER CROSS SLIDE          16.7"
MAXIMUM MACHINING LENGTH        50.23"
SPINDLE BORE/BAR WORK CAPACITY  3.58" / 3.15"
X-AXIS TRAVEL                   9.375"
Z-AXIS TRAVEL                   51.375"
CHUCK SIZE                      10"
TURRET TYPE                     12 POSITION DRUM TYPE
SPINDLE SPEEDS                  4,000 RPM
SPINDLE MOTOR                   35 HP
APPROXIMATE MACHINE SIZE        148.4" X 75.2" X 75" TALL
MACHINE WEIGHT                  14,600 LBS

MAZAK MAZATROL SMART CNC CONTROL
OPTIONAL 2MB TOTAL MEMORY (STANDARD IS 320KB)
1,000 PSI MAZAK SUPER FLOW S8 HIGH PRESSURE COOLANT
KITAGAWA B-210A8, 10" 3-JAW HYDRAULIC CHUCK
PROGRAMMABLE TAILSTOCK WITH BUILT IN LIVE CENTER
AUTOMATIC TOOL EYE
CHIP CONVEYOR
ALL AVAILABLE TOOL BLOCKS
