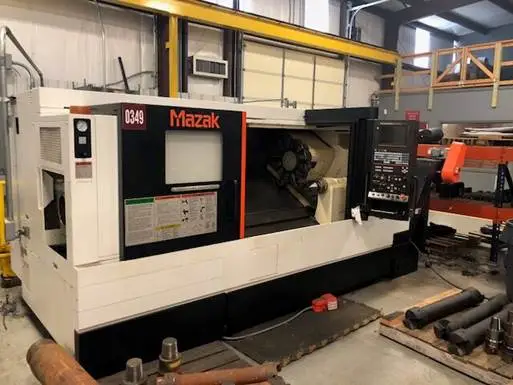

MAZAK QTS 350
Have one to sell?
ConditionUsed
1 available
THIS QTS 350 HAS A SMART CONTROL, 12" HYDRAULIC CHUCK WITH 4" BAR CAPACITY AND TAILATOCK.
SPECIFICATIONS:
CHUCK SIZE 12" HYDRAULIC CHUCK
MAXIMUM SWING 28.3"
MAXIMUM CUTTING DIAMETER 16.5"
MAX MACHINING LENGTH 48.5"
MAXIMUM BAR CAPACITY 4.0"
X-AXIS TRAVEL 9.375"
Z-AXIS TRAVEL 51.3"
SPINDLE NOSE / BORE A2-11" / 4.4"
SPINDLE SPEED 3,300 RPM
TURRET TYPE 12 STATION DRUM TURRET
SPINDLE MOTOR 40 HP
RAPID TRAVERSE RATES X/Z 1181 IPM / 1299 IPM
TAILSTOCK QUILL CENTER 3.94" / MT # 5
MACHINE DIMENSIONS LXW 150" X 75" X 75"
MACHINE WEIGHT 15,200 LBS
TAILSTOCK BODY TRAVEL 49.75"
EQUIPPED WITH:
MAZATROL SMART CNC CONTROL
12" HYDRAULIC CHUCK
CHIP CONVEYOR
TOOL PRESETTER
TAILSTOCK
THIS QTS 350 HAS A SMART CONTROL, 12" HYDRAULIC CHUCK WITH 4" BAR CAPACITY AND TAILATOCK.
Imperial
| Max. Swing | 28.3" |
| Max Turning Diameter | 16.5" |
| Spindle Bore/Max Bar Capacity | 4.4"/ 4.0" |
| Z Travel | 51.3" |
| X Travel | 9.375" |
| Machining Length | 48.5" |
| Chuck Size | 12" |
| Chuck Type | Hydraullic |
| Spindle Motor | 40 hp |
| Spindle Speeds (RPM) | 3300 |
| Spindle Bore/Bar Capacity | 4.4 in |
| Max. Bar Capacity | 4" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Control | CNC (MAZATROL SMART) |
| Dimensions | 150" X 75" X 75" |
| Weight | 15,200 LBS |
SPECIFICATIONS:
CHUCK SIZE 12" HYDRAULIC CHUCK
MAXIMUM SWING 28.3"
MAXIMUM CUTTING DIAMETER 16.5"
MAX MACHINING LENGTH 48.5"
MAXIMUM BAR CAPACITY 4.0"
X-AXIS TRAVEL 9.375"
Z-AXIS TRAVEL 51.3"
SPINDLE NOSE / BORE A2-11" / 4.4"
SPINDLE SPEED 3,300 RPM
TURRET TYPE 12 STATION DRUM TURRET
SPINDLE MOTOR 40 HP
RAPID TRAVERSE RATES X/Z 1181 IPM / 1299 IPM
TAILSTOCK QUILL CENTER 3.94" / MT # 5
MACHINE DIMENSIONS LXW 150" X 75" X 75"
MACHINE WEIGHT 15,200 LBS
TAILSTOCK BODY TRAVEL 49.75"
EQUIPPED WITH:
MAZATROL SMART CNC CONTROL
12" HYDRAULIC CHUCK
CHIP CONVEYOR
TOOL PRESETTER
TAILSTOCK
