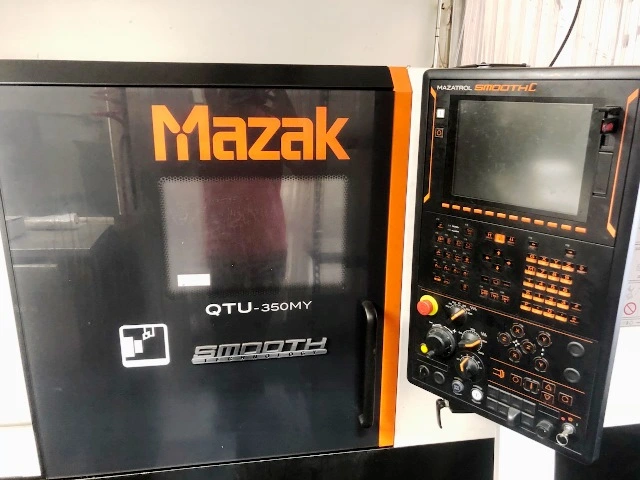

MAZAK QTU 350MY
Have one to sell?
ConditionUsed
1 available
THIS QTU 350MY HAS THE SMOOTH C CONTROL, 10" CHUCK, PARTS CATCHER, HIGH PRESSURE COOLANT, Y-AXIS, MILLING AND TAILSTOCK
MAZAK QTU 350MY
NEW 2017
SPECIFICATIONS:
CHUCK 10"
SWING 27.4"
BED 20"
MAX MACH DIAM 13.5"
RPM 3500
TURRET 12 STATION
CONTROL OPTIONS:
EIA
SPIRAL
EIA 3D COMP
ROTATION
GEOMETRIC SCALING
EXT DATA I/O
THREAD
INVERSE TIME
ATLM
POLAR COORDINATES INPUT
COMPARISON STOP
SYNC MILL TAPPING
600 VARIABLE OFFSETS
CYLINDER & POLAR COORDINATE INPUT
EIA HELICAL TAP AND PATTERN CYCLES
PITCH ERROR COMPENSATION
SEAMLESS CORNER CONTROL
VARIABLE ACC CONTROL
SUPER HIGH SPEED
RAPID OVERLAP
EQUIPPED WITH:
MAZATROL SMOOTH C CONTROL
PARTS CATCHER
HIGH PRESSURE COOLANT
Y AXIS - LIVE TOOLING
TOOLEYE
PROGRAMMABLE TAILSTOCK
JORGENSON CHIP CONVEYOR
ALL AVAILABLE MANUALS
THIS QTU 350MY HAS THE SMOOTH C CONTROL, 10" CHUCK, PARTS CATCHER, HIGH PRESSURE COOLANT, Y-AXIS, MILLING AND TAILSTOCK
Imperial
| Maximum Swing | 27.4" |
| Max Turning Diameter | 16.8" |
| Main Spindle Bore/Max Bar Capacity | 3.56/3.0 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Cutting Length | 20" |
| X-Axis Travel (X1, X2, X3) | 8.5 |
| Z-Axis Travel (Z1, Z2, Z3) | 20 |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 2 |
| C-Axis Indexing (1, 2) | YES |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 3,500 RPM |
| Turret Tool Positions 1, 2 | 12 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Control | CNC (MAZATROL SMOOTH C) |
MAZAK QTU 350MY
NEW 2017
SPECIFICATIONS:
CHUCK 10"
SWING 27.4"
BED 20"
MAX MACH DIAM 13.5"
RPM 3500
TURRET 12 STATION
CONTROL OPTIONS:
EIA
SPIRAL
EIA 3D COMP
ROTATION
GEOMETRIC SCALING
EXT DATA I/O
THREAD
INVERSE TIME
ATLM
POLAR COORDINATES INPUT
COMPARISON STOP
SYNC MILL TAPPING
600 VARIABLE OFFSETS
CYLINDER & POLAR COORDINATE INPUT
EIA HELICAL TAP AND PATTERN CYCLES
PITCH ERROR COMPENSATION
SEAMLESS CORNER CONTROL
VARIABLE ACC CONTROL
SUPER HIGH SPEED
RAPID OVERLAP
EQUIPPED WITH:
MAZATROL SMOOTH C CONTROL
PARTS CATCHER
HIGH PRESSURE COOLANT
Y AXIS - LIVE TOOLING
TOOLEYE
PROGRAMMABLE TAILSTOCK
JORGENSON CHIP CONVEYOR
ALL AVAILABLE MANUALS
