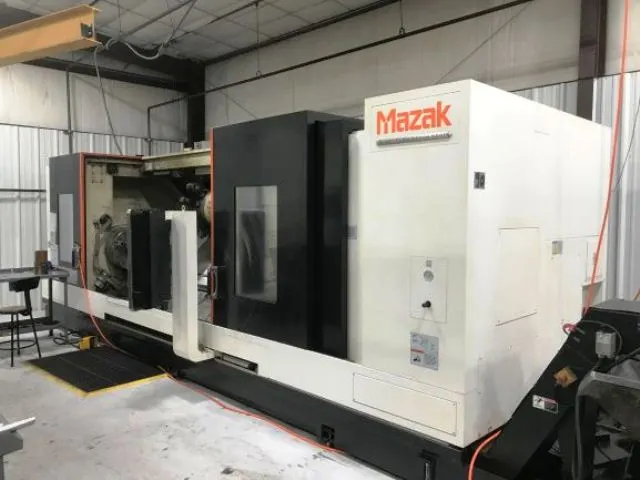

MAZAK SLANT TURN NEXUS 500M /3000U
Have one to sell?
ConditionUsed
1 available
THIS STN 500M HAS A MATRIX CONTROL, 126" CENTERS, 18" SCHUNK AIR CHUCK WITH A 7.28" SPINDLE BORE, AND HYDRAULIC STEADY REST.
SPECIFICATIONS:
SWING OVER BED 40.9"
TURNING DIAMETER, SHAFT DIAM 36"
MACHINING LENGTH 126.38"
DISTANCE BETWEEN CENTERS 126.38"
CHUCK SIZE 18" SCHUNK PNEUMATIC
SPINDLE NOSE A2 - 15
SPINDLE BORE DIAMETER 7.28"
SPINDLE SPEEDS 1600 RPM
SPINDLE HORSEPOWER 60 HP
SPINDLE TORQUE 5163 FT. - LBS.
X - AXIS TRAVEL 18.25"
Z - AXIS TRAVEL 129.875"
C - AXIS TRAVEL .001 DEGREE
RAPID TRAVERSE RATES 787 IPM
RAPID TRAVERSE RATES 945 IPM
TURRET CONFIGURATION 24
TURRET ROTARY TOOL SPIND RPM 4000 RPM
TURRET ROTARY TOOL HP 15 HP AC
TAILSTOCK QUILL DIAMETER 8"
TAILSTOCK TAPER MT 6
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL 126.75"
MACHINE WEIGHT 41,667 LBS.
MAZATROL MATRIX CNC CONTROL/ 12.1" COLOR MONITOR
M-T CONNECT
18" SCHUNK 500-230 AIR CHUCK SYSTEM
ABSOLUTE POSITIONING
AUTO TOOL LENGTH MEASUREMENT FOR 24" CHUCK
CHIP CONVEYOR
CHUCK OPEN CLOSE
COMPARISON STOP
EIA HELICAL TAP CYCLE
EIA PATTERN CYCLE
EIA/ISO PROGRAMMING
EXT-DATA I/O
FOOT PEDAL FOR HYDRAULIC OR AIR CHUCK
GEOMETRIC
HIGH PRESSURE COOLANT
HYD. PRESSURE INTERLOCK
INVERSE TIME
NETWORK INTERFACE
PITCH ERROR COMP.
POLAR COORDIANTE INPUT
PROGRAMMABLE STEADY REST BASE
PREP FOR SLU5. 1 SINGLE/AUTO WITH FLUSH COOLANT
SLU 5.2 HYDRAULIC PROGRAMMABLE STEADY
PROGRAMMABLE TAILSTOCK WITH BUILT IN MT #6
RE-THREAD
ROTATION
SCALING
SPIRAL
STARDARD TOOL PACKAGE WITH 3 ROTARY HEADS
THREAD CUT SPEED OVERRIDE
THREAD CUTTING FUNCTION
THREAD START POINT COMP.
TILTED WORKING PLANE
VARIABLE 600 SETS
ALL AVAILABLE MANUALS
