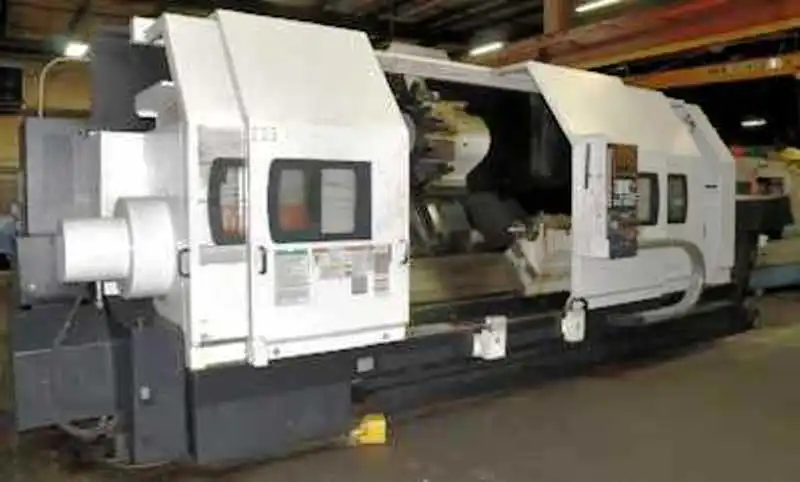

MAZAK SLANT TURN 50NX /3000U 12.5" BORE

SPECIFICATIONS:
MAX. SWING OVER BED          31.69"
MAX. SWING OVER CARRIAGE     22.05"
MAX. CUTTING DIAMETER        25.98"
DISTANCE BETWEEN CENTERS     129.41"
MAX. WORKPIECE LENGTH        119.29"
MAX. SUPPORTABLE WEIGHT
         (WITH CHUCK WEIGHT) 4409.2 LBS
TAILSTOCK DIAMETER TAPER     5.9"
MAX. CUTTING LOAD            1763.68 LBS
SPINDLE SPEEDS, 3 RANGES     2-750 RPM
SPINDLE BORE                 12.5"
SPINDLE DRIVE MOTOR          50HP
TRAVEL X-AXIS                22.64"
TRAVEL Z-AXIS                122.24"
RAPID TRAVERSE X-AXIS        472.4 IPM
RAPID TRAVERSE Z-AXIS        551.18 IPM
APPROX. WEIGHT               33,470 LBS
