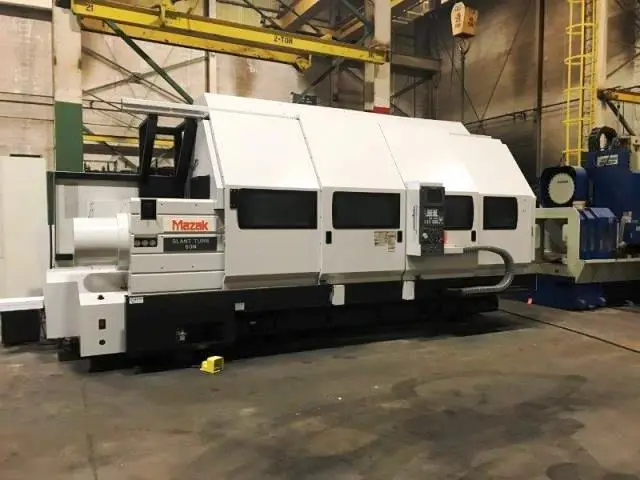

MAZAK SLANT TURN 60NX /3000U

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MAZAK
Model:
SLANT TURN 60NX
Year:
2000
Stock #:
5255
Status:
For Sale
Serial #:
149283

Description

THIS SLANT TURN 60NX HAS A FUSION 640T CONTROL, 122" CENTERS, 18" CHUCK WITH A 6" BAR CAPACITY.

Max. Swing36"914.4 mm
Max Turning Diameter27"685.8 mm
Spindle Bore/Max Bar Capacity6"6"
Z Travel122"3,098.8 mm
X Travel25.4"645.16 mm
Chuck Size18"457.2 mm
Chuck TypeAirAir
Spindle Motor60 hp
Spindle Speeds (RPM)10001000
Spindle Bore10 in
Max. Bar Capacity6"152.4 mm
Turret Tool Positions1010
TailstockYesYes
Chip ConveyorYesYes
ControlCNC (MAZATROL FUSION 640T)CNC (MAZATROL FUSION 640T)

MAZAK SLANT TURN 60NX/3000U
NEW 2000

SPECIFICATIONS:
CHUCK SIZE         18"
SWING              36"
CENTER DISTANCE    122"
BAR CAPACITY       6"
SPINDLE BORE       10"
X AXIS TRAVEL      25.4"
Z AXIS TRAVEL      118"
SPINDLE SPEED      1000 RPM
MAIN MOTOR         60 HORSEPOWER
TURRET CAPACITY    10

EQUIPPED WITH:
MAZATROL PC FUSION 640T
CHIP CONVEYOR
TAILSTOCK
COOLANT SYSTEM
CHUCK INCLUDED
