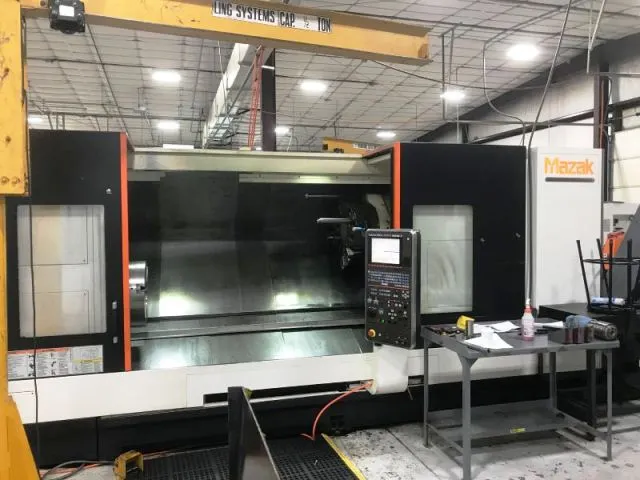

MAZAK SLANT TURN NEXUS 500 /2000 CNC UNIVERSAL TURNING CENTER
Have one to sell?
ConditionUsed
1 available
THIS 2015 STN 500 HAS A MATRIX 2 CONTROL, 18" SCHUNK AIR CHUCK WITH 7.2" SPINDLE BORE, 40" SWING AND 80" CENTERS.
SPECIFICATIONS:
SWING OVER BED 40.9"
TURNING DIAMETER/ SHAFT DIAM 36"
MACHINING LENGTH 86.38"
DISTANCE BETWEEN CENTERS 88"
CHUCK SIZE 18" SCHUNK PNEUMATIC
SPINDLE NOSE A2 - 15
SPINDLE BORE DIAMETER 7.2"
SPINDLE BAR CAPACITY 7.2"
SPINDLE SPEEDS 1600 RPM
GEAR RANGES 2
SPINDLE HORSEPOWER 60 HP
SPINDLE TORQUE 5163 FT. - LBS.
X - AXIS TRAVEL 18.25"
Z - AXIS TRAVEL 89.8"
RAPID TRAVERSE RATES 787 IPM
RAPID TRAVERSE RATES 945 IPM
TURRET CONFIGURATION 24
TAILSTOCK TAPER MT 5
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL 86.75"
MACHINE WEIGHT 41,667 LBS.
MATRIX 2 CNC CONTROL
M-T CONNECT
18" SCHUNK 500-230 AIR CHUCK SYSTEM
ABSOLUTE POSITIONING
ALL AVAILABLE MANUALS
AUTO TOOL LENGTH MEASUREMENT
CHIP CONVEYOR
CHUCK OPEN CLOSE
COMPARISON STOP
EIA HELICAL TAP CYCLE
EIA PATTERN CYCLE
EIA/ISO PROGRAMMING
12.1'' COLOR MONITOR
EXT-DATA I/O
FOOT PEDAL FOR HYDRAULIC OR AIR CHUCK
GEOMETRIC
HIGH PRESSURE COOLANT - 118 PSI
HYD. PRESSURE INTERLOCK INVERSE TIME
NETWORK INTERFACE
PITCH ERROR COMP.
POLAR COORDIANTE INPUT
PROGRAMMABLE TAILSTOCK WITH BUILT IN MT #6
RE-THREAD
ROTATION
SCALING SPIRAL
THREAD CUT SPEED OVERRIDE
THREAD CUTTING FUNCTION
THREAD START POINT COMP.
TILTED WORKING PLANE
VARIABLE 600 SETS
THIS 2015 STN 500 HAS A MATRIX 2 CONTROL, 18" SCHUNK AIR CHUCK WITH 7.2" SPINDLE BORE, 40" SWING AND 80" CENTERS.
Imperial
| Max. Swing | 40.94" |
| Max Turning Diameter | 29.4" |
| Spindle Bore/Max Bar Capacity | 7.2"/ 7.2" |
| Z Travel | 89.8" |
| X Travel | 18.25" |
| Machining Length | 86.38" |
| Distance Between Centers | 88 |
| Chuck Size | 18" |
| Chuck Type | Air |
| Spindle Motor | 60 hp |
| Spindle Speeds (RPM) | 1600 |
| Spindle Bore/Bar Capacity | 7.2 in |
| Max. Bar Capacity | 7.2" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| High Pressure Coolant System | YES |
| Chip Conveyor | Yes |
| Control | CNC (MATRIX 2) |
| Weight | 41,667 LBS |
SPECIFICATIONS:
SWING OVER BED 40.9"
TURNING DIAMETER/ SHAFT DIAM 36"
MACHINING LENGTH 86.38"
DISTANCE BETWEEN CENTERS 88"
CHUCK SIZE 18" SCHUNK PNEUMATIC
SPINDLE NOSE A2 - 15
SPINDLE BORE DIAMETER 7.2"
SPINDLE BAR CAPACITY 7.2"
SPINDLE SPEEDS 1600 RPM
GEAR RANGES 2
SPINDLE HORSEPOWER 60 HP
SPINDLE TORQUE 5163 FT. - LBS.
X - AXIS TRAVEL 18.25"
Z - AXIS TRAVEL 89.8"
RAPID TRAVERSE RATES 787 IPM
RAPID TRAVERSE RATES 945 IPM
TURRET CONFIGURATION 24
TAILSTOCK TAPER MT 5
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL 86.75"
MACHINE WEIGHT 41,667 LBS.
MATRIX 2 CNC CONTROL
M-T CONNECT
18" SCHUNK 500-230 AIR CHUCK SYSTEM
ABSOLUTE POSITIONING
ALL AVAILABLE MANUALS
AUTO TOOL LENGTH MEASUREMENT
CHIP CONVEYOR
CHUCK OPEN CLOSE
COMPARISON STOP
EIA HELICAL TAP CYCLE
EIA PATTERN CYCLE
EIA/ISO PROGRAMMING
12.1'' COLOR MONITOR
EXT-DATA I/O
FOOT PEDAL FOR HYDRAULIC OR AIR CHUCK
GEOMETRIC
HIGH PRESSURE COOLANT - 118 PSI
HYD. PRESSURE INTERLOCK INVERSE TIME
NETWORK INTERFACE
PITCH ERROR COMP.
POLAR COORDIANTE INPUT
PROGRAMMABLE TAILSTOCK WITH BUILT IN MT #6
RE-THREAD
ROTATION
SCALING SPIRAL
THREAD CUT SPEED OVERRIDE
THREAD CUTTING FUNCTION
THREAD START POINT COMP.
TILTED WORKING PLANE
VARIABLE 600 SETS
