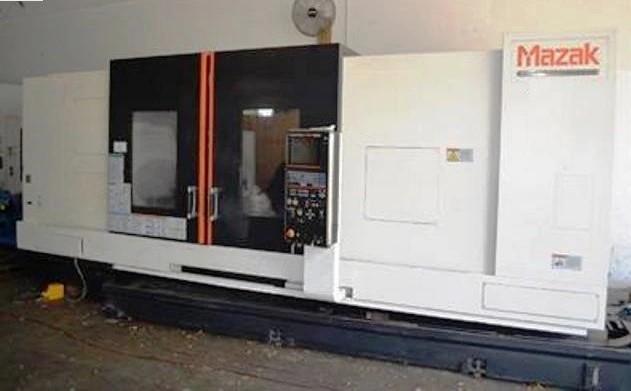

MAZAK SLANT TURN NEXUS 500 /2000 CNC UNIVERSAL TURNING CENTER
Have one to sell?
ConditionUsed
1 available
THIS STN 500 HAS A MATRIX CONTROL, 21" NOBLE 3-JAW MANUAL CHUCK, 7.28" SPINDLE BORE, TAILSTOCK AND 80" CENTERS.
SPECIFICATIONS:
MAXIMUM SWING OVER BED 40.9"
MAXIMUM MACHINING DIA. 36"
SWING OVER THE CARRIAGE 29.4"
MAXIMUM MACHINING LENGTH 86.38"
SPINDLE NOSE A2-15"
SPINDLE BORE MAIN 7.28"
SPINDLE SPEED 1600 RPM
NUMBER OF GEAR RANGES 2
MAXIMUM SPINDLE TORQUE 5163 FT/LBS.
X - AXIS TRAVEL 18.25"
Z - AXIS TRAVEL 89.8"
TURRET POSITIONS 24
TURRET INDEX TIME .5 SEC.
TAILSTOCK TRAVEL BODY 86.75"
RAPID TRAVERSE RATES X, Z 787, 945 IPM
MAIN MOTOR 60 HP
MACHINE WEIGHT 41,667 LBS.
MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
12.1" COLOR MONITOR
M-T CONNECT
185MM (7.28")SPINDLE BORE
21" NOBLE 3 JAW MANUAL CHUCK
ABSOLUTE POSITIONING
AUTO TOOL LENGTH MEASUREMENT
CHIP CONVEYOR CHUCK OPEN CLOSE
COMPARISON STOP EIA HELICAL TAP CYCLE
EIA PATTERN CYCLE
EIA/ISO PROGRAMMING /
EXT-DATA I/O
FOOT PEDAL FOR HYDRAULIC OR AIR CHUCK
GEOMETRIC
HIGH PRESSURE COOLANT
HYD. PRESSURE INTERLOCK INVERSE TIME
NETWORK INTERFACE
PITCH ERROR COMP.
POLAR COORDIANTE INPUT
PROGRAMMABLE TAILSTOCK WITH BUILT IN MT #6
RE-THREAD
ROTATION
SCALING
SPIRAL
THREAD CUT SPEED OVERRIDE
THREAD CUTTING FUNCTION
THREAD START POINT COMP.
TILTED WORKING PLANE
VARIABLE 600 SETS
MULTITAP TRANSFORMER
ALL AVAIABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
