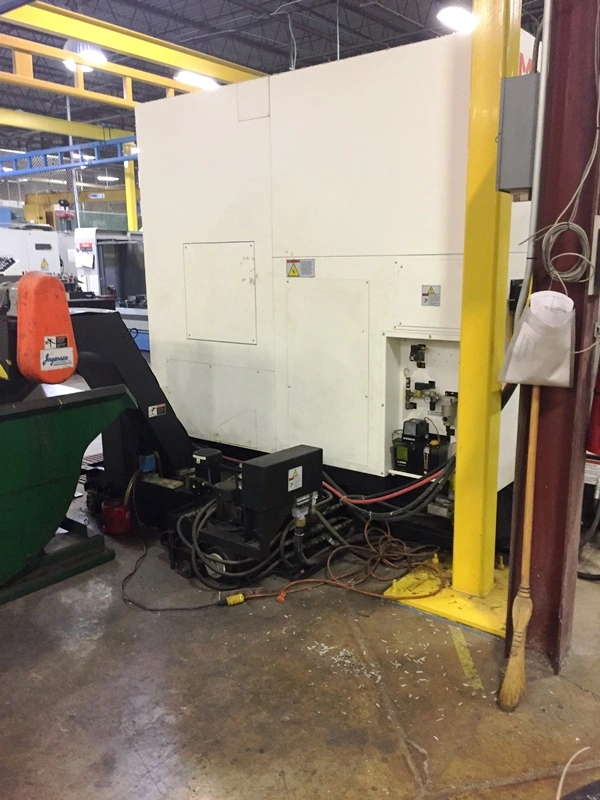

MAZAK SLANT TURN NEXUS 550 /120"

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MAZAK
Model:
SLANT TURN NEXUS 550
Year:
2012
Stock #:
4747
Status:
For Sale
Serial #:
233387

Description

THIS STN 550 HAS A MATRIX NEXUS CONTROL, 120" CENTERS, 24" CHUCK WITH 10.8" BORE, SMW STEADY REST AND 1000 PSI COOLANT THRU.

Max. Swing40.9"1,038.9 mm
Max Turning Diameter29.4"746.76 mm
Spindle Bore/Max Bar Capacity10.78"/ 10.78"10.78"/ 10.78"
Z Travel122"3,098.8 mm
X Travel18.25"463.55 mm
Machining Length80"2,032 mm
Chuck Size24"609.6 mm
Chuck TypeAirAir
Spindle Motor60 hp
Spindle Speeds (RPM)10001000
Spindle Bore10.78 in
Max. Bar Capacity10.78"273.81 mm
Turret Tool Positions1212
TailstockYesYes
High Pressure Coolant System1000 PSI1000 PSI
Chip ConveyorYesYes
Steady RestYesYes
ControlCNC (MAZATROL MATRIX NEXUS)CNC (MAZATROL MATRIX NEXUS)

SPECIFICATIONS:
BAR CAPACITY                 10.78”
SPINDLE BORE                 10.78”
CHUCK SIZE                   24"
DISTANCE BETWEEN CENTERS     120”
MAX. SWING OVER BED          40.94”
MAX. TURNING DIAMETER        36”
SPINDLE NOSE                 A2-20
SPINDLE SPEED                1,000 RPM
SPINDLE MOTOR (CONT/30MINS)  60 HP
NUMBER OF TOOLS              12
X-AXIS                       18.25”
Z-AXIS                       122”

MAZATROL MATRIX NEXUS CONTROL
WINDOWS XP OPERATING SYSTEM
MAZAK SUPER FLOW T8 HIGH PRESSURE
  COOLANT 1000PSI/ 8GPM
PROGRAMMABLE TAILSTOCK (BUILT IN NO. 6)
AUTO POWER OFF/ BREAKER TRIP
AUTOMATIC TOOL EYE FOR 24" CHUCK
BTW 600/275 CHUCK (10.78")
PREP SLU5 SINGLE/AUTO W/FLUSH
SMW K5.1 STEADY REST (3.93"-16.14")
MT CONNECT SOFTWARE
OPERATOR DOOR INTERLOCK
ROLLER GUIDE
CHUCK OPEN/CLOSE CONFIRMATION
ABSOLUTE POSITIONING SYSTEM
THREAD START COMPENSATION
INCH/ METRIC CONVERSION
OVERLOAD DETECTION SYSTEM
CHIP CONVEYOR 3000U/ 120"
ALL AVAILABLE MANUALS
