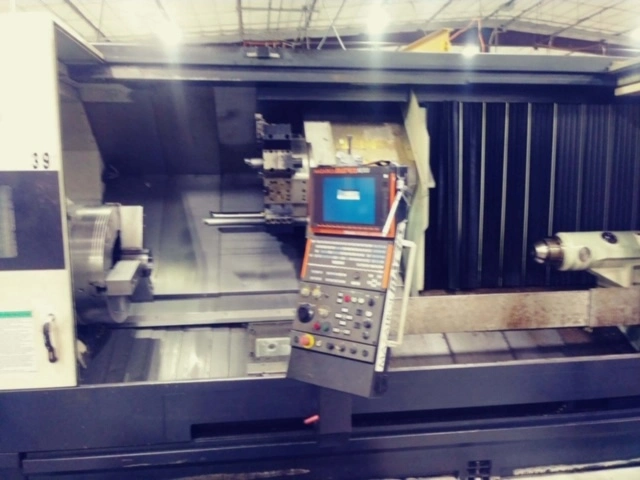

MAZAK SLANT TURN NEXUS 550 /3000 w/ 12.5" BORE
Have one to sell?
ConditionUsed
1 available
THIS STN 550 HAS A MATRIX CONTROL, 120" CENTERS, 24" PNEUMATIC CHUCK WITH 12.6" SPINDLE BORE IN FRONT AND PREPPED FOR A MANUAL REAR CHUCK.
SPECIFICATIONS:
BAR CAPACITY 12.6
SPINDLE BORE 12.6
CHUCK SIZE 24" SCHUNK PNEUMATIC
MACHINING LENGTH 1 23.7"
DISTANCE BETWEEN CENTERS 126.75"
MAX. SWING OVER BED 40.94
MAX. TURNING DIAMETER 36
SPINDLE NOSE A2-20
SPINDLE SPEED 750 RPM
SPINDLE MOTOR (CONT/30MINS)60 HP
NUMBER OF TOOLS 12
GEAR RANGES 2
SPINDLE TORQUE 5163 FT - LBS.
X - AXIS TRAVEL 18.25"
Z - AXIS TRAVEL 129.87"
RAPID TRAVERSE RATES 787, IPM
RAPID TRAVERSE RATES 945 IPM
TAILSTOCK TAPER MT 6
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL 126.75"
MACHINE WEIGHT 42,108 LBS.
MATRIX CNC CONTROL
12.1 COLOR MONITOR
SMW K5. 1 PREP (W/BRACKET AND SHOWER COOLANT)
SCHUNK TB-630-330 PNEUMATIC CHUCK FRONT
REAR MANUAL CHUCK PREP
RE-THREADING
THEAD START POINT
COMPENSATION
INCH/METRIC CONVERSION
TOOL EYE (ARM TYPE AUTO)
SPINDLE BORE DIA 320MM (12.5)
CHIP CONVEYOR FOR 120
COMPARISON STOP
EIA 3D COMP
EIA HELICAL TAP CYCLE
EXIT-DATA I/O
GEOMETRIC
POLAR COODINATES INPUT
SCALING
THREAD CUTTING FUNCTION
THREAD-CUT SPEED OVERRIDE
USER MACRO 600 VARIABLES
EIA/ EIA PATTERN CYCLE
G54.1/ INVERSE TIME FUNCTION
PITCH ERROR COMPENSATION
TILTED WORKING PLANE
ALL AVAIABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
THIS STN 550 HAS A MATRIX CONTROL, 120" CENTERS, 24" PNEUMATIC CHUCK WITH 12.6" SPINDLE BORE IN FRONT AND PREPPED FOR A MANUAL REAR CHUCK.
Imperial
| Max. Swing | 40.9" |
| Max Turning Diameter | 29.4" |
| Spindle Bore/Max Bar Capacity | 12.5"/ 12.5" |
| Z Travel | 129.87" |
| X Travel | 18.25" |
| Machining Length | 80" |
| Distance Between Centers | 126.7 |
| Chuck Size | 24" |
| Chuck Type | Air |
| Spindle Motor | 60 hp |
| Spindle Speeds (RPM) | 750 |
| Spindle Bore/Bar Capacity | 12.5 in |
| Max. Bar Capacity | 12.5" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Control | CNC (MAZATROL MATRIX) |
| Weight | 42,108 LBS |
SPECIFICATIONS:
BAR CAPACITY 12.6
SPINDLE BORE 12.6
CHUCK SIZE 24" SCHUNK PNEUMATIC
MACHINING LENGTH 1 23.7"
DISTANCE BETWEEN CENTERS 126.75"
MAX. SWING OVER BED 40.94
MAX. TURNING DIAMETER 36
SPINDLE NOSE A2-20
SPINDLE SPEED 750 RPM
SPINDLE MOTOR (CONT/30MINS)60 HP
NUMBER OF TOOLS 12
GEAR RANGES 2
SPINDLE TORQUE 5163 FT - LBS.
X - AXIS TRAVEL 18.25"
Z - AXIS TRAVEL 129.87"
RAPID TRAVERSE RATES 787, IPM
RAPID TRAVERSE RATES 945 IPM
TAILSTOCK TAPER MT 6
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL 126.75"
MACHINE WEIGHT 42,108 LBS.
MATRIX CNC CONTROL
12.1 COLOR MONITOR
SMW K5. 1 PREP (W/BRACKET AND SHOWER COOLANT)
SCHUNK TB-630-330 PNEUMATIC CHUCK FRONT
REAR MANUAL CHUCK PREP
RE-THREADING
THEAD START POINT
COMPENSATION
INCH/METRIC CONVERSION
TOOL EYE (ARM TYPE AUTO)
SPINDLE BORE DIA 320MM (12.5)
CHIP CONVEYOR FOR 120
COMPARISON STOP
EIA 3D COMP
EIA HELICAL TAP CYCLE
EXIT-DATA I/O
GEOMETRIC
POLAR COODINATES INPUT
SCALING
THREAD CUTTING FUNCTION
THREAD-CUT SPEED OVERRIDE
USER MACRO 600 VARIABLES
EIA/ EIA PATTERN CYCLE
G54.1/ INVERSE TIME FUNCTION
PITCH ERROR COMPENSATION
TILTED WORKING PLANE
ALL AVAIABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
