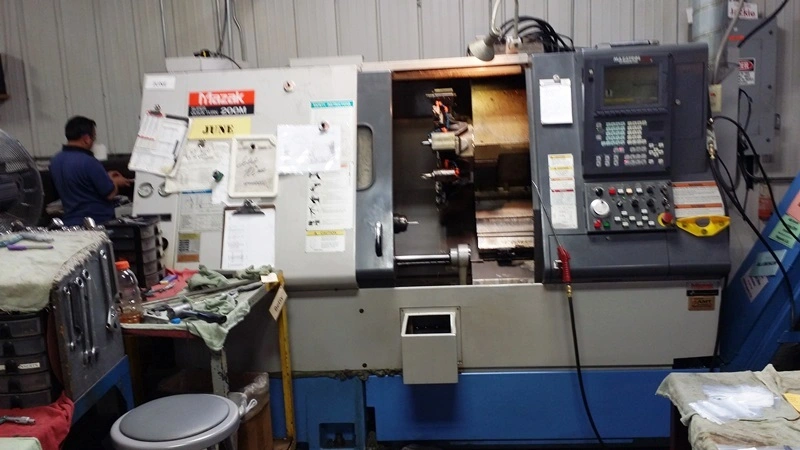

MAZAK SQT 200M
Have one to sell?
ConditionUsed
1 available
NICE LITTLE SQT 200M HAS A FUSION 640 CONTROL, 8' CHUCK, MILLING, PARTS CATCHER AND 3 LIVE TOOLS.
SPECIFICATIONS:
MAX. SWING 20.67 IN
MAX. SWING OVER CARRIAGE 13.8 IN
MAX. MACHINING DIAMETER 11.8 IN
MAX. BAR WORK DIAMETER 2.00 IN
X-AXIS TRAVEL 7.5 IN
Z-AXIS TRAVEL 22.7 IN
SPINDLE SPEED 35 - 5000 RPM
SPINDLE NOSE A2-6
SPINDLE BORE 2.40 IN
TURRET TOOL CAPACITY 12
RAPID TRAVERSE RATE
X & Z AXIS 1181 IPM
C-AXIS 400 RPM
ROTARY TOOL SPEED 4500 RPM
MAIN SPINDLE DRIVE (CONT/ 30 MIN) AC 20/ 25 HP
ROTARY TOOL SPINDLE (10 MIN.) AC 5 HP
FLOOR SPACE REQUIREMENTS 117.5 IN X 67 IN
MACHINE WEIGHT 10,670 LBS.
MAZATROL FUSION 640T CONTROL
8 INCH CHUCK
SYNC TAP
CHIP CONVEYOR
ALL AVAILABLE MANUALS AND TOOLING
NICE LITTLE SQT 200M HAS A FUSION 640 CONTROL, 8' CHUCK, MILLING, PARTS CATCHER AND 3 LIVE TOOLS.
Imperial
| Maximum Swing | 20.67" |
| Max Turning Diameter | 11.8" |
| Main Spindle Bore/Max Bar Capacity | 2.4/ 2.0 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 13.8" |
| X-Axis Travel (X1, X2, X3) | 7.5 |
| Z-Axis Travel (Z1, Z2, Z3) | 22.7 |
| C-Axis Indexing (1, 2) | .001 |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 25/ 20 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 5 |
| Chip Conveyor | Yes |
| Number of Available Live Tool Holders | 3 |
| Control | CNC (MAZATROL FUSION M640T) |
| Dimensions | 117.5" X 67" |
| Weight | 10,670 LBS |
SPECIFICATIONS:
MAX. SWING 20.67 IN
MAX. SWING OVER CARRIAGE 13.8 IN
MAX. MACHINING DIAMETER 11.8 IN
MAX. BAR WORK DIAMETER 2.00 IN
X-AXIS TRAVEL 7.5 IN
Z-AXIS TRAVEL 22.7 IN
SPINDLE SPEED 35 - 5000 RPM
SPINDLE NOSE A2-6
SPINDLE BORE 2.40 IN
TURRET TOOL CAPACITY 12
RAPID TRAVERSE RATE
X & Z AXIS 1181 IPM
C-AXIS 400 RPM
ROTARY TOOL SPEED 4500 RPM
MAIN SPINDLE DRIVE (CONT/ 30 MIN) AC 20/ 25 HP
ROTARY TOOL SPINDLE (10 MIN.) AC 5 HP
FLOOR SPACE REQUIREMENTS 117.5 IN X 67 IN
MACHINE WEIGHT 10,670 LBS.
MAZATROL FUSION 640T CONTROL
8 INCH CHUCK
SYNC TAP
CHIP CONVEYOR
ALL AVAILABLE MANUALS AND TOOLING
