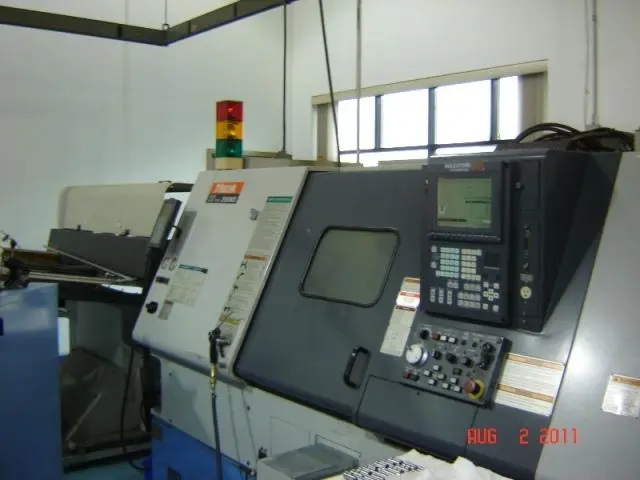

MAZAK SQT 200MS
Have one to sell?
ConditionUsed
1 available
THIS SQT 200 MS HAS A FUSION 640MT CONTROL, LNS QUICKLOAD BARFEEDER, PARTS CATCHER, PARTS CONVEYOR, SEVERAL MILLHEADS AND CHIP CONVEYOR.
SPECIFICATIONS:
MAX. SWING 20.67 IN
MAX. SWING OVER CARRIAGE 13.8 IN
MAX. MACHINING DIAMETER 11.8 IN
MAX. BAR WORK DIAMETER 2.00 IN
X-AXIS TRAVEL 7.5 IN
Z-AXIS TRAVEL 22.7 IN
SPINDLE SPEED 35 - 5000 RPM
SPINDLE NOSE A2-6
SPINDLE BORE 2.40 IN
TURRET TYPE DRUM
TURRET TOOL CAPACITY 12
TOOL SHANK HEIGHT 1 IN
BORING BAR SHANK DIAMETER 1.5 IN
RAPID TRAVERSE RATE
X & Z AXIS 1180 IPM
C-AXIS 400 RPM
SECOND SPINDLE SPEED 4000 RPM
SECOND HEADSTOCK TRAVEL (B-AXIS) 23 IN
SECOND HEADSTOCK RAPID TRAVERSE RATE 709 IPM
ROTARY TOOL SPEED 6000 RPM
MAIN SPINDLE DRIVE (CONT/ 30 MIN) AC 20/ 25 HP
SECOND SPINDLE MOTOR (10 MIN.) AC 10 HP
ROTARY TOOL SPINDLE (10 MIN.) AC 5 HP
MACHINE HEIGHT 78.7 IN
FLOOR SPACE REQUIREMENTS 121 IN X 67 IN
MACHINE WEIGHT 12,100 LBS
MAZATROL FUSION 640MT
LNS QUICKLOAD SERVO BARFEED
PARTS CATCHER
PARTS CONVEYOR
CHIP CONVEYOR
9 Z AXIS MILLHEADS
6 X AXIS MILLHEADS
8 DRILL HEADS
10 TURN/FACING HEADS
ALL AVAILABLE MANUALS
THIS SQT 200 MS HAS A FUSION 640MT CONTROL, LNS QUICKLOAD BARFEEDER, PARTS CATCHER, PARTS CONVEYOR, SEVERAL MILLHEADS AND CHIP CONVEYOR.
Imperial
| Maximum Swing | 20.67" |
| Max Turning Diameter | 11.8" |
| Main Spindle Bore/Max Bar Capacity | 2.4/ 2.0 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 13.8" |
| X-Axis Travel (X1, X2, X3) | 7.5 |
| Z-Axis Travel (Z1, Z2, Z3) | 22.7 |
| C-Axis Indexing (1, 2) | .001 |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 25/ 20 |
| Sub Spindle/2nd Spindle Chuck Size | 0 |
| Sub Spindle/2nd Spindle Bore Size | 2.07 |
| Sub Spindle/2nd Spindle Chuck Type | Collet |
| Sub Spindle/2nd Spindle Speed | 4,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 5 |
| Turret Tool Positions 1, 2 | 12 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Number of Available Live Tool Holders | 5 |
| Control | CNC (MAZATROL FUSION 640MT) |
| Dimensions | 121" X 67" X 78.7" |
| Weight | 12,100 LBS |
SPECIFICATIONS:
MAX. SWING 20.67 IN
MAX. SWING OVER CARRIAGE 13.8 IN
MAX. MACHINING DIAMETER 11.8 IN
MAX. BAR WORK DIAMETER 2.00 IN
X-AXIS TRAVEL 7.5 IN
Z-AXIS TRAVEL 22.7 IN
SPINDLE SPEED 35 - 5000 RPM
SPINDLE NOSE A2-6
SPINDLE BORE 2.40 IN
TURRET TYPE DRUM
TURRET TOOL CAPACITY 12
TOOL SHANK HEIGHT 1 IN
BORING BAR SHANK DIAMETER 1.5 IN
RAPID TRAVERSE RATE
X & Z AXIS 1180 IPM
C-AXIS 400 RPM
SECOND SPINDLE SPEED 4000 RPM
SECOND HEADSTOCK TRAVEL (B-AXIS) 23 IN
SECOND HEADSTOCK RAPID TRAVERSE RATE 709 IPM
ROTARY TOOL SPEED 6000 RPM
MAIN SPINDLE DRIVE (CONT/ 30 MIN) AC 20/ 25 HP
SECOND SPINDLE MOTOR (10 MIN.) AC 10 HP
ROTARY TOOL SPINDLE (10 MIN.) AC 5 HP
MACHINE HEIGHT 78.7 IN
FLOOR SPACE REQUIREMENTS 121 IN X 67 IN
MACHINE WEIGHT 12,100 LBS
MAZATROL FUSION 640MT
LNS QUICKLOAD SERVO BARFEED
PARTS CATCHER
PARTS CONVEYOR
CHIP CONVEYOR
9 Z AXIS MILLHEADS
6 X AXIS MILLHEADS
8 DRILL HEADS
10 TURN/FACING HEADS
ALL AVAILABLE MANUALS
