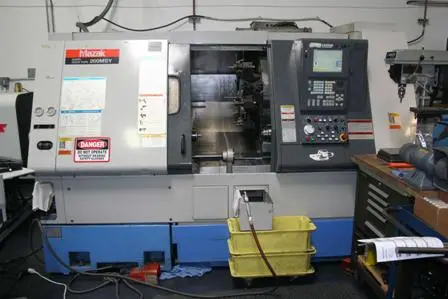

MAZAK SQT 200MSY
Have one to sell?
ConditionUsed
1 available
THIS SQT 200MSY COMES WITH A FUSION 640 CONTROL, 8" & 6" HYDRAULIC CHUCKS, BARFEED INTERFACE, PARTS CATCHER AND 3 MILL HEADS- ALL VERTICAL.
SPECIFICATIONS:
MAXIMUM SWING 20.67"
MAXIMUM CUTTING DIAMETER 11.81”
MAXIMUM BAR WORK DIAMETER 2.0”
DISTANCE BETWEEN STD. CHK JAWS OF MAIN & 2ND SPINDLE 22.63”
SPINDLE NOSE / BORE A2-6 / 2.4”
SPINDLE SPEED / MAIN MOTOR 35-5000RPM/25HP
SPINDLE INDEXING (C-AXIS) .001 DEG. / 360,000 POS.
SPINDLE TORQUE 259 FT-LBS
SECOND SPINDLE NOSE / BORE A2-6 / 1.73”
SECOND SPINDLE SPEED / MOTOR 35 - 5000 RPM / 10HP
SECOND SPINDLE INDEXING 5 DEG./72 POS.
NUMBER OF TOOLS 12 POSITION DRUM
MILL SPINDLE SPEED / MOTOR 25-4500 RPM/5 HP
X-AXIS TRAVEL 7.125”
Y-AXIS TRAVEL 4” +/- 2.0”
Z-AXIS TRAVEL 22.625”
B-AXIS TRAVEL 23.0”
RAPID TRAVERSE RATES (X & Z/Y/C/B) 1181 IPM/472 IPM/ 400 IPM/ 708 IPM
FLOOR SPACE REQUIREMENTS 119” X 70” X 78.7”
WEIGHT 12,350 LBS
MAZATROL FUSION 640
8" FRONT AND 6" BACK
BARFEED INTERFACE
6000 RPM MILL SPINDLE?
CHIP CONVEYOR
MILL SPINDLE SYNC TAP
CHUCK AIRBLAST
TURRET AIRBLAST
AUTO PARTS CATCHER
3 MILL HEADS, ALL VERTICAL
THIS SQT 200MSY COMES WITH A FUSION 640 CONTROL, 8" & 6" HYDRAULIC CHUCKS, BARFEED INTERFACE, PARTS CATCHER AND 3 MILL HEADS- ALL VERTICAL.
Imperial
| Maximum Swing | 20.67" |
| Max Turning Diameter | 11.81" |
| Main Spindle Bore/Max Bar Capacity | 2.4/ 2.0 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Distance Between Spindles | 22.63" |
| X-Axis Travel (X1, X2, X3) | 7.125 |
| Z-Axis Travel (Z1, Z2, Z3) | 22.63 |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 2" |
| C-Axis Indexing (1, 2) | FULL C |
| W-Axis Travel Sub Spindle | 23 in |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 25 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 1.73 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 5 |
| B-Axis Travel | 23 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Number of Available Live Tool Holders | 3 |
| Control | CNC (MAZATROL FUSION 640) |
| Dimensions | 119” X 70” X 78.7” |
| Weight | 12,350 LBS |
SPECIFICATIONS:
MAXIMUM SWING 20.67"
MAXIMUM CUTTING DIAMETER 11.81”
MAXIMUM BAR WORK DIAMETER 2.0”
DISTANCE BETWEEN STD. CHK JAWS OF MAIN & 2ND SPINDLE 22.63”
SPINDLE NOSE / BORE A2-6 / 2.4”
SPINDLE SPEED / MAIN MOTOR 35-5000RPM/25HP
SPINDLE INDEXING (C-AXIS) .001 DEG. / 360,000 POS.
SPINDLE TORQUE 259 FT-LBS
SECOND SPINDLE NOSE / BORE A2-6 / 1.73”
SECOND SPINDLE SPEED / MOTOR 35 - 5000 RPM / 10HP
SECOND SPINDLE INDEXING 5 DEG./72 POS.
NUMBER OF TOOLS 12 POSITION DRUM
MILL SPINDLE SPEED / MOTOR 25-4500 RPM/5 HP
X-AXIS TRAVEL 7.125”
Y-AXIS TRAVEL 4” +/- 2.0”
Z-AXIS TRAVEL 22.625”
B-AXIS TRAVEL 23.0”
RAPID TRAVERSE RATES (X & Z/Y/C/B) 1181 IPM/472 IPM/ 400 IPM/ 708 IPM
FLOOR SPACE REQUIREMENTS 119” X 70” X 78.7”
WEIGHT 12,350 LBS
MAZATROL FUSION 640
8" FRONT AND 6" BACK
BARFEED INTERFACE
6000 RPM MILL SPINDLE?
CHIP CONVEYOR
MILL SPINDLE SYNC TAP
CHUCK AIRBLAST
TURRET AIRBLAST
AUTO PARTS CATCHER
3 MILL HEADS, ALL VERTICAL
