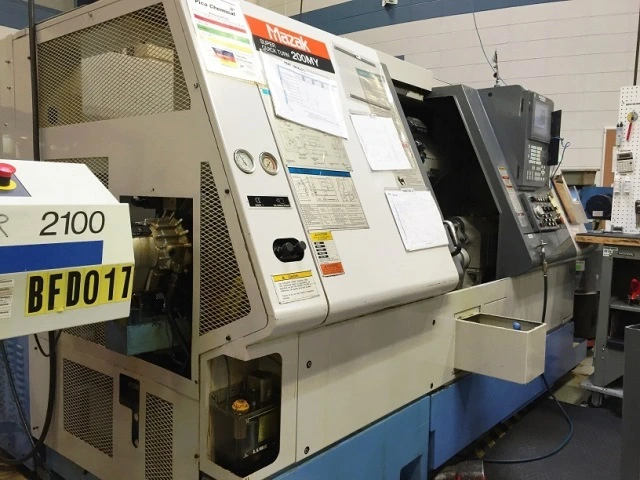

MAZAK SQT 200MY LIVE TOOL Y AXIS CNC LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
SQT 200MY
Year:
2003
Stock #:
4513
Status:
For Sale

Description

THIS SQT 200MY HAS A FUSION 640T, SMW BARFEEDER 2100, PARTS CATCHER TAILSTOCK AND CHIP CONVEYOR.

Maximum Swing20.6"523.24 mm
Max Turning Diameter11.1"281.94 mm
Main Spindle Bore/Max Bar Capacity2.44/ 2.02.44/ 2.0
Tail Stock/Sub SpindleTail StockTail Stock
Maximum Swing Over Cross Slide13.8"350.52 mm
Distance Between Centers21"533.4 mm
Maximum Cutting Length19.5"495.3 mm
X-Axis Travel (X1, X2, X3)7.17.1
Z-Axis Travel (Z1, Z2, Z3)22.622.6
Y-Axis Travel (Y1, Y2, Y3)+/- 2"+/- 2"
C-Axis Indexing (1, 2).001 DEGREE.001 DEGREE
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.44"61.976 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed4,500 RPM4,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)2525
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size1.731.73
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 255
Bar FeedYesYes
Parts CatcherYesYes
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes

SPECIFICATIONS:
MAX SWING                     20.6"
SWING OVER CARRIAGE           13.8"
MAXIMUM MACHINING DIAMETER    11.1"
MAXIMUM MACHINING LENGTH      19.5"
DISTANCE BETWEEN CENTERS      21"
SPINDLE BORE                  2.44"
MAX BAR DIAMETER              2"
X-AXIS                        7.1"
Z-AXIS                        22.6"
Y-AXIS                        3.94"
C-AXIS                        0.001 DEGREE
TURRET POSITIONS              12
STANDARD CHUCK DIAMETER       8"
SPINDLE SPEEDS RANGE          4000 RPM
MAIN MOTOR DRIVE              25 HP
C-AXIS                        400 RPM
ROTARY TOOL:SPEED RANGE       25 TO 4,500 RPM
LIVE TOOL MOTOR               5 HP
APPROXIMATE DIMENSIONS        121" X 71" X 79"
APPROXIMATE WEIGHT            11,250 LBS.

MAZAK MAZATROL PC FUSION 640T CNC CONTROL
SMW SPACE SAVER 2100 BAR FEED (AVAILABLE FOR ADDITIONAL COST)
TOOL EYE / TOOL PRESETTER
PARTS CATCHER
MICROCENTRIC CB65-ND (6000 RPM)
HYDRAULIC PROGRAMMABLE TAILSTOCK
JORGENSEN CHIP CONVEYOR
MISCELLANEOUS LIVE TOOL HOLDERS
