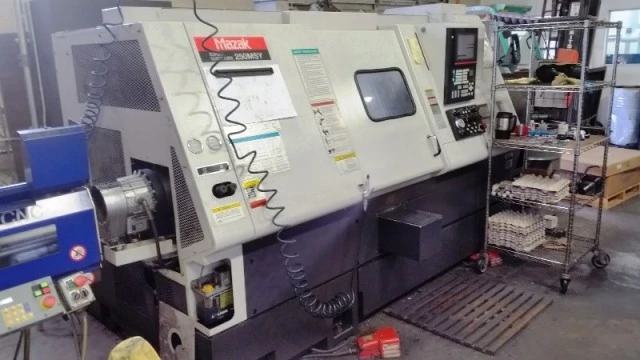

MAZAK SQT 250MSY MULTI-AXIS CNC LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
SQT 250MSY
Year:
2004
Stock #:
4685
Status:
For Sale
Serial #:
171310

Description

THIS SQT 250MSY HAS 10" & 6" HYDRAULIC CHUCKS, AUTOMATIC PARTS CATCHER, IEMCA BARFEEDER, FUSION 640 CONTROL AND 5-6 LIVE TOOLS.

Maximum Swing20.67"525.02 mm
Max Turning Diameter11.81"299.97 mm
Main Spindle Bore/Max Bar Capacity2.99/ 2.52.99/ 2.5
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Swing Over Cross Slide16.54"420.12 mm
Distance Between Spindles22.63"574.8 mm
X-Axis Travel (X1, X2, X3)7.127.12
Z-Axis Travel (Z1, Z2, Z3)22.6322.63
Y-Axis Travel (Y1, Y2, Y3)3.93.9
C-Axis Indexing (1, 2).001.001
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.99"75.946 mm
Main Spindle Maximum Bar Work2.5"63.5 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)25/ 2025/ 20
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size1.731.73
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed5,000 RPM5,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)10/ 7.510/ 7.5
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 255
Parts CatcherYesYes
Chip ConveyorYesYes
ControlCNC (MAZATROL FUSION 640)CNC (MAZATROL FUSION 640)
Dimensions121.3" X 70.4" X 78.7"121.3" X 70.4" X 78.7"
Weight12,760 LBS12,760 LBS

SPECIFICATIONS:
BAR CAPACITY                    2.5"
CHUCK SIZE                      10"
MAX SWING OVER BED              20.67”
SWINT OVER CARRIAGE             16.54"
MAX TURNING DIAMETER            11.81"
DISTANCE BETWEEN SPINDLES       22.63"
SPINDLE MOTOR                   25 / 20 HP
SPINDLE SPEED                   35 - 4000 RPM
SPINDLE BORE                    2.99"
SPINDLE NOSE                    A2-8
SUB SPINDLE CHUCK SIZE          6"
SUB SPINDLE MOTOR               10 / 7.5 HP
SUB SPINDLE SPEED               35 - 5000 RPM
TOOLS                           12
RAPID TRAVERSE RATES            1180 IPM
MILLING MOTOR                   5 HP
MILLING SPEED                   25 - 4500 RPM
X-AXIS TRAVEL                   7.12"
Z-AXIS TRAVEL                   22.63"
Y-AXIS TRAVEL                   3.9"
C-AXIS INDEX                    .001 DEGREE
MACHINE DIMENSIONS (L X W X H)  121.3" X 70.4" X 78.7"
MACHINE WEIGHT                  12,760 LBS.

MAZATROL FUSION 640 CONTROL
AUTOMATIC PARTS CATCHER
BARFEEDER
SUB-SPINDLE
OVERLOAD DETECTION
HI-POWER COOLANT - 50 PSI/ 5.3 GPM
ROTARY TOOL SPINDLE SPEED 6000 RPM
CHIP CONVEYOR - SIDE EXIT
MFG 6/2004
