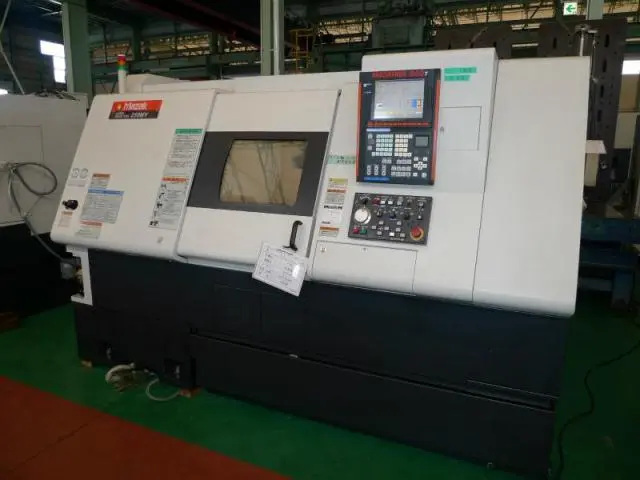

MAZAK SQT 250MY

SPECIFICATIONS:
MAXIMUM SWING 20.67"
MAXIMUM CUTTING DIAMETER 11.81"
MAXIMUM CUTTING LENGHT 19.6"
MAXIMUM BAR DIAMENTER 3"
MAIN SPINDLE:
SPINDLE NOSE A2-8
SPINDLE BORE 3.46"
SPINDLE SPEED 35 ~ 4,000 RPM
SPINDLE INDEXING (C-AXIS) .001 DEG/360,000 POS.
SPINDLE HORSEPOWER (30 MIN) 30 H.P.
SPINDLE TORQUE 259 FT./LBS.
TURRET:
TYPE OF TURRET DODECAGONAL DRUM
TURRET INDEX TIME (SEC.) 0.2/1 0.6/FULL TURN
NUMBER OF TOOLS (ROTARY AVAIL/ALL POS) 12/MODIFIED VDI
TOOL SIZE (TURNING & FACING) 1" SQUARE
TOOL SIZE (BORING BAR MAX. DIA.) 1.5"
MILL SPINDLE:
SPINDLE SPEED 25 ~ 4,500 RPM
SPINDLE HORSEPOWER (10 MIN.) 5 H.P.
MAX. DRILL 3/4"
MAX. END MILL 3/4"
MAX. TAP (MAIN SPINDLE) 1/2 UNC
AXIS:
X-AXIS 7.125"
Y-AXIS 4 +/- 2.0"
Z-AXIS 22.75"
RAPID TRAVERSE X/Z AXIS 1181 IPM
RAPID TRAVERSE Y-AXIS 472 IPM
RAPID TRAVERSE C-AXIS 400 IPM
TAILSTOCK:
TAILSTOCK SPINDLE CENTER M.T. #5
TAILSTOCK SPINDLE DIAMETER 3.13"
TAILSTOCK SPINDLE TRAVEL 5.91"
TAILSTOCK BODY TRAVEL 15.75"
MACHINE:
FLOOR SPACE (L X W X H) 121.3" X 70.4" X 78.7"
TOTAL POWER REQUIRED (MACHINE ONLY) 36.3 KVA
TOTAL WEIGHT 12,100 LBS.
