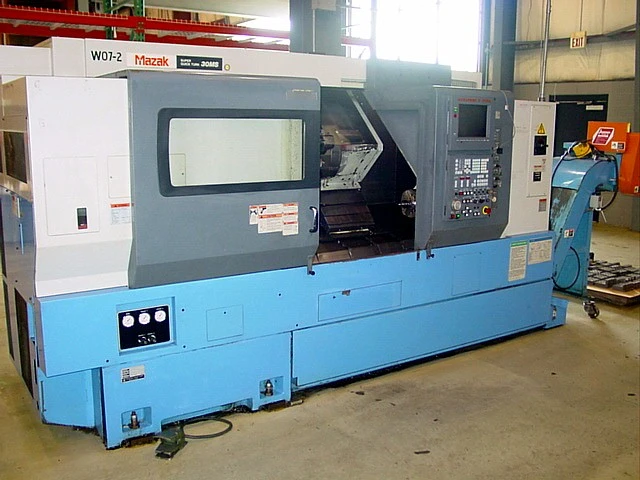

MAZAK SQT 30MS

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
SQT 30MS
Year:
1998
Stock #:
1409
Status:
For Sale

Description

THIS SQT 30MS COMES WITH A 12" & 8" 3-JAW CHUCKS, FULL C-AXIS AND 12 POSIION TURRET.

Maximum Swing22.04"559.82 mm
Max Turning Diameter16.25"412.75 mm
Main Spindle Bore/Max Bar Capacity3.56/ 3.033.56/ 3.03
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Swing Over Cross Slide19.68"499.87 mm
Distance Between Spindles40.4"1,026.2 mm
X-Axis Travel (X1, X2, X3)9.6259.625
Z-Axis Travel (Z1, Z2, Z3)40.7540.75
C-Axis Indexing (1, 2).001.001
Main Spindle Chuck Size12"304.8 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.46"87.884 mm
Main Spindle Maximum Bar Work3.03"76.962 mm
Main Spindle Speed3,000 RPM3,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3535
Sub Spindle/2nd Spindle Chuck Size88
Sub Spindle/2nd Spindle Bore Size2.42.4
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed3,000 RPM3,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)1010
Main & Sub Spindle SynchronizationYesYes
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 215001500
Turret Rotary Tool Horse Power 1, 21010
B-Axis Travel4242
Chip ConveyorYesYes
ControlCNC (MAZATROL T-PLUS)CNC (MAZATROL T-PLUS)
Dimensions160" X 78" X 85"160" X 78" X 85"
Weight15,650 LBS15,650 LBS

SPECIFICATIONS:
MAXIMUM SWING 22.04"
MAXIMUM SWING (OVER CARRIAGE) 19.68"
MAXIMUM CUTTING DIAMETER 16.25"
MAXIMUM BAR DIAMETER 3.03"
MAXIMUM DISTANCE BETWEEN STD. CHUCK JAWS &2ND 40.4"
SPINDLE NOSE A2-8
SPINDLE BORE 3.46"
SPINDLE SPEED 3300 RPM
SPINDLE INDEXING (C AXIS) .001 DEGREE
SPINDLE MOTOR HORSEPOWER (30 MIN.) 35 HP
SUB SPINDLE SPEED 3300 RPM
MAXIMUM SYNCHRONIZED SPEED 3000 RPM
RECOMMENDED SYNCHRONIZED TRANSFER SPEED 300
SPINDLE INDEXING 5 DEGREE/ 72 POS.
SPINDLE MOTOR HORSEPOWER (10 MIN.) 10 HP
TYPE OF TURRET DRUM
TURRET INDEX TIME (SEC.) 0.9 SECONDS 1 POSITION
NUMBER OF TOOLS/TYPE 12
TOOL SIZE (TURNING & FACING) 1"
TOOL SIZE (BORING BAR MAX. DIA.) 2"
MILLING SPINDLE SPEED 1500 RPM
SPINDLE MOTOR HORSEPOWER (10 MIN) 10 HP
X AXIS 9.625"
Z AXIS 40.75"
B AXIS 42" RAPID
TRAVERSE X/Z AXIS 708/944 IPM
RAPID TRAVERSE C AXIS 100 RPM
RAPID TRAVERSE B AXIS 590 IPM
FLOOR SPACE (L X W X H) 160" X 78" X 85"
TOTAL WEIGHT 15,650 LBS

MAZATROL T-PLUS CONTROL
TOOLEYE
12" 3-JAW CHUCK MAIN
8"3-JAW CHUCK SUB
12 POSITION TURRET
FULL C-AXIS
CHIP CONVEYOR
ALL AVAILABLE TOOLHOLDERS
ALL AVAILABLE MANUALS
