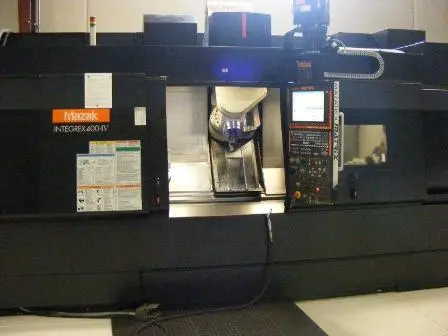

MAZAK INTEGREX 400 IV
Have one to sell?
ConditionUsed
1 available
THIS INTEGREX 400 HAS A MATRIX CONTROL, 60" CENTERS, 12" CHUCK, 4" BAR CAP, 1000 PSI COLANT THRU AND STEADY REST.
SPECIFICATIONS:
STANDARD CHUCK DIAMETER 12"
MAXIMUM SWING 30"
MAXIMUM SWING OVER Y-AXIS 26"-30"
MAXIMUM SWING OVER CROSS SLIDE 30"
MAXIMUM CUTTING DIAMETER 30"
SPINDLE NOSE A2-8
SPINDLE BORE 4.4"
MAXIMUM BAR WORK 4.0"
SPINDLE SPEED/RANGES 3,300 RPM
SPINDLE HORSEPOWER 40 HP (AC)
SPINDLE TORQUE 1,033 FT-LBS
MAGAZINE CAPACITY 40 TOOLS
TOOL SIZE (MAX BORING BAR DIAMETER) 1.5"
ROTARY TOOL SPINDLE SPEED 12,000 RPM
ROTARY TOOL HORSEPOWER 25 HP
AXIS TRAVELS (B) 225°
(Y) +/- 4.53"
(X) 24.8"
(Z) 62.41"
AXIS RAPID RATES (Y) 1024 IPM
(X) 1496 IPM
(Z) 1496 IPM
(C) 555 IPM
(TAILSTOCK) 240 IPM
FLOOR SPACE REQUIRED 193.4"(W) x 92.24"(L) x 114.6"
MACHINE WEIGHT (APPROX) 28,220 LBS
MAZATROL MATRIX CNC CONTROL
C-AXIS
Y-AXIS
MAZAK V8 SUPER-FLOW VARIABLE HIGH PRESSURE COOLANT (1000PSI)
OVERLOAD DETECTION
COOLANT TEMPERATURE CONTROL
MAAZAC 3D HIGH SPEED SOFTWARE PACKAGE
SMW STEADY REST SLU3.1
AUTO POWER OFF
SIGNAL TOWER
PREP FOR MULTI & FLASH TOOL SYSTEM
CAPTO STYLE TOOLING
CHIP CONVEYOR
THIS INTEGREX 400 HAS A MATRIX CONTROL, 60" CENTERS, 12" CHUCK, 4" BAR CAP, 1000 PSI COLANT THRU AND STEADY REST.
Imperial
| Maximum Swing | 30" |
| Max Turning Diameter | 30" |
| Main Spindle Bore/Max Bar Capacity | 4.4/ 4.0 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 30" |
| Maximum Cutting Length | 62.41" |
| X-Axis Travel (X1, X2, X3) | 24.8 |
| Z-Axis Travel (Z1, Z2, Z3) | 62.41 |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 4.53" |
| Main Spindle Chuck Size | 12" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 4.4" |
| Main Spindle Maximum Bar Work | 4" |
| Main Spindle Speed | 3,300 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 |
| ATC Magazine Capacity | 40 |
| B-Axis Head Indexing | 225 deg |
| B Axis Rotary Tool Spindle Speed | 12000 rpm |
| B-Axis Rotary Tool Spindle Horsepower | 25 hp |
| Steady Rest | Yes |
| Chip Conveyor | Yes |
| High Pressure Coolant System (PSI) | 1000 |
| Control | CNC (MAZATROL MATRIX) |
| Dimensions | 193.4" x 92.24" x 114.6" |
| Weight | 28,220 LBS |
SPECIFICATIONS:
STANDARD CHUCK DIAMETER 12"
MAXIMUM SWING 30"
MAXIMUM SWING OVER Y-AXIS 26"-30"
MAXIMUM SWING OVER CROSS SLIDE 30"
MAXIMUM CUTTING DIAMETER 30"
SPINDLE NOSE A2-8
SPINDLE BORE 4.4"
MAXIMUM BAR WORK 4.0"
SPINDLE SPEED/RANGES 3,300 RPM
SPINDLE HORSEPOWER 40 HP (AC)
SPINDLE TORQUE 1,033 FT-LBS
MAGAZINE CAPACITY 40 TOOLS
TOOL SIZE (MAX BORING BAR DIAMETER) 1.5"
ROTARY TOOL SPINDLE SPEED 12,000 RPM
ROTARY TOOL HORSEPOWER 25 HP
AXIS TRAVELS (B) 225°
(Y) +/- 4.53"
(X) 24.8"
(Z) 62.41"
AXIS RAPID RATES (Y) 1024 IPM
(X) 1496 IPM
(Z) 1496 IPM
(C) 555 IPM
(TAILSTOCK) 240 IPM
FLOOR SPACE REQUIRED 193.4"(W) x 92.24"(L) x 114.6"
MACHINE WEIGHT (APPROX) 28,220 LBS
MAZATROL MATRIX CNC CONTROL
C-AXIS
Y-AXIS
MAZAK V8 SUPER-FLOW VARIABLE HIGH PRESSURE COOLANT (1000PSI)
OVERLOAD DETECTION
COOLANT TEMPERATURE CONTROL
MAAZAC 3D HIGH SPEED SOFTWARE PACKAGE
SMW STEADY REST SLU3.1
AUTO POWER OFF
SIGNAL TOWER
PREP FOR MULTI & FLASH TOOL SYSTEM
CAPTO STYLE TOOLING
CHIP CONVEYOR
