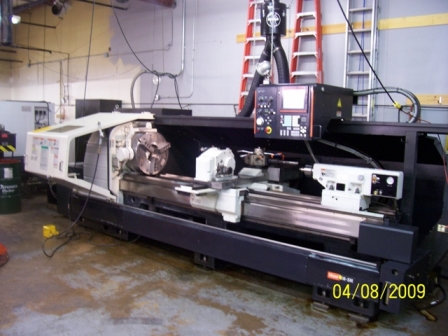

MAZAK M-5N FLAT BED LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MAZAK
Model:
M-5N
Year:
2005
Stock #:
1923
Status:
For Sale
Serial #:
179891

Description

THE M-5 IS A FLATBED DESIGN WITH 100" BETWEEN CENTERS, 22" SMW AIR CHUCK, FULL 7.1" BORE, 2 STEADY RESTS AND A MAZATROL FUSION 640 CONTROL.

Max. Swing24.02"610.11 mm
Max Turning Diameter13.75"349.25 mm
Spindle Bore/Max Bar Capacity7.17.1
Z Travel100"2,540 mm
X Travel21.25"539.75 mm
Machining Length81.89"2,080 mm
Chuck Size22"558.8 mm
Chuck TypeAirAir
Spindle Motor30 hp
Spindle Speeds (RPM)10001000
Spindle Bore7.1 in
Turret Tool Positions88
TailstockYesYes
Chip ConveyorYesYes
Steady RestYesYes
ControlCNC (MAZATROL FUSION 640)CNC (MAZATROL FUSION 640)

SPECIFICATIONS:
MAX. SWING                           24"
MAX. TURNING DIA.                    13 3/4"
MAX SHAFT LENGTH                     100"
CHUCK SIZE                           22"
SPINDLE BORE                         7.1"
SPINDLE SPEEDS                       1000 RPM
NUMBER OF GEAR RANGES                3
TURRET CONFIGURATION                 8 (OCT) 6 (HEX)
X - AXIS                             21.25"
Z - AXIS                             100"
RAPID TRAVERSE
   X - AXIS                          597 IPM
   Z - AXIS                          597 IPM
TAIL STOCK DIA.                      5"
TAIL STOCK STROKE                    3.9"
MAIN MOTOR                           30 HP AC

MAZATROL FUSION 640
7.1 BORE
SMW 22” AIR CHUCK/ 9.06 THRU HOLE
30 HP
100" CENTERS
2 MANUAL STEADY RESTS - 12" & 8" CAPACITY
TURRET CONFIGURATION - 8 (OCT) 6 (HEX)
CHIP CONVEYOR
MANUFACTURED 2005/ INSTALLED JANUARY 2006
