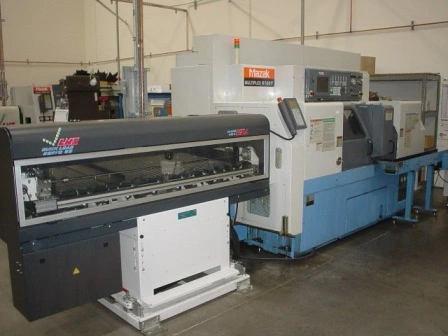

MAZAK MULTIPLEX 6100Y

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
MULTIPLEX 6100Y
Year:
2000
Stock #:
1733
Status:
For Sale

Description

THIS MULTIPLEX 6100Y COMES WITH TWO (2) ATS 3J COLLET CHUCKS, WORKPIECE UNLOAD PACKAGE, FUSION 640 CONTROL, PARTS CONVEYOR, WORK EJECTOR, PARTS CATCHER AND BARFEEDER.

Maximum Swing9.06"230.12 mm
Max Turning Diameter9.06"230.12 mm
Main Spindle Bore/Max Bar Capacity2.4/ 2.02.4/ 2.0
Tail Stock/Sub SpindleN/AN/A
X-Axis Travel (X1, X2, X3)7.87", 7.87"7.87", 7.87"
Z-Axis Travel (Z1, Z2, Z3)14.4", 16.5"14.4", 16.5"
Y-Axis Travel (Y1, Y2, Y3)+/- 1.5"+/- 1.5"
C-Axis Indexing (1, 2).001/ .001.001/ .001
Main Spindle Chuck TypeColletCollet
Main Spindle Bore Diameter2.4"60.96 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed6,000 RPM6,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)1515
Number of Turrets22
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 260006000
Turret Rotary Tool Horse Power 1, 21515
Parts CatcherYesYes
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
Tool Eye Automatic Second SpindleYesYes
Workpiece Unloader & ConveyorYESYES
(Multiplex) Standard Chuck Dia. Main Spindle (R)00
(Multiplex) Standard Chuck Dia. Main Spindle (L)00
ControlCNC (MAZATROL FUSION 640)CNC (MAZATROL FUSION 640)
Weight14,500 LBS14,500 LBS

SPECIFICATIONS:
CHUCK SIZE (2) ATS COLLET 3J
MAX SWING / MAX TURN 9.06” / 9.06”
MAX BAR CAP 2.0”
DIST. BETWEEN CENTERS 40.06”
SPINDLE NOSE / BORE A2.6 / 2.4”
SPINDLE SPEED 6000 RPM
SPINDLE MOTOR 15HP
ROTARY TOOL SPEED 6000 RPM
SPINDLE INDEXING BOTH SIDES .001 DEGREE
X AXIS TRAVEL BOTH TURRETS 7.87”
Y AXIS TRAVEL BOTH TURRETS + / - 1.5”
Z AXIS TRAVEL HEAD 1 / 2 14.4” / 16.5”
TURRET TYPE 2 EACH 12 STATION
RAPID TRAVERSE X, Y, Z 1181 / 590/ 1299 IPM
APPROX WEIGHT 14,500 LBS

MAZATROL FUSION 640
AUTO PECK DRILLING
ATS 3J COLLET NOSES
WORKPIECE UNLOAD PKG
AUTO TOOL EYE BOTH
CHIP CONVEYOR
EIA / ISO INPUT FUNCTION
AUTO PARTS CATCHER
POLYGON TURNING
WORK EJECTOR
CYLINDRICAL INTERPOLOATION
PARTS CONVEYOR
AUTOMATIC PARTITION
BARFEED INTERFACE
PCMCIA INTERFACE
HI PRESSURE COOLANT 250 PSI
IC MEMORY CARD INTERFACE
LOAD DETECTION
SPINDLE AIR BLAST
12 ROTARY TOOLS
LNS SERVOLOAD BARFEED
ALL MANUALS
