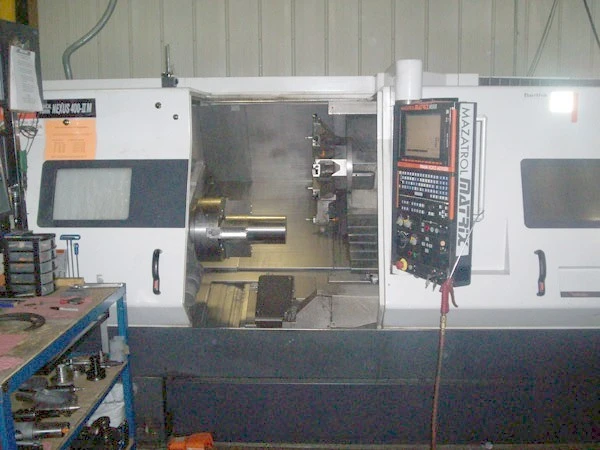

MAZAK QTN 400-II M
Have one to sell?
ConditionUsed
1 available
THIS QTN 400M HAS A MATRIX CONTROL, MILLING, STEADY REST, 213 PSI COOLANT THRU, 80" CENTERS AND 3-4 LIVE TOOLS.
SPECIFICATIONS:
CHUCK SIZE 15"
MAX. SWING 29.5"
SWING OVER CARRIAGE 20.87"
MAX. CUTTING DIAMETER 16.5"
MAX. CUTTING LENGTH 80.6"
SPINDLE NOSE A2-11"
SPINDLE BORE 5.2"
MAX BAR 4.587"
SPINDLE SPEEDS 2500 RPM
SPINDLE TORQUE 1217 FT-LBS.
ROTARY TOOL SPINDLE SPEED 4000 RPM
ROTARY TOOL HORSE POWER 10 HP
TURRET TYPE 12 POSITION
TURRET CLAMPING FORCE 11,700 LBS.
STROKE X AXIS 10.2"
Z AXIS 83.25"
C AXIS 360,000 DEGREEF
RAPID TRAVERSE RATE X , Z 1181 IPM , 1299 IPM
C 555 RPM
TAILSTOCK CONTROL FULLY PROGRAMABLE
TAILSTOCK QUILL DIA. 3.94"
TAILSTOCK CENTER MT # 5
STROKE OF TAIL BODY 73.4"
MAIN MOTOR 50 HP AC
MACHINE WEIGHT 21,417 LBS.
FLOOR SPACE REQUIREMENTS 212" X 90.1"
EQUIPPED WITH:
MAZATROL MATRIX CONTROL
50HP
15" HYDRAULIC CHUCK
STEADY REST
10 HP LIVE TOOLING
213PSI.
RE- THREAD OPTION
CHIP CONVEYOR
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS
THIS QTN 400M HAS A MATRIX CONTROL, MILLING, STEADY REST, 213 PSI COOLANT THRU, 80" CENTERS AND 3-4 LIVE TOOLS.
Imperial
| Max. Swing | 29.5" |
| Max Turning Diameter | 22.835" |
| Spindle Bore/Max Bar Capacity | 5.2"/ 4.587" |
| Z Travel | 83.5" |
| X Travel | 10.2" |
| Machining Length | 80.6" |
| Chuck Size | 15" |
| Chuck Type | Hydraullic |
| Spindle Motor | 50 hp |
| Spindle Speeds (RPM) | 2500 |
| Spindle Bore/Bar Capacity | 5.2 in |
| Max. Bar Capacity | 5.58" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| High Pressure Coolant System | 213 PSI |
| Chip Conveyor | Yes |
| Steady Rest | Yes |
| Control | CNC (MAZATROL MATRIX) |
| Dimensions | 212" X 90.1" |
| Weight | 21,417 LBS |
SPECIFICATIONS:
CHUCK SIZE 15"
MAX. SWING 29.5"
SWING OVER CARRIAGE 20.87"
MAX. CUTTING DIAMETER 16.5"
MAX. CUTTING LENGTH 80.6"
SPINDLE NOSE A2-11"
SPINDLE BORE 5.2"
MAX BAR 4.587"
SPINDLE SPEEDS 2500 RPM
SPINDLE TORQUE 1217 FT-LBS.
ROTARY TOOL SPINDLE SPEED 4000 RPM
ROTARY TOOL HORSE POWER 10 HP
TURRET TYPE 12 POSITION
TURRET CLAMPING FORCE 11,700 LBS.
STROKE X AXIS 10.2"
Z AXIS 83.25"
C AXIS 360,000 DEGREEF
RAPID TRAVERSE RATE X , Z 1181 IPM , 1299 IPM
C 555 RPM
TAILSTOCK CONTROL FULLY PROGRAMABLE
TAILSTOCK QUILL DIA. 3.94"
TAILSTOCK CENTER MT # 5
STROKE OF TAIL BODY 73.4"
MAIN MOTOR 50 HP AC
MACHINE WEIGHT 21,417 LBS.
FLOOR SPACE REQUIREMENTS 212" X 90.1"
EQUIPPED WITH:
MAZATROL MATRIX CONTROL
50HP
15" HYDRAULIC CHUCK
STEADY REST
10 HP LIVE TOOLING
213PSI.
RE- THREAD OPTION
CHIP CONVEYOR
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS
