MAZAK QT 6T
Have one to sell?
ConditionUsed
1 available

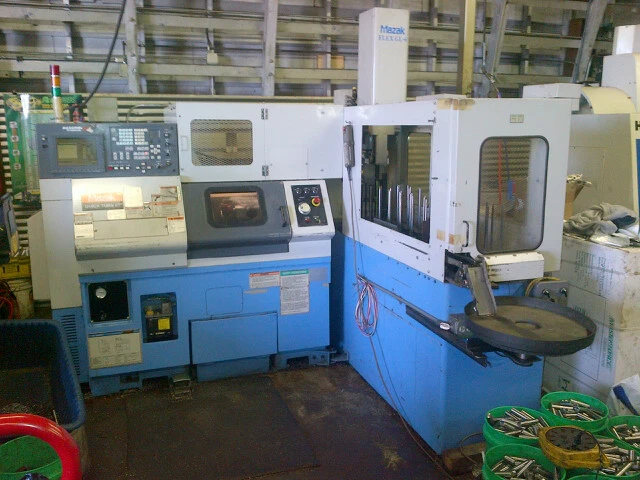

THIS QT 6T HAS A GANTRY ROBOT LOADER WITH 20 PALLET CONVEYOR, FUSION 640 CONTROL, PARTS CONVEYOR AND 5" CHUCK.
SPECIFICATIONS:
MAX. SWING 17.32 IN
MAX. BAR WORK SIZE 1.26 IN
X-AXIS TRAVEL 3.19 IN
Z-AXIS TRAVEL 7.88 IN
SPINDLE SPEED 35 - 7000 RPM
SPINDLE NOSE DIAMETER 4.53 IN
SPINDLE BORE 1.73 IN
TOOL TURRET POSITIONS 12
RAPID TRAVERSE RATE 1181 IPM
JOG FEEDRATE 78.74 IPM
SPINDLE DRIVE MOTOR (CONT/ 30 MIN) AC 5/ 7.5 HP
WEIGHT 3960
MAZATROL FUSION 640
GL 6 AUTOMATIC ROBOT LOADER
FLEX GL-6 GANTRY ROBOT WITH
20 PALLET CONVEYOR 270MM
SPINDLE MOTOR HIGH DUTY
AC7.5KW (10 HP)
DESCRIPTION
OVERLOAD DETECTION SYSTEM
OPERATING CONDITION LIGHTS(3
COLORS)
AIR BLAST THRU THE SPINDLE
SPINDLE CHILLER UNIT
X & Z AXIS BALL SCREW COOLING
SYSTEM (HYDRAULIC CHUCK PKG)
EIA/ISO OPTION PACKAGE
FOR QUICK TURNS
BORING BAR SOCKET 3/8" I.D.
8D/12D
BORING BAR SOCKET 1/2" I.D.
8D/12D
BORING BAR SOCKET 5/8" I.D. 8D/12D
5" THROUGH HOLE CHUCK PKG.
7000 RPM B205
MODIFY LIFTING RODS AND PLATES
SPINDLE ORIENTATION
ADDITIONAL SET ROBOT HAND JAWS
*ALUMINIUM*(GL-6 JAWS ONLY)
FIXTURE FOR MACH. ROBOT JAWS
(FOR USE WITH GL-6 JAWS ONLY)
CHUCK ADAPTER FOR CB42S CHUCK
FOR DISTRIBUTOR SUPPLIED CHUCK
DRAW TUBE FOR CB42S CHUCK
PARTS CONVEYOR
TOOL EYE
BRAND NEW (IN BOX) KITAGAWA CHUCK
ALL TOOLING
ALL GRIPPERS
ALL MANUALS
