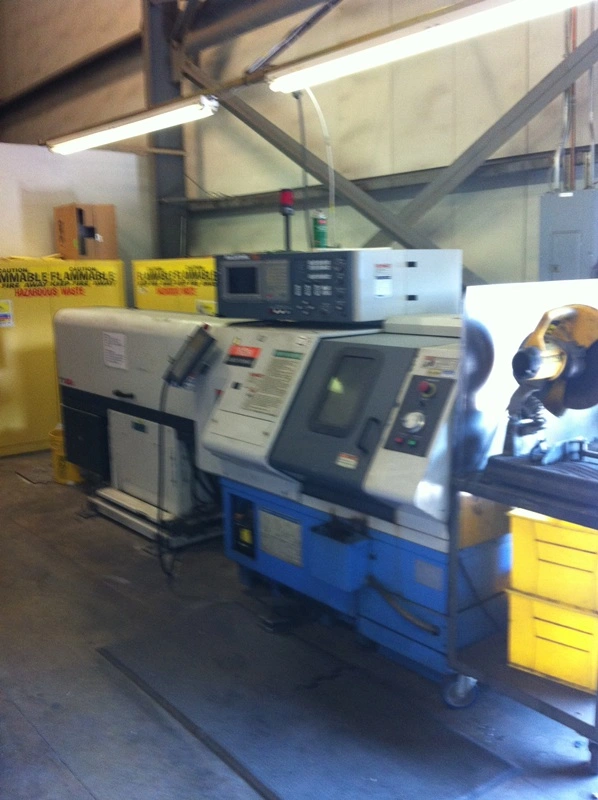

MAZAK QT 6G
Have one to sell?
ConditionUsed
1 available
THIS LITTLE QT 6G HAS A 5" CHUCK WITH A 1.25" BAR CAP, 6 (GANG TYPE) TOOLING, AUTOMATIC PARTS CATCHER, BAR FEEDER AND MAZATROL EIA CONTROL.
SPECIFICATIONS:
CHUCK SIZE 5"
MAX DIAMETER BAR CAPACITY 1.26"
MAX SWING OVER BED / CARRIAGE 18.50"/3.94"
MAX TURNING DIAMETER 3.74"
MAX MACHINING LENGTH 2.36"
MAIN MOTOR 7.5/5 HP
SPINDLE SPEED 35 - 7,000 RPM
TOOLS 6 (GANG TYPE)
SPINDLE BORE 1.73"
SPINDLE NOSE FLAT
RAPID TRAVERSE RATES 787 IPM
X-AXIS TRAVEL 11.81"
Z-AXIS TRAVEL 9.45"
MACHINE DIMENSIONS (L X W X H) 69.5" X 52.2" X 63"
MACHINE WEIGHT 3,970 LBS.
MAZATROL EIA CNC CONTROL
5" 3-JAW HYDRAULIC CHUCK
AUTO PARTS CATCHER
LNS BARFEEDER
SPINDLE REBUILT 2011
THIS LITTLE QT 6G HAS A 5" CHUCK WITH A 1.25" BAR CAP, 6 (GANG TYPE) TOOLING, AUTOMATIC PARTS CATCHER, BAR FEEDER AND MAZATROL EIA CONTROL.
Imperial
| Max. Swing | 18.5" |
| Max Turning Diameter | 3.74" |
| Spindle Bore/Max Bar Capacity | 1.73/1.26 |
| Z Travel | 9.45" |
| X Travel | 11.81" |
| Machining Length | 2.36" |
| Chuck Size | 5" |
| Chuck Type | Hydraullic |
| Spindle Motor | 7.5 hp |
| Spindle Speeds (RPM) | 7000 |
| Spindle Bore/Bar Capacity | 1.73 in |
| Max. Bar Capacity | 1.26" |
| Parts Catcher | Yes |
| Bar Feed | Yes |
| Control | CNC (MAZATROL EIA) |
| Dimensions | 69.5" X 52.2" X 63" |
| Weight | 3970 LBS |
SPECIFICATIONS:
CHUCK SIZE 5"
MAX DIAMETER BAR CAPACITY 1.26"
MAX SWING OVER BED / CARRIAGE 18.50"/3.94"
MAX TURNING DIAMETER 3.74"
MAX MACHINING LENGTH 2.36"
MAIN MOTOR 7.5/5 HP
SPINDLE SPEED 35 - 7,000 RPM
TOOLS 6 (GANG TYPE)
SPINDLE BORE 1.73"
SPINDLE NOSE FLAT
RAPID TRAVERSE RATES 787 IPM
X-AXIS TRAVEL 11.81"
Z-AXIS TRAVEL 9.45"
MACHINE DIMENSIONS (L X W X H) 69.5" X 52.2" X 63"
MACHINE WEIGHT 3,970 LBS.
MAZATROL EIA CNC CONTROL
5" 3-JAW HYDRAULIC CHUCK
AUTO PARTS CATCHER
LNS BARFEEDER
SPINDLE REBUILT 2011
