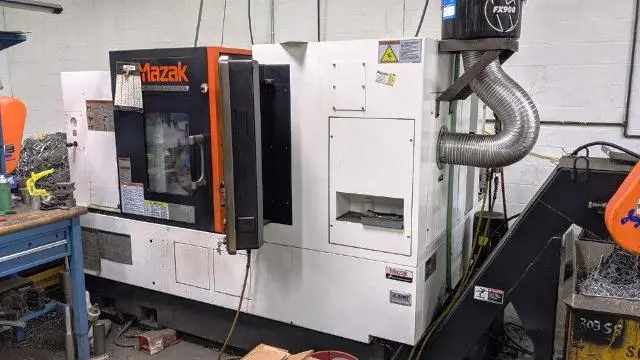

MAZAK QTN 250-II MY

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 250-II MY
Year:
2015
Stock #:
5698
Status:
For Sale
Serial #:
252325

Description

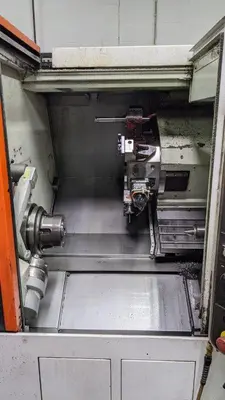

THIS QTN 250MY HAS A MATRIX NEXUS CONTROL, 10" CHUCK WITH 3" THROUGH HOLE, 213 PSI COOLANT THRU, MILLING, Y-AXIS, TAILSTOCK AND LIVE TOOLHOLDERS.

Maximum Swing26.5"673.1 mm
Max Turning Diameter14.75"374.65 mm
Main Spindle Bore/Max Bar Capacity3.58/ 3.033.58/ 3.03
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Cutting Length19.85"504.19 mm
X-Axis Travel (X1, X2, X3)99
Z-Axis Travel (Z1, Z2, Z3)22.7522.75
Y-Axis Travel (Y1, Y2, Y3)+/- 2"+/- 2"
C-Axis Indexing (1, 2)0.0001 DEG.0.0001 DEG.
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.58"90.932 mm
Main Spindle Maximum Bar Work3.03"76.962 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3535
Sub Spindle/2nd Spindle Bore SizeROYAL A2-8 QUICK GRIPROYAL A2-8 QUICK GRIP
Sub Spindle/2nd Spindle Chuck TypeColletCollet
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)1515
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 260006000
Turret Rotary Tool Horse Power 1, 27.57.5
Chip ConveyorYesYes
High Pressure Coolant System (PSI)213213
Number of Available Live Tool Holders33
Multi Tap TransformerYesYes
ControlCNC (MAZATROL MATRIX NEXUS 2)CNC (MAZATROL MATRIX NEXUS 2)
Dimensions110.76" X 75.2"110.76" X 75.2"
Weight11,464 LBS11,464 LBS

SPECIFICATIONS:
MAX. SWING                26.5"
MAX. MACHINING DIAMETER   14.75"
MAX. MACHINING LENGTH     19.858"
SPINDLE SPEED             4000 RPM
SPINDLE NOSE              A2-8
SPINDLE BORE              3.58"
MAX. BAR WORK DIAMETER    3"
TURRET TOOL CAPACITY      12
X-AXIS TRAVEL             9"
Z-AXIS TRAVEL             22.75"
Y-AXIS TRAVEL             2"
C-AXIS INDEXING           0.0001 DEG.
X-AXIS RAPID TRAVERSE     1181 IPM
Z-AXIS RAPID TRAVERSE     1299 IPM
Y-AXIS RAPID TRAVERSE     826.8 IPM
ROTARY TOOL SPEED         6000 RPM OPTION (STD IS 4500)
TAILSTOCK BODY TRAVEL     21.75"
TAILSTOCK CENTER          MT #5
MAIN SPINDLE DRIVE        AC 35 HP
ROTARY TOOL SPNDL/10 MIN  AC 7.5 HP
FLOOR SPACE REQUIREMENTS  110.76" X 75.2"
MACHINE WEIGHT            11,464 LBS.

MAZATROL MATRIX NEXUS II CONTROL
KITAGAWA B-210 CHUCK - 10"
213 PSI HIGH POWER COOLANT, INCLUDES MODIFIED TANK & PUMP
ROTARY-TOOL SPINDLE SPEED INCREASE TO 6000 RPM OPTION (STD. IS 4500 RPM)
MILLING-SPINDLE SYNCHRONOUS TAPPING
C-AXIS 0.0001 DEGREE INCREMENTS
WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
CHUCK OPEN/CLOSE CONFIRMATION
PROGRAMMABLE TAILSTOCK – LIVE CENTER, DEAD QUILL
TAILSTOCK THRUST SELECT – 9 LEVELS
DIGITAL DOCUMENTATION STD MANUAL SET CD-ROM
ROYAL A2-8 QUICK GRIP COLLET CHUCK QG80 –ACCU-LENGTH # 44072
QUICK GRIP COLLET QG80 – 1” ROUND SMOOTH # 44427
ROYAL QUICK GRIP COLLET QG80 – 1 3/8” ROUND SERRATED # 44537
FACE MILL HOLDER, 2" DIA CAPACITY, 3000RPM
TURNING HOLDER (SPINDLE FORWARD), RIGHT
TURNING HOLDER (SPINDLE FORWARD) 53618010100 (RIGHT)
MT CONNECT ADAPTER & SOFTWARE
MULTI-TAP TRANSFORMER
CHIP CONVEYOR SIDE DISPOSAL (HINGE) 500U

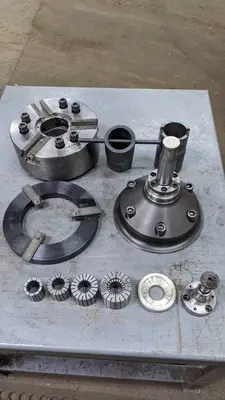

3 LIVE RITEN LIVE TOOLS
TAIKI LOW PROFILE BORING RING
ROYAL INTERNAL CHUCK W/ SHORT AND LONG MANDRELS
APPROX 15 COLLETS & QUICK CHANGE COLLET TOOL
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS
