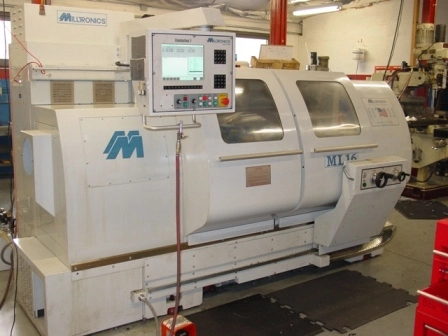

MILLTRONICS ML 1640 TEACH LATHE
Have one to sell?
ConditionUsed
1 available
THE MILLTRONICS ML 1640 TEACH LATHE HAS 44" BETWEEN CENTERS, 8" HYDRAULICK CHUCK, TAILSTOCK, DUAL ELECTRONIC HANDWHEEL FOR TEACH, MANUAL OR AUTOMATIC OPERATION.
SPECIFICATIONS:
SWING OVER BED 17.5”
SWING OVER GAP 25.9”
SWING OVER CROSS SLIDE 7.5”
TRAVEL (CROSS SLIDE) 11”
Z AXIS TRAVEL 44.5”
CENTER DISTANCE 48”
SPINDLE BORE 2.04”
RAPID FEED RATE 500 IPM
SPINDLE SPEED 100-4,000 RPM
MOTOR 18/12 HP
TURRET TYPE PRAGATI BTP63
ATC 8 STATION TURRET (1”)
CENTURION 7T CONVERSATIONAL COLOR GRAPHICS CONTROL
8 HYDRAULIC CHUCK
SOFTWARE PACKAGE A
SPINDLE LOAD METER
RIGID TAP CYCLE
8 MB PROGRAM EXECUTION MEMORY
WITH LARGE PROGRAM MANAGEMENT SOFTWARE
3.5" FLOPPY DRIVE
USER DEFINED MACROS WITH TRIG HELP
PATTERN REPEAT, CHAMFERING, RADIUS PROGRAMMING ASSIST
WITH HANDWHEEL TEACH MODE
CONSTANT SURFACE (RPM CHANGES WITH RADIUS) AND FEED/REV. (IPR)
WITH THREADING CYCLES
CONVENIENCE PACKAGE B
DUAL ELECTRONIC HANDWHEEL FOR TEACH, MANUAL OR AUTOMATIC OPERATION
ADDITIONAL 10 MB PARTS STORAGE MEMORY (12 MB TOTAL)
SINGLE SPARE M FUNCTION AND CNC WAIT CHANNEL
WORK LAMP
