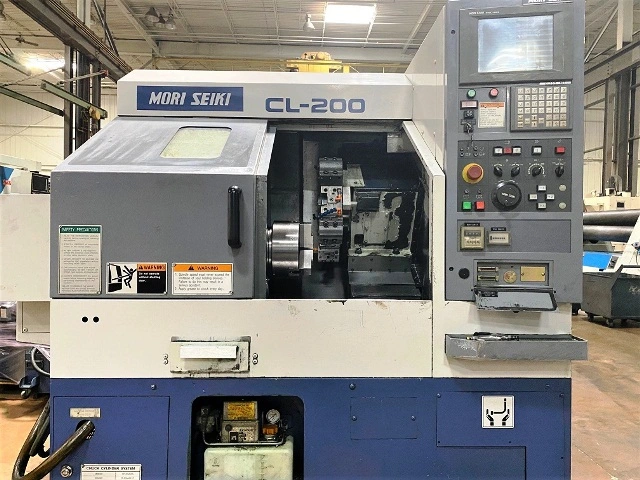

MORI SEIKI CL 200 LATHE

SPECIFICATIONS:
SWING OVER BED                         20.3"
MAXIMUM TURNING DIAMETER               15.7"
STANDARD TURNING DIAMETER              7.8"
MAXIMUM TURNING LENGTH                 10.8"
BAR WORK CAPACITY                      2"
TRAVELS(X,Y)                           9.3", 12.2"
SPINDLE SPEED                          45-4500 RPM
TYPE OF SPINDLE NOSE                   JIS A-6
THROUGH SPINDLE HOLE DIAMETER          2.4"
SPINDLE BEARING INNER DIAMETER         3.9"
NUMBER OF TOOL STATIONS                10
RAPID TRAVERSE RATE (X,Z)              1181 IPM
JOG FEEDRATE (X,Z)                     1 TO 50 IPM
SPINDLE DRIVE MOTOR                    10/7.5HP
ELECTRICAL POWER SUPPLY                28 KVA
COOLANT TANK CAPACITY                  32.5 GAL
MACHINE HEIGHT                         65.6"
FLOOR SPACE                            57.1" X 66.9"
APPROXIMATE WEIGHT                      7,000 LBS.
