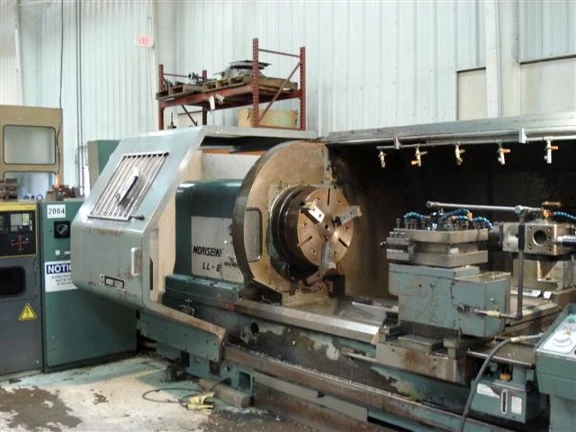

MORI SEIKI LL 8B X 2500 FLATBED LATHE
Have one to sell?
ConditionUsed
1 available
THE MORI SEIKI LL 8B X 2500 FLATBED LATHE SWINGS 50" OVER THE CARRIAGE, 100" CENTERS, 35" 4 JAW CHUCK WITH 10" HOLE AND 25" 3 JAW HYDRAULIC CHUCK PACKAGE AND FANUC 11T CONTROL.
SPECIFICATIONS:
MAX. SWING 51.6"
MAX. SWING OVER THE CARRAGE 50"
MAX. SWING OVER CROSS SLIDE 29.5"
DISTANCED BETWEEN CENTERS 97.3"
SPINDLE BORE DIA. 10.2"
SPINDLE NOSE A1-20"
CHUCK SIZE 34"
SPINDLE SPEEDS 4-550 RPM
SPINDLE GEAR RANGES 4
TURRET CONFIGURATION 4 + 4 FRONT/REAR
X - AXIS TRAVEL 28.1"
Z - AXIS TRAVEL 97.3"
TAILSTOCK QUILL DIAMETER 7.1"
TAILSTOCK QUILL TAPER MT-#6
TAILSTOCK QUILL TRAVEL 7.9"
MAIN MOTOR 60/50 HP AC
MACHINE WEIGHT 35,000 LBS.
FANUC 11T CNC CONTROL
35" 4-JAW CHUCK W/10" HOLE
25" 3-JAW HYDRAULIC CHUCK PACKAGE
FULLY ENCLOSED SPLASH GUARDING
CHIP CONVEYOR SYSTEM
ALL AVAILABLE MANUALS
ALL TOOL HOLDERS
THE MORI SEIKI LL 8B X 2500 FLATBED LATHE SWINGS 50" OVER THE CARRIAGE, 100" CENTERS, 35" 4 JAW CHUCK WITH 10" HOLE AND 25" 3 JAW HYDRAULIC CHUCK PACKAGE AND FANUC 11T CONTROL.
Imperial
| Max. Swing | 51.6" |
| Max Turning Diameter | 50" |
| Spindle Bore/Max Bar Capacity | 10.2 |
| Z Travel | 97.3" |
| X Travel | 28.1" |
| Machining Length | 97.3" |
| Chuck Size | 35" |
| Chuck Type | Manual |
| Spindle Motor | 60 hp |
| Spindle Speeds (RPM) | 550 |
| Spindle Bore/Bar Capacity | 10.2 in |
| Max. Bar Capacity | 10.2" |
| Turret Tool Positions | 8 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Rear Chuck | Yes |
| Rear Chuck Diameter | 25" |
| Rear Chuck Type | Hydraulic |
| Control | CNC (FANUC 11T) |
| Weight | 35,000 LBS |
SPECIFICATIONS:
MAX. SWING 51.6"
MAX. SWING OVER THE CARRAGE 50"
MAX. SWING OVER CROSS SLIDE 29.5"
DISTANCED BETWEEN CENTERS 97.3"
SPINDLE BORE DIA. 10.2"
SPINDLE NOSE A1-20"
CHUCK SIZE 34"
SPINDLE SPEEDS 4-550 RPM
SPINDLE GEAR RANGES 4
TURRET CONFIGURATION 4 + 4 FRONT/REAR
X - AXIS TRAVEL 28.1"
Z - AXIS TRAVEL 97.3"
TAILSTOCK QUILL DIAMETER 7.1"
TAILSTOCK QUILL TAPER MT-#6
TAILSTOCK QUILL TRAVEL 7.9"
MAIN MOTOR 60/50 HP AC
MACHINE WEIGHT 35,000 LBS.
FANUC 11T CNC CONTROL
35" 4-JAW CHUCK W/10" HOLE
25" 3-JAW HYDRAULIC CHUCK PACKAGE
FULLY ENCLOSED SPLASH GUARDING
CHIP CONVEYOR SYSTEM
ALL AVAILABLE MANUALS
ALL TOOL HOLDERS
