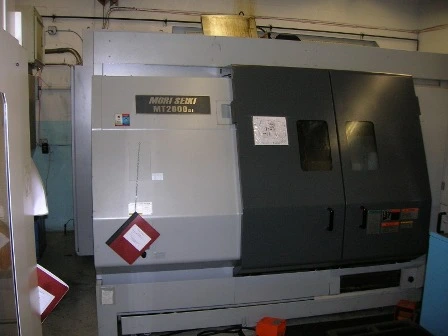

MORI SEIKI MT 2000a1 SZ MULTI AXIS LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MORI SEIKI
Model:
MT 2000a1 SZ
Year:
2005
Stock #:
2657
Status:
For Sale
Serial #:
MT201EC0311

Description

THE MORI SEIKI MT 2000a1 SZ HAS C, Y AND B AXIS MILLING CAPABILITY, S6 & 3J COLLET CHUCKS, A 48 STATION ATC AND 12 POSITION LOWER TURRET AND BARFEED INTERFACE WITH A FANUC MSX 501 CNC CONTROL.

Maximum Swing33.46"849.88 mm
Max Turning Diameter21.6"548.64 mm
Main Spindle Bore/Max Bar Capacity2.9/ 2.62.9/ 2.6
Tail Stock/Sub SpindleSub SpindleSub Spindle
Distance Between Spindles50.4"1,280.2 mm
X-Axis Travel (X1, X2, X3)22.24", 6.1"22.24", 6.1"
Z-Axis Travel (Z1, Z2, Z3)42.4", 42"42.4", 42"
Y-Axis Travel (Y1, Y2, Y3)+/- 3.1"+/- 3.1"
C-Axis Indexing (1, 2).001.001
Main Spindle Chuck TypeColletCollet
Main Spindle Bore Diameter2.9"73.66 mm
Main Spindle Maximum Bar Work2.6"66.04 mm
Main Spindle Speed6,000 RPM6,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)20/1520/15
Sub Spindle/2nd Spindle Bore Size2.52.5
Sub Spindle/2nd Spindle Chuck TypeColletCollet
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)1010
ATC Magazine Capacity4848
Number of Turrets11
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 240004000
Turret Rotary Tool Horse Power 1, 21515
B-Axis Travel120 DEG120 DEG
B-Axis Head Indexing0°0.001 deg
Tool Eye Automatic Front SpindleYesYes
Tool Eye Measurement Lower TurretYesYes
ControlCNC (FANUC MSX 501)CNC (FANUC MSX 501)
Dimensions152"X114"X105"152"X114"X105"
Weight29,200 LBS29,200 LBS

SPECIFICATIONS:
CHUCK SIZE S26/3J CLT CHKS.
MAXIMUM SWING/CUTTING DIAMETER 33.46" / 21.6"
DISTANCE BETWEEN SPINDLE NOSES 50.4"
MAXIMUM TURNING LENGTH 40.1"
X AXIS TRAVEL X1 / X2 22.24" / 6.10"
Y AXIS TRAVEL +/- 3.1"
Z AXIS TRAVEL Z1 / Z2 42.4" / 42"
B AXIS TRAVEL / C AXIS MOVEMENT 120 DEG. / .001 DEG.
SPINDLE NOSE / BORE A2-6" / 2.9"
SPINDLE SPEED 6,000 RPM
SPINDLE HP CONT / 30 MIN 20 HP / 15 HP
SUBSPINDLE NOSE / SUBPINDLE BORE A2-5" / 2.2"
SUBSPINDLE SPEED / MOTOR HP 6,000 / 10 HP
ROTARY TOOL SPINDLE SPEED/MOTOR HP 4,000 RPM / 15 HP
MAGAZINE CAPACITY - CAPTO 48 POSITION ATC
LOWER TURRET 12 STATION
RAPID TRAVERSE RATES X / Z / Y 944/1179/630 IPM
RAPID TRAVERSE C AXIS / B AXIS 300 RPM / 27 RPM
MACHINE DIMENSIONS 152"X114"X105"
MACHINE WEIGHT 29,200 LBS.

FANUC MSX 501 CNC CONTROL
320 METERS
MAPPS PROGRAMMING
POLAR COORDINATE INTERPOLATION
CYLINDRICAL / HELICAL INTERPOLATION
THREAD CUTTING RETRACT
RIGGID TAPPING MILL HEAD
BALANCED CUTTING
SECOND SPINDLE ORIENTATION
CUSTOM MACRO B
INTERFERANCE CHECK FOR THE TURNING AREA AXIS RECOMPOSITION
64 TOOL OFFSETS
48 POSITION ATC
12 STATION LOWER TURRET
8" CHUCK FRONT 6" SUB 3 JAW HYDRAULIC CHUCKS - ??
S 26 COLLET NOSE FRONT SPINDLE ROYAL 3J COLLET ON REAR
C,Y, & B-AXIS MILLING CAPABILITY
TOOL PRESETTER FRONT AND REAR
LOW PRESSURE DETECTING SWITCH
HIGH PRESSURE COOLANT SYSTEM
AUTO POWER OFF
BARFEED INTERFACE
CHIP CONVEYOR / MIST BUSTER AIR FILTRATION
ALL AVAILABLE MANUALS
***1720 CUTTING HOURS****

31 CAPTO HOLDERS
1 HEAVY DUTY TURNING TOOL
1 TURNING TOOL HOLDER
1 SHELL MILL HOLDER
2 EXTENDED LENGTH HOLDERS (ER32)
2 CAPTO EXTENSIONS (4")
THE BALANCE ARE STANDARD ER COLLET STYLE TOOL HOLDERS
