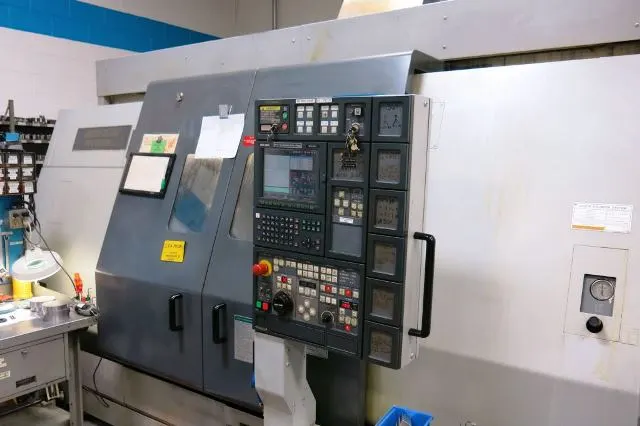

MORI SEIKI MT 2000a1S MULTI AXIS LATHE
Have one to sell?
ConditionUsed
1 available
THE MORI SEIKI MT 2000a1S MULTITASKING LATHE HAS (2) KITAGAWA 8" CHUCKS, PARTS CATCHER, LIVE HOLDERS AND CAPTO TOOLING AND 120 ATC.
SPECIFICATIONS:
MAIN SPINDLE SPEED 4500 RPM
SUB SPINDLE SPEED 6000 RPM
B-AXIS SPINDLE SPEED 6000 RPM
MAX. DISTANCE BETWEEN CENTERS 50.5"
MAX. WORKPIECE SWING 33.4"
MAX. TURNING DIAMETER 21.6"
MAIN SPINDLE MOTOR 30/20 HP
SUB SPINDLE MOTOR 30/20 HP
ROTARY TOOL DRIVE 10/2HP
B-AXIS ROTATION +/- 120 DEGREE
BAR CAPACITY ON MAIN SPINDLE 2.5" BAR DIAMETER
MAIN SPINDLE A2-6
SUB SPINDLE A2-5
TOOLING TYPE FOR B-AXIS COROMANT CAPTO C6 TOOL
TOOL CAPACITY FOR B-AXIS 120 TOOL CAPACITY
NUMBER STATIONSTURRET CAPACITY MULTITASKING MILL/TURN HEAD
MACHINE WEIGHT 26400LB
MORI SEIKI (FANUC) MSC 501CONVERSATIONAL CONTROL
TOOL PRESETTER'S FOR BOTH SPINDLES
KITAGAWA 8 3-JAW CHUCKS
CHIP CONVEYOR
PARTS CATCHING SYSTEM
TOOLING INCLUDING LIVE HOLDERS/
CAPTO TOOLING/ ALL AVAILABLE MANUALS
THE MORI SEIKI MT 2000a1S MULTITASKING LATHE HAS (2) KITAGAWA 8" CHUCKS, PARTS CATCHER, LIVE HOLDERS AND CAPTO TOOLING AND 120 ATC.
Imperial
| Maximum Swing | 33.4" |
| Max Turning Diameter | 21.6" |
| Main Spindle Bore/Max Bar Capacity | 2.99/ 2.5 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Distance Between Centers | 50.5" |
| Maximum Cutting Length | 50.5" |
| Z-Axis Travel (Z1, Z2, Z3) | 50.5 |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.99" |
| Main Spindle Maximum Bar Work | 2.5" |
| Main Spindle Speed | 4,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30/20 HP |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.99 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 30/20 HP |
| ATC Magazine Capacity | 120 |
| B-Axis Travel | +/- 120 DEGREE |
| B-Axis Milling Spindle Speed | 6000 rpm |
| B-Axis Milling Spindle Horse Power | 0 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| (HQR) Standard Chuck Dia. Main Spindle (L) | 8" |
| Control | CNC (MORI SEIKI (FANUC) MSC 501) |
| Weight | 26,400 |
SPECIFICATIONS:
MAIN SPINDLE SPEED 4500 RPM
SUB SPINDLE SPEED 6000 RPM
B-AXIS SPINDLE SPEED 6000 RPM
MAX. DISTANCE BETWEEN CENTERS 50.5"
MAX. WORKPIECE SWING 33.4"
MAX. TURNING DIAMETER 21.6"
MAIN SPINDLE MOTOR 30/20 HP
SUB SPINDLE MOTOR 30/20 HP
ROTARY TOOL DRIVE 10/2HP
B-AXIS ROTATION +/- 120 DEGREE
BAR CAPACITY ON MAIN SPINDLE 2.5" BAR DIAMETER
MAIN SPINDLE A2-6
SUB SPINDLE A2-5
TOOLING TYPE FOR B-AXIS COROMANT CAPTO C6 TOOL
TOOL CAPACITY FOR B-AXIS 120 TOOL CAPACITY
NUMBER STATIONSTURRET CAPACITY MULTITASKING MILL/TURN HEAD
MACHINE WEIGHT 26400LB
MORI SEIKI (FANUC) MSC 501CONVERSATIONAL CONTROL
TOOL PRESETTER'S FOR BOTH SPINDLES
KITAGAWA 8 3-JAW CHUCKS
CHIP CONVEYOR
PARTS CATCHING SYSTEM
TOOLING INCLUDING LIVE HOLDERS/
CAPTO TOOLING/ ALL AVAILABLE MANUALS
