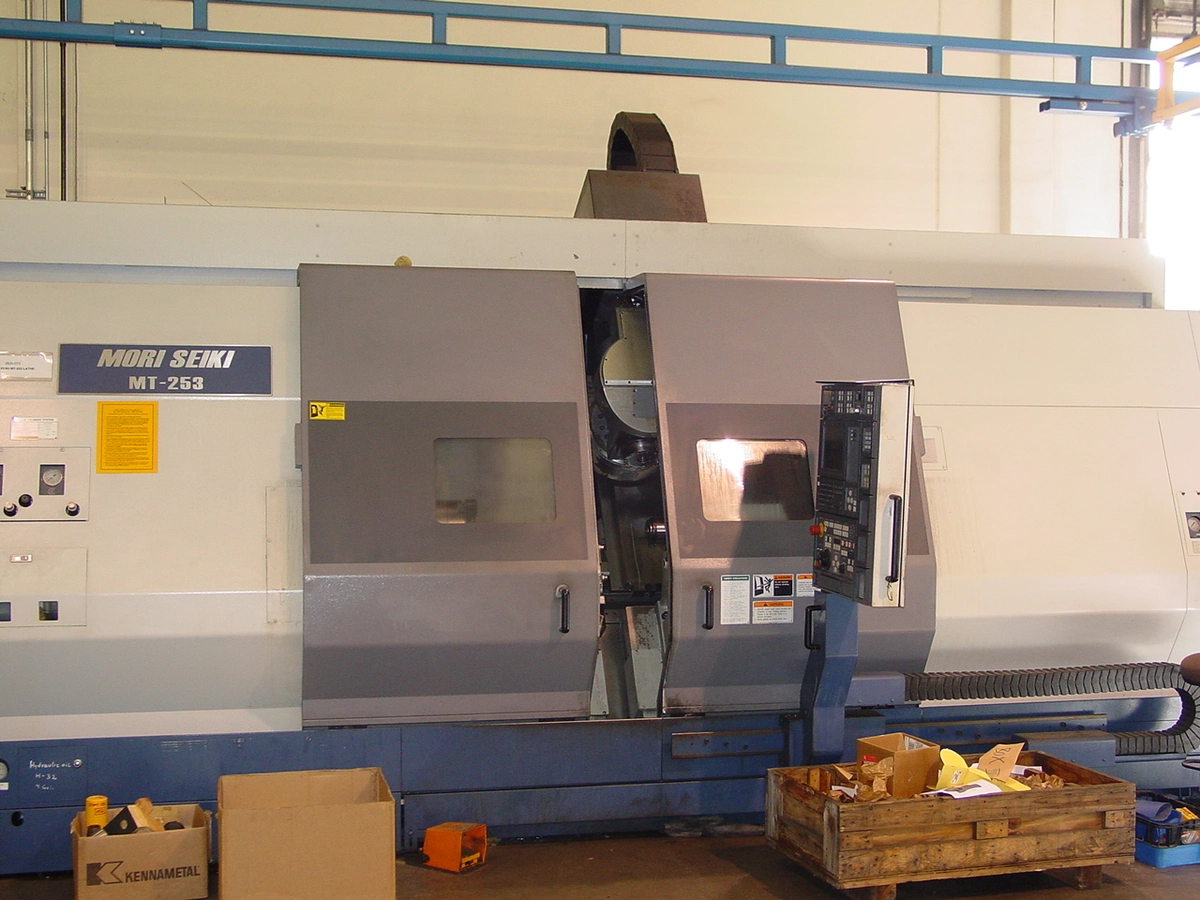

MORI SEIKI MT-253/1500 5-AXIS TURNING AND MILLING CENTER

SPECIFICATIONS:
SWING OVER BED 31.5"
SWING OVER CROSS-SLIDE 16.5" - 33.9"
MAX. TURNING DIAMETER 22.4"
MAX. TURNING LENGTH 60.2"
X-AXIS TRAVEL 25"
Z-AXIS TRAVEL 60.2"
Y-AXIS TRAVEL +/- 4.3"
B-AXIS MIN. INDEX ANGLE/INDEX RANGE -120 DEGREE - 105 DEGREE
C-AXIS .001 DEG.
BAR WORK CAPACITY 3"
SPINDLE NOSE A2-8"
HOLE THROUGH SPINDLE 3.46"
SPINDLE SPEEDS 35-3500 RPM
RAPID TRAVERSE RATE X,Y,Z /C 472 / 100 REV / MIN.
FEEDRATE X,Y,Z .001-500
JOG FEEDRATE 0-50 IPM
NUMBER OR TOOL CHAMGERS 60
TURRET INDEXING TIME 1.6 SECS.
MAIN MOTOR 30 HP AC
ROTARY TOOL SPINDLE SPEED 8000 RPM
ROTARY TOOL MAGAZINE 60 ATC
ROTARY TOOL HORSEPOWER 15 HP AC
TAILSTOCK TRAVEL 57.7"
TAILSTOCK SPINDLE DIA. 4.3"
TAILSTOCK SPINDLE TRAVEL 4.7"
TAILSTOCK TAPER MT-4
MACHINE WEIGHT 34,280 LBS.
