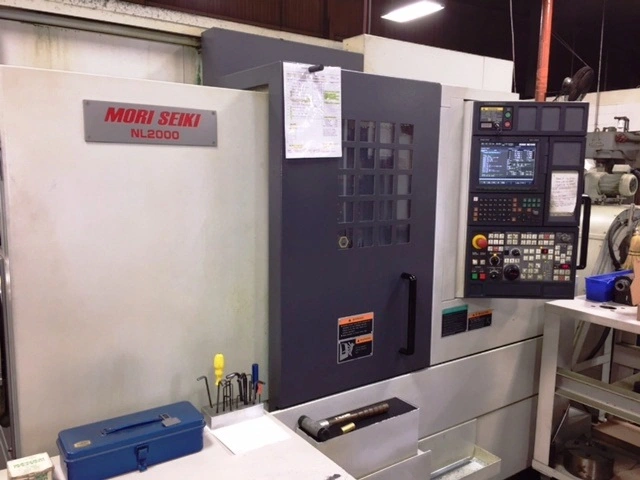

MORI SEIKI NL 2000MC-500 MULTI AXIS LATHER

SPECIFICATIONS:
SWING / SWING OVER CROSS SLIDE                        36.4" / 29.7"
MAXIMUM TURNING DIAMETER / MAXIMUM TURNING LENGTH     14" / 20"
DISTANCE BETWEEN CENTERS                              24"
SPINDLE SPEEDS MINIMUM – MAXIMUM                      50 - 5,000 RPM
SPINDLE BORE / BAR CAPACITY / NOSE                    2.9" / 2.5" / A2-6
MAIN MOTOR (30 MIN / CONTINUOUS)                      25 / 20 HP
TURRET-NUMBER OF POSITIONS                            12 STATIONS
X-AXIS TRAVEL                                         10.2"
Z-AXIS TRAVEL                                         23.2"
ROTARY TOOL SPEED                                     60 - 6,000 RPM
ROTARY TOOL MOTOR (30 MIN. / CONTINUOUS)              7.5 / 5 HP
TAILSTOCK-STROKE OF BODY / QUILL                      22.2" / 3.1"
QUILL DIAMETER / TAPER                                3.1" / MT #4
RAPID TRAVERSE (X & Z )                               1,181 IPM
FLOOR SPACE (L X W X H)                               140" X 75" X 84"
WEIGHT (APPROX.)                                      13,000 LBS
